Pellerin Milnor Corporation 89

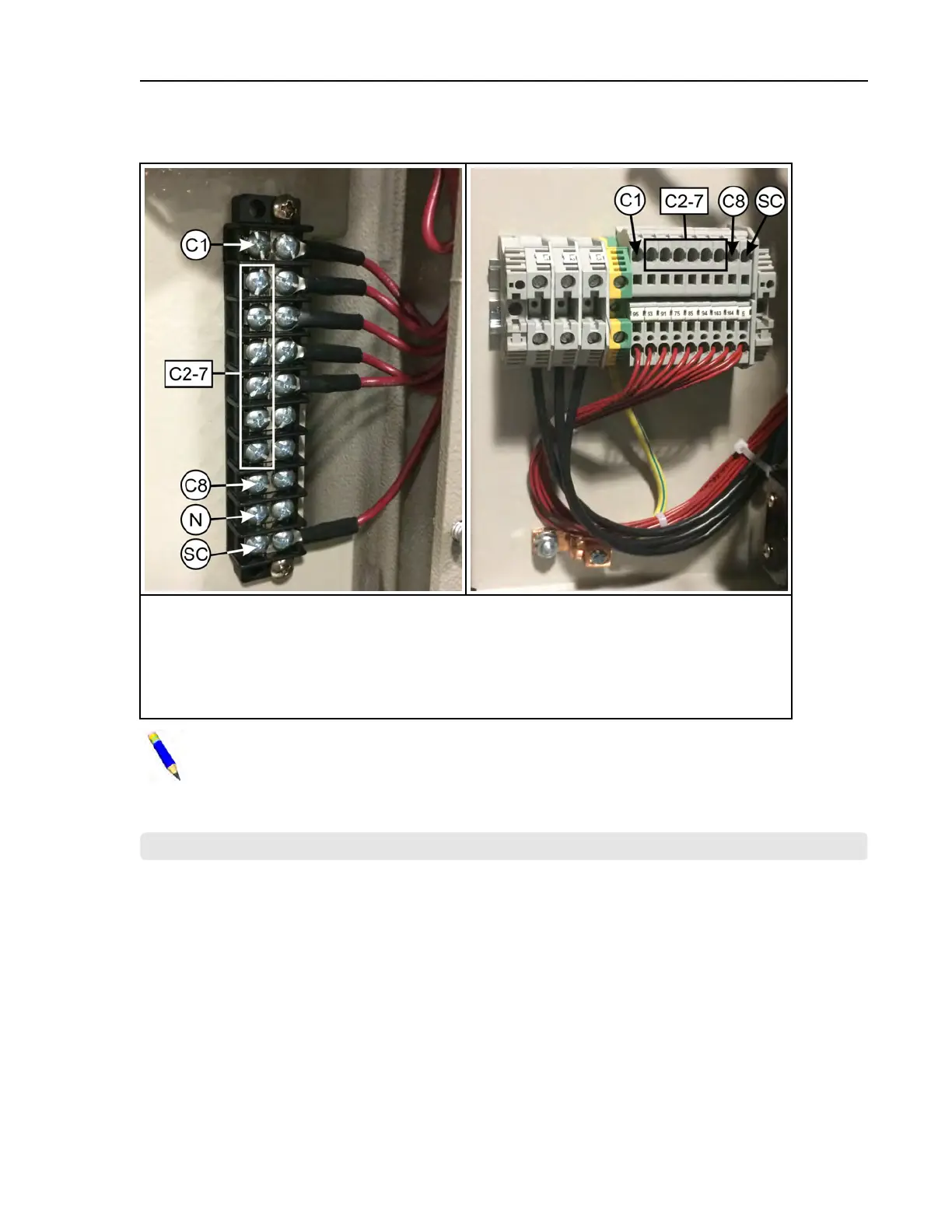

Figure 43. Types of Pre-Wired Chemical Supply Terminal Blocks
Legend
C1. . . Chemical #1
C2–7. . . Chemical #2–7 connection points
C8. . . Chemical #8
N...Not used
SC. . . Supply common
NOTE: On some models, only chemicals 1 through 5 are pre-wired between the termi-
nal block and the Input/Output board. On these models, inputs are available for chemicals
6, 7, and 8, but are not pre-wired.
BNCLDT05 / 2020465
BNCLDT05 0000277549 A.3 11/12/20 1:48 PM Released
4.10 Troubleshooting Examples
BNCLUT02.C08 0000206333 E.2 A.3 C.3 1/2/20 1:22 PM Released
The following examples illustrate how to use the troubleshooting tools.
4.10.1 Example: The machine will not extract.
BNCLDT01.T01 0000248308 E.2 A.3 A.6 1/2/20 1:22 PM Released
The machine will not accelerate to extract speed and the “Recycling” messages (Recycle Coast,
Recycle CCW, etc.) persist on the Run display until the controller displays the error “Too Many
Recycles.”
1. You look for mechanical causes and find none. Examples of mechanical causes: the machine
was under-loaded and the goods cannot distribute evenly around the cylinder, anchor bolts
Troubleshooting
