A5/A3™ Operating Instructions
046-003777-00
7 - 13
Maintenance
Cleaning an
d Disinfec
tion

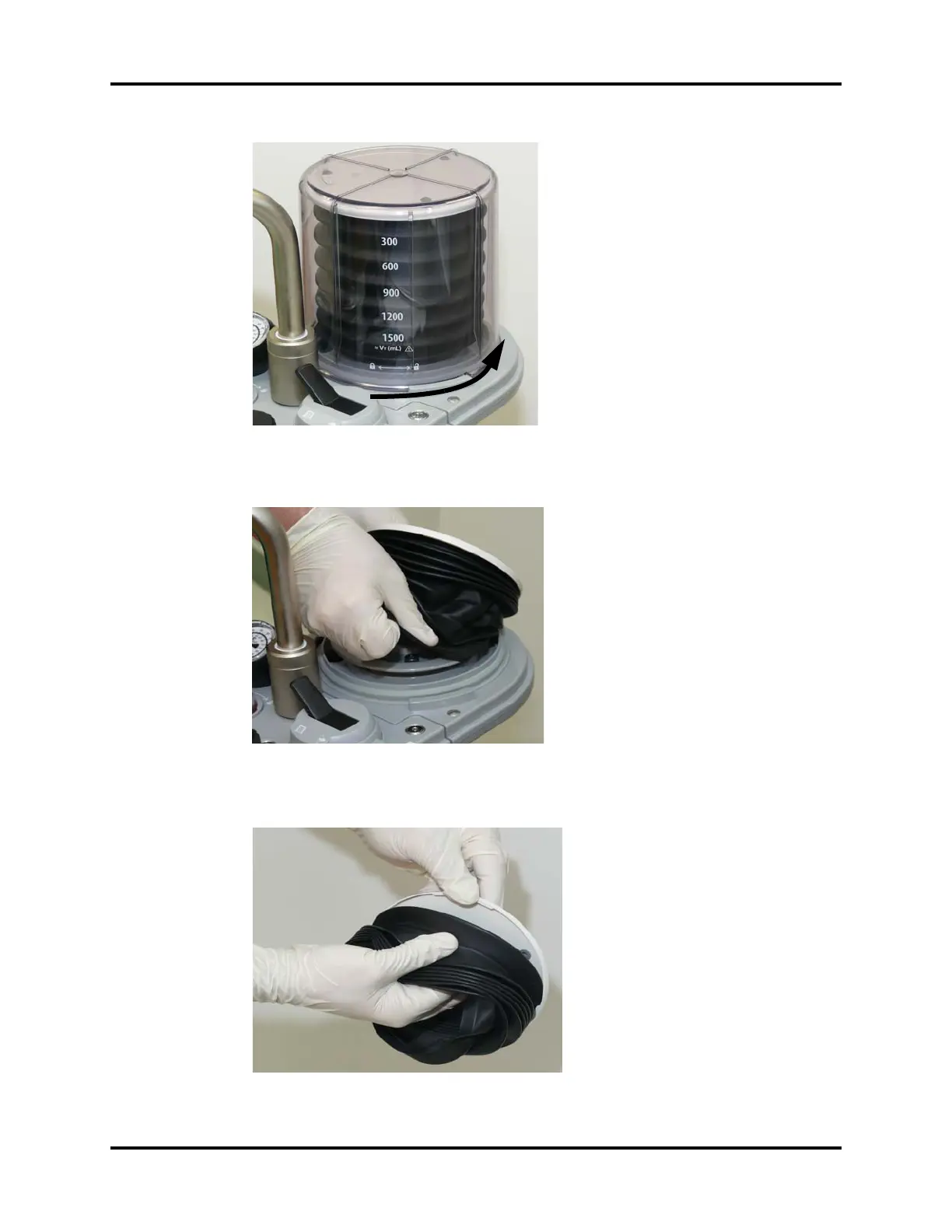

FIGURE 7-5
R
emoving the Bellows Dome
2.
Detach the bellows fr
om the base plate (see
FIGURE
7-6
).
FIGURE 7-6
Detaching the Bellows
3.
Detach the top plate fr
om the bellows (see
FIGURE
7-7
).
FIGURE 7-7
Detaching the Be
llows
T
op Plate
202
204
