MINICAM PROTEUS - CRP90 Connections and Descriptions

To Next Page

To Previous Page

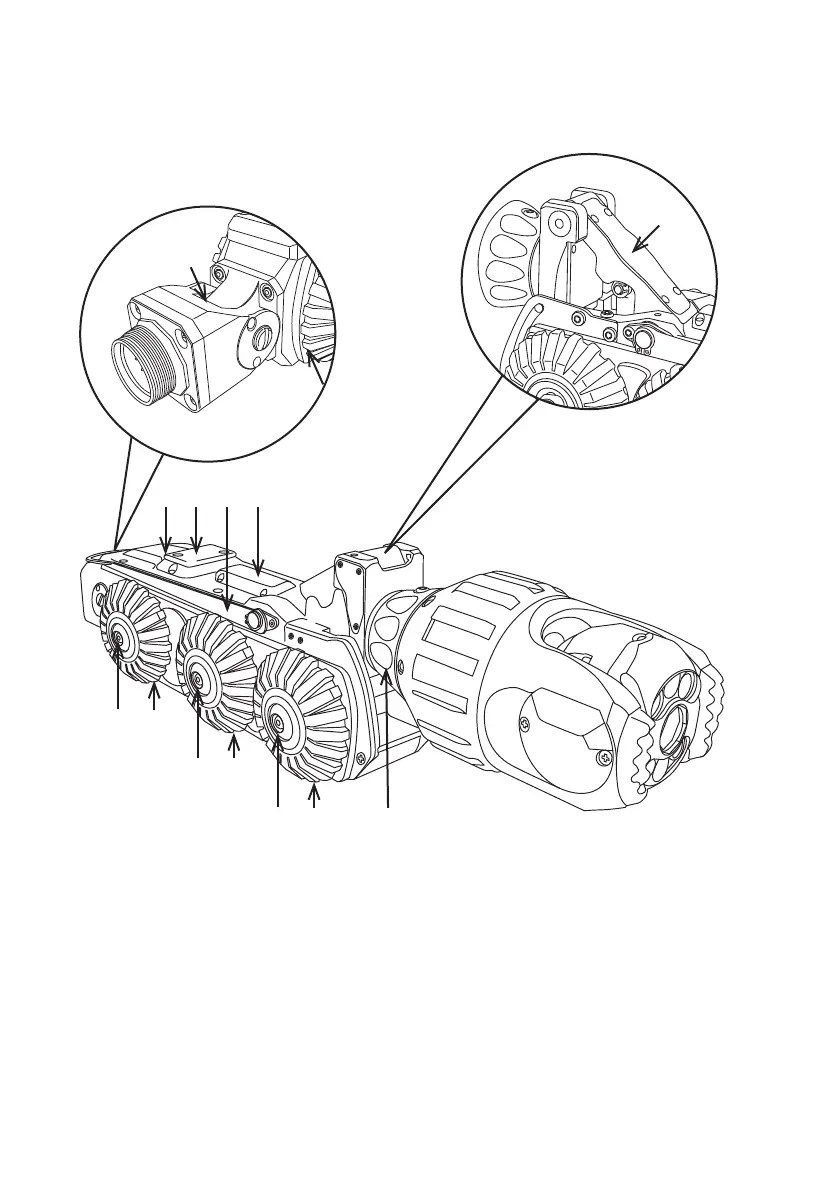

A Flexible rear connector

B Pressurisation Point

C Motorised elevation arm

D Serial number location

E Connection point for the auxiliary module

F Lowering device

G Sonde

H Connector for the camera

J Crawler wheel

K Quick release mechanism
