LED Flash once, the MCR is starting up, or the
MCR
is not communicating with the CCU.
LED
on MCR
Body
LED
on MCR
Stop Button
Status LED

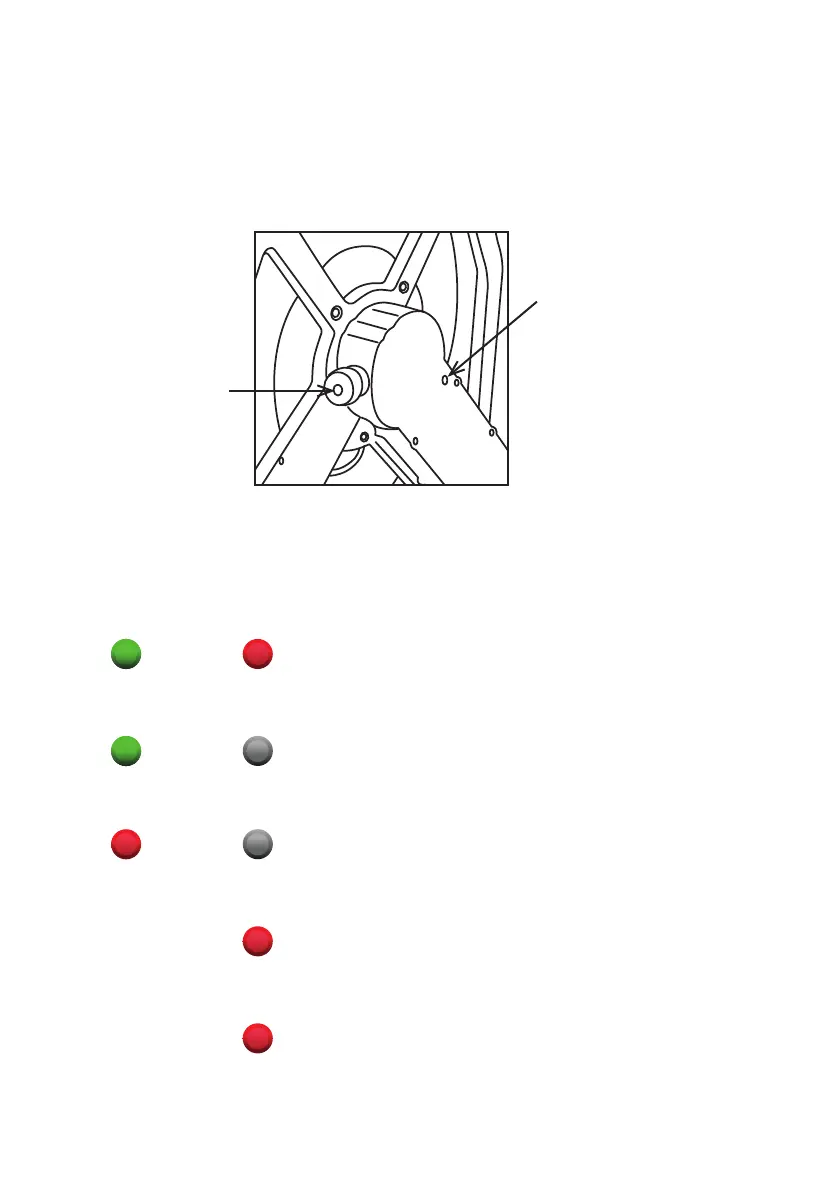

The motorised cable reel has two LEDs to show status
1 Status LED on emergency stop button.
2 Status LED on motorised cable reel body.
Flashing LED, normal operation, the MCR is
communicating with the CCU.
F
lashing LED, the MCR Stop button has been
activated.
See “Cable Reel Emergency Stop But-
ton” on page 88
Solid LED, the MCR Stop button was activated,
and
the CCU needs to reset it. See “Cable Reel
Emergency Stop Button” on page 88.
Flashing LED, the MCR has stopped because
the cable is tangled or blocked. See “Cable Reel
Blocked” on page 91.
1
2
82
