MINICAM PROTEUS - Cam027 - Axial Camera; Connections and Descriptions

Connections and Descriptions

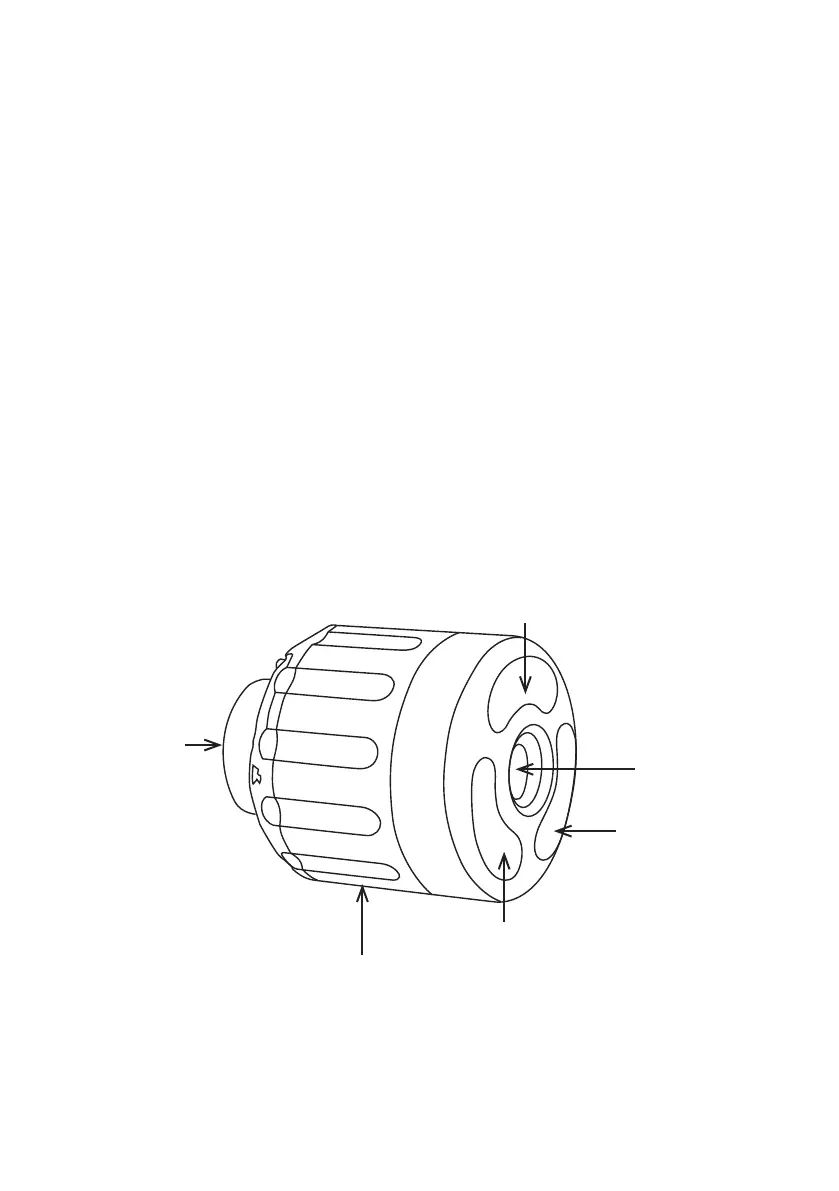

1 Camera connector
2 LED illumination
3 Camera lens
4 Serial number location
CAM027 – Axial Camera
The camera module CAM027 provides a high resolution, colour, axi-
al camera for the PROTEUS
™
inspection system. It has the following
features:
• High resolution colour CCD image sensor
• Powerful LED lighting with narrow beam width lenses
• Motorised focus control
The camera module is not pressurised but is suitable for inspections up
to 5m water depth.
