Connecting the PROTEUS™ Inspection System
Fitting and removal of crawler wheels

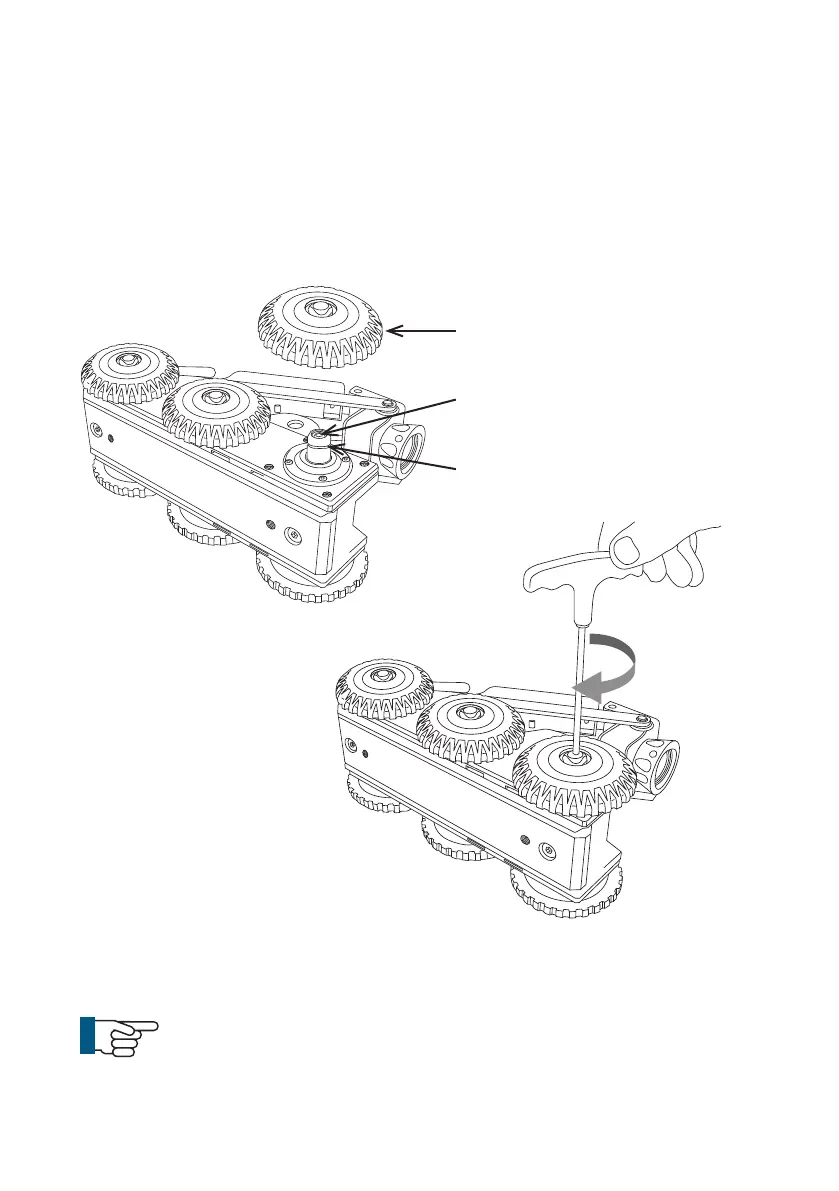

1 Ensure the quick release wheel retainer (A) is aligned with the axle (C).
2 Slide wheel (B) on to the crawler axle (C).
3 Turn the wheel retainer bolt clockwise to lock the wheel onto
the axle.
NOTE!
To remove the wheel turn the retainers bolt anti-clockwise,
ensure that the retainer is aligned with the wheel axle, and
slide the wheel o the crawler axle.
