Disconnecting Cabling between Cable Reel and Crawler

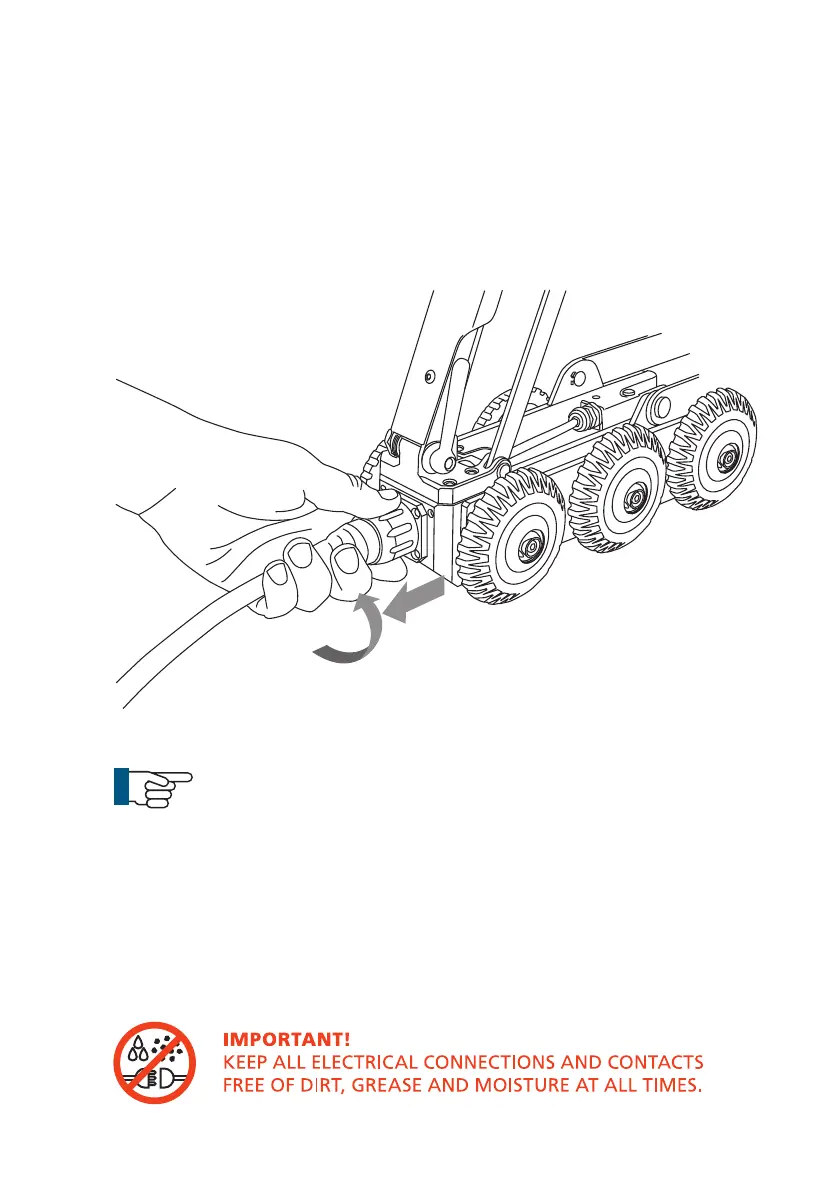

Disconnect the cable reel cable from the back of the crawler as
illustrated:
1 To unscrew the retaining ring you must pull the ring away from the
crawler body before rotating anti-clockwise.
NOTE!
Always t the protective caps when the crawler, camera or
auxiliary module are not in use to protect from damage,
ingress of dirt and moisture.
33
Version L Minicam Proteus
