Status Display for the Motorised Cable Reel

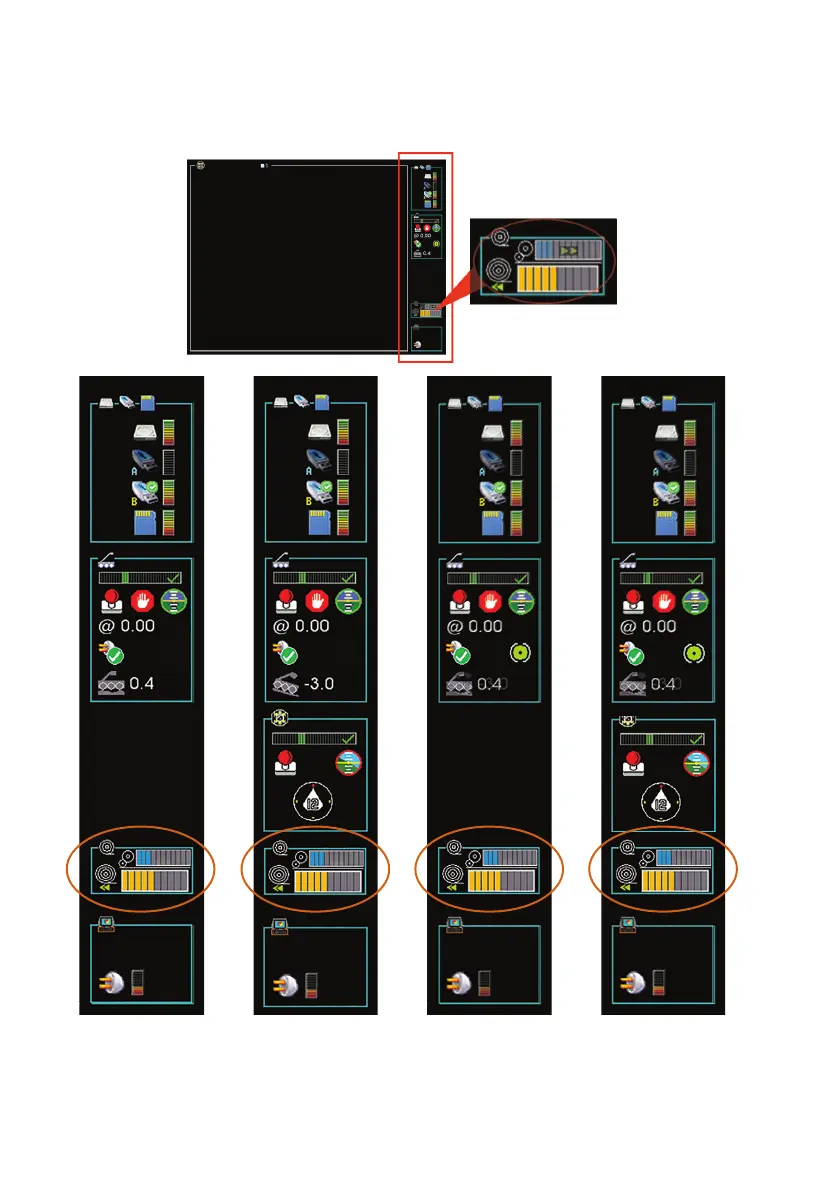

The CCU screen displays the status of the motorised cable reel.

CPL150

connected

without camera

CPL150

connected

with camera

CRP300

connected

without camera

CRP300

connected

with camera
