MINICAM PROTEUS - Connection of Cabling between Cable Reel and Raft

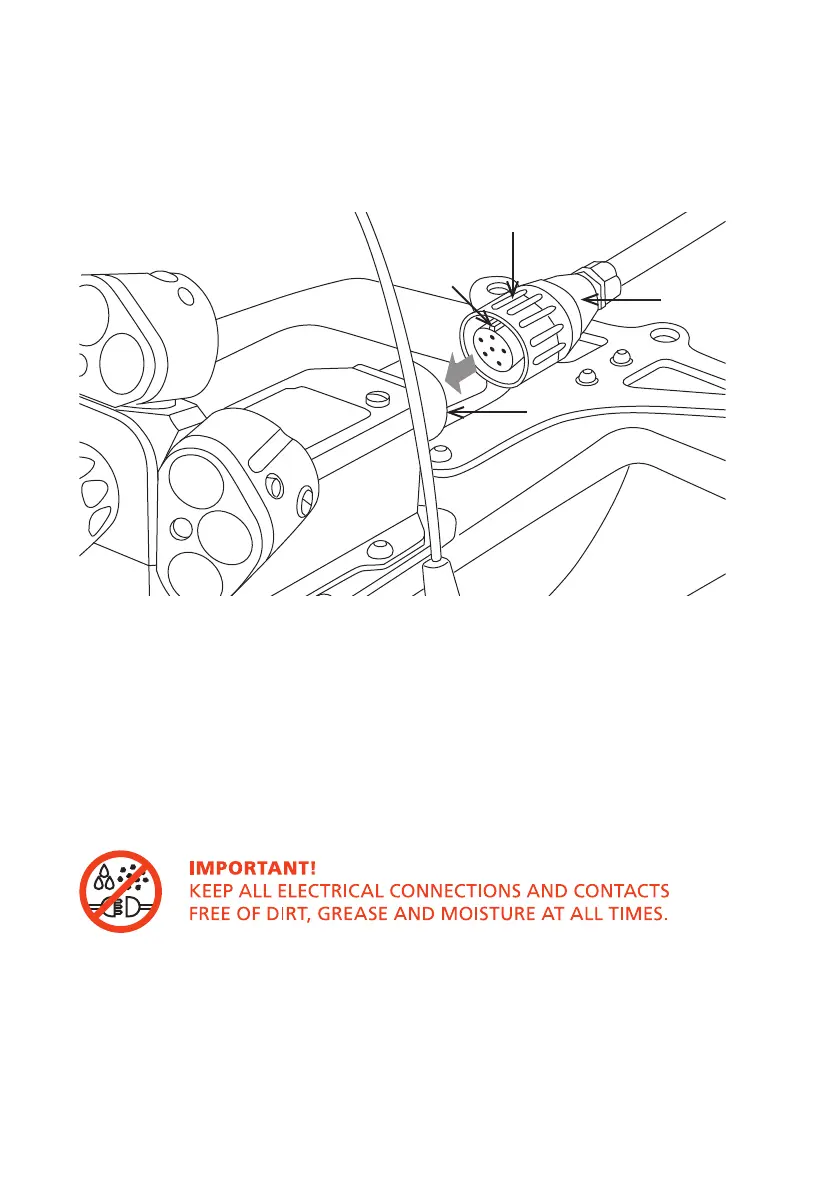

1 Plug the female plug of the cable reel (A) into the connector at the rear
of the raft (B). Notice the orientation of the plug (C).
2 Turn the retaining ring (D) clockwise, as viewed from the cable, to lock
the plug into the connector at the rear of the raft (B). The retaining
ring is not able to unscrew itself during use, providing it is cleaned and
maintained.
Connection of Cabling between Cable Reel and Raft
Connect the cable reel cable to the back of the oatation raft as
illustrated:
C
A
B
D
142
Version LMinicam Proteus
