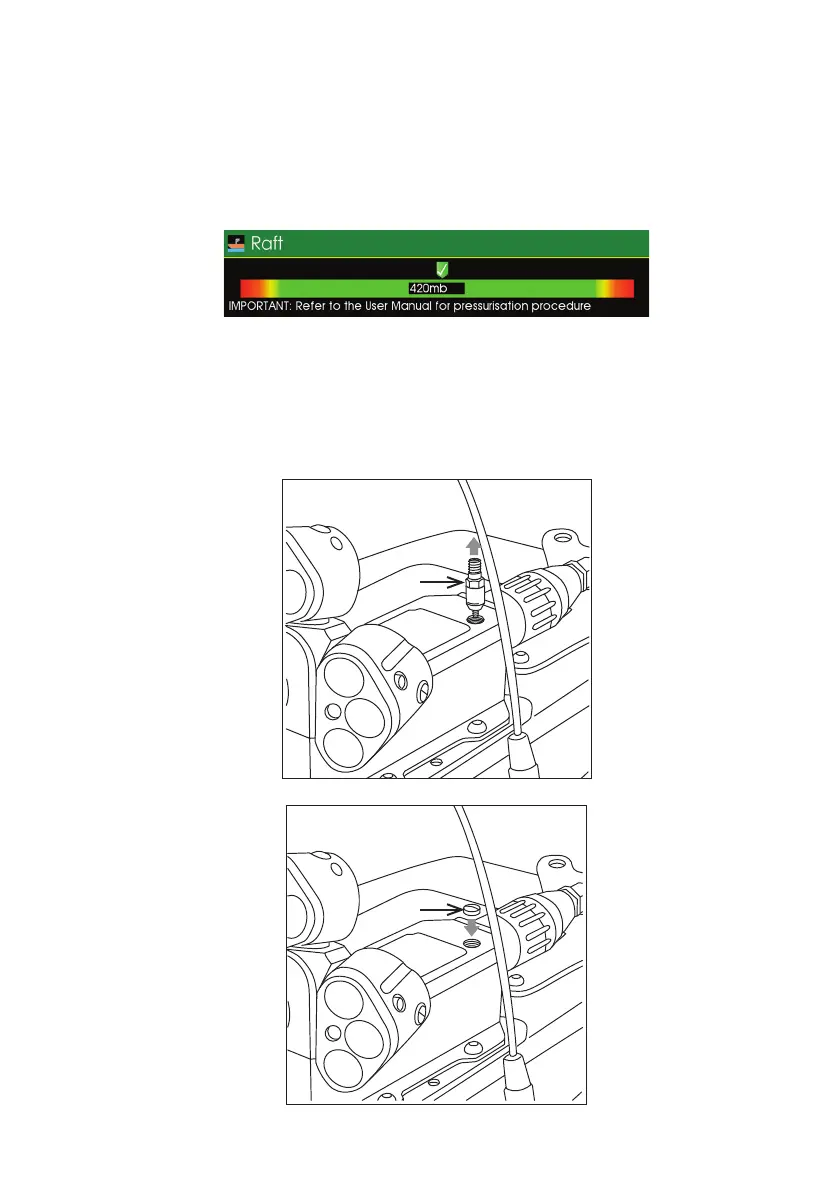

5 Ensure the oatation raft pressure is within the acceptable range by
checking the pressure gauge on the control unit. An example is shown
below. Refer to the CCU section of this manual on specic instructions
on how to access the pressure gauges.
6 Remove the pressure valve (2).
7 Ret the pressure valve protection cap (1) .
2
1
Image shows an example of the control unit raft pressure gauge:
147
Version L Minicam Proteus
