2. CNC Monitor Screen

2.3(II) Tool Offset (M system)

(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)

I - 78

2.3.1.5 Manual Numeric Command Operation on the TOOL OFFSET Screen (M, T)

o execute a manual numeric command on the TOOL OFFSET screen, first change the mode from usual

data setting to manual numeric command. The M and T commands can be executed by screen operation

in manual numeric command mode.

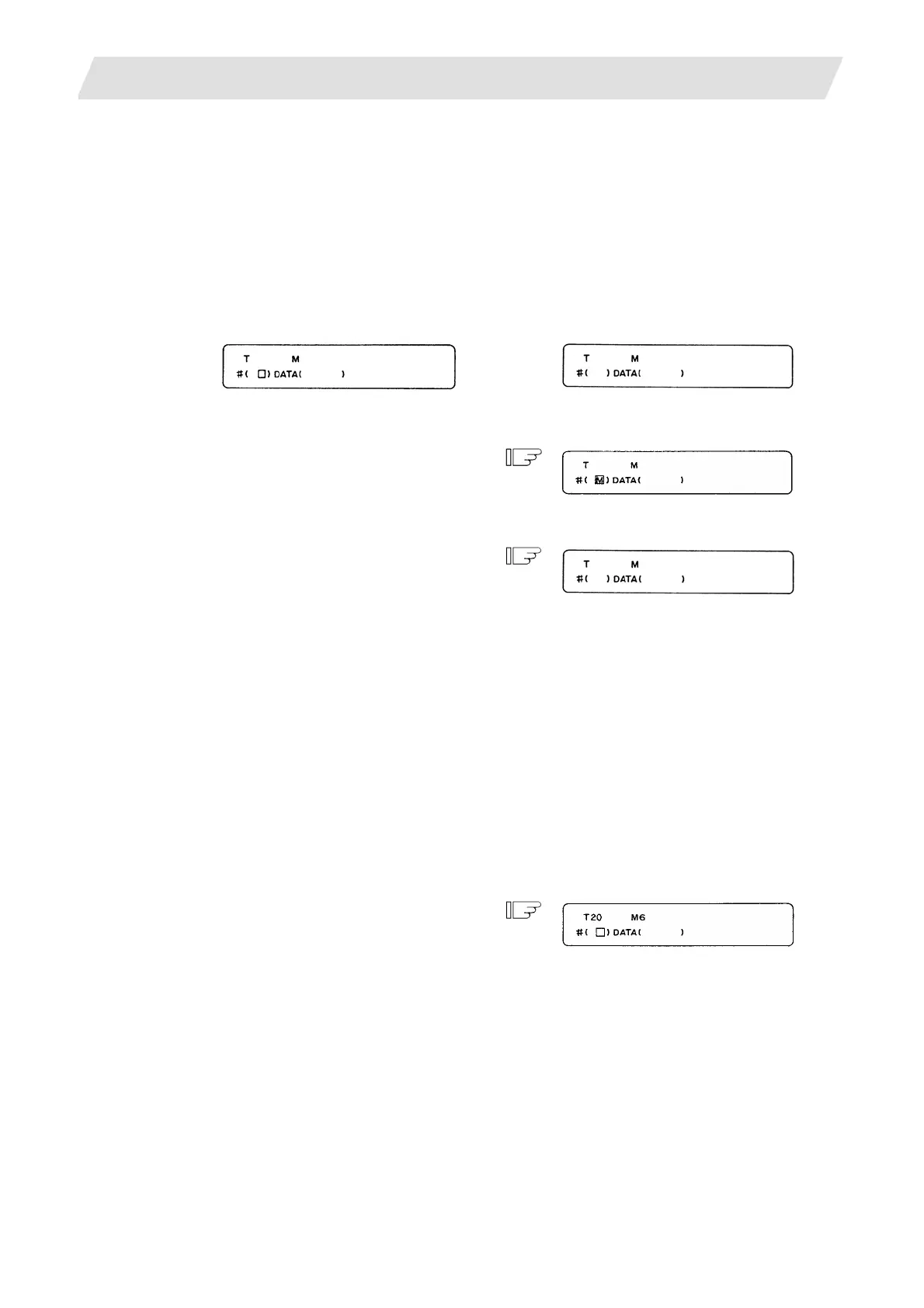

(1) Changing the mode from usual data setting to manual numeric command

In the usual data setting mode, the cursor is displayed in the data setting field.

It is not displayed in manual numeric command mode. By checking this difference, make sure that the

mode has changed.

Change the mode by the following operations:

(a) Set "M"(Manual) in the first parenthesis pair of

the setting field.

This operation is necessary regardless of the

command (M, T).

(b) Press the [INPUT] key. The mode changes to

manual numeric command.

Data is cleared from the setting field.

The cursor is also cleared from the

screen.

(2) Execution the manual numeric command ... Execute this after operation (1) above.

a) Press the address key corresponding to the command. The corresponding command value display

field is highlighted, and the manual numeric command input mode is activated. To execute the tool

function, input "T". To execute the miscellaneous function, input "M".

b) Input the specified numerics from keys.

c) Press the [INPUT] key. The command is executed.

(Note) The manual numeric command operation is the same as the operation for the POSITION screen.

See "2.2.1.2 Manual Numerical Value Command (S, T, M)" in POSITION of MONITOR screen for

details.

(3) Returning the mode from manual numeric command to usual data setting

(a)

Press the [↓] key. The usual data setting mode

returns.

The cursor is displayed in first

parenthesis pairs. After this, usual data

setting is enabled.
