6. Operation Panel Switch Functions
6.10 Manual Absolute
II - 22
6.10 Manual Absolute
When the MANUAL ABSOLUTE switch is turned on, the program coordinate system is updated by manual
tool move distance. If the switch is off, the program coordinate system is updated by manual tool move
distance.
W
-Y
X

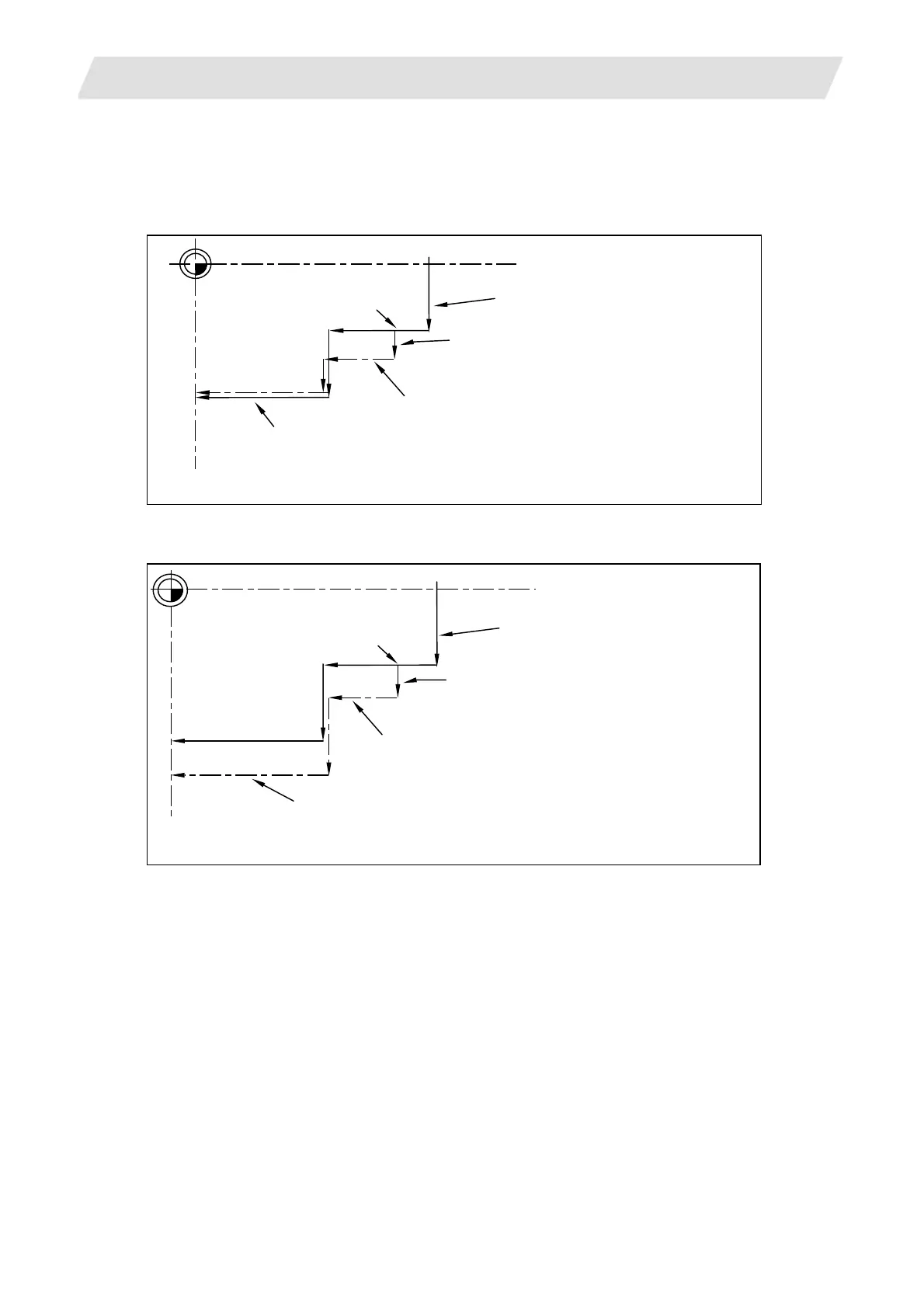

When MANUAL ABSOLUTE Switch is ON
Passes through the same path as program.
Starts after manual interrupt
(Program coordinate system is updated
by tool move distance.)
Manual interrupt
Path on program (absolute command)
Feed hold stop
W
-Y
X
When MANUAL ABSOLUTE Switch is OFF
Path is shifted by manual interrupt value.
(Origin (zero) is moved.)
Path after manual interrupt
(Program coordinate system is not updated
even if the path was changed.)
Manual interrupt
Path on program (absolute command)
Feed hold stop
(Note)
Normally, the switch will be "ON" if there is no manual absolute switch. Depending on the
machine, the switch may be "OFF" so check the specifications issued by the machine
manufacturer.
