2. CNC Monitor Screen
2.7 Diagnosis
I - 183
2.7.6 PLC Axis Monitor

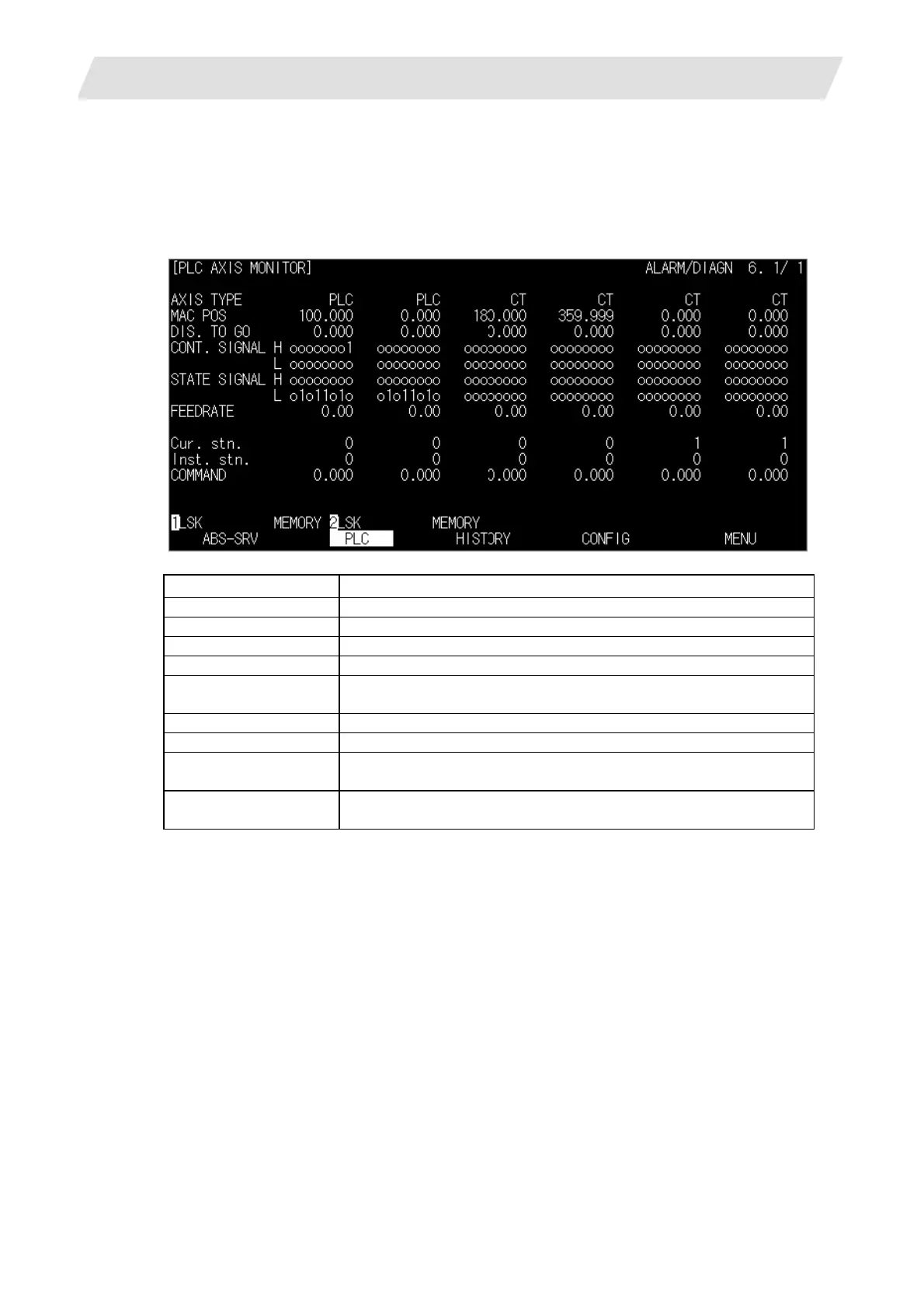

PLC axis monitor screen displays the state of miscellaneous axis as well as PLC axis information.
For NC axis, the position counter's inch/mm display can be set with "#1041 I_inch", and it can be set with
"#1042 pcinch" for PLC axis.
Display item Contents
AXIS TYPE Displays axis type. (PLC: PLC axis, CT: Indexing axis
MAC POS Displays machine position.
DIS. TO GO Displays remaining distance. (Not displayed with JOG feed)
CONT. SIGNAL H, L Displays the state of PLC axis command.
STATE SIGNAL H,
L
Displays the state of PLC axis status.
FEEDRATE Displays the feedrate.
Cur. stn. Displays the station No. currently stopped.
Inst. stn. Displays the automatic operation's command station No. or the
nearest station No. where it is stopped with manual operation.
COMMAND Displays the coordinate position corresponding with the target
station No.
