2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 79
2.3.2 Tool Registration

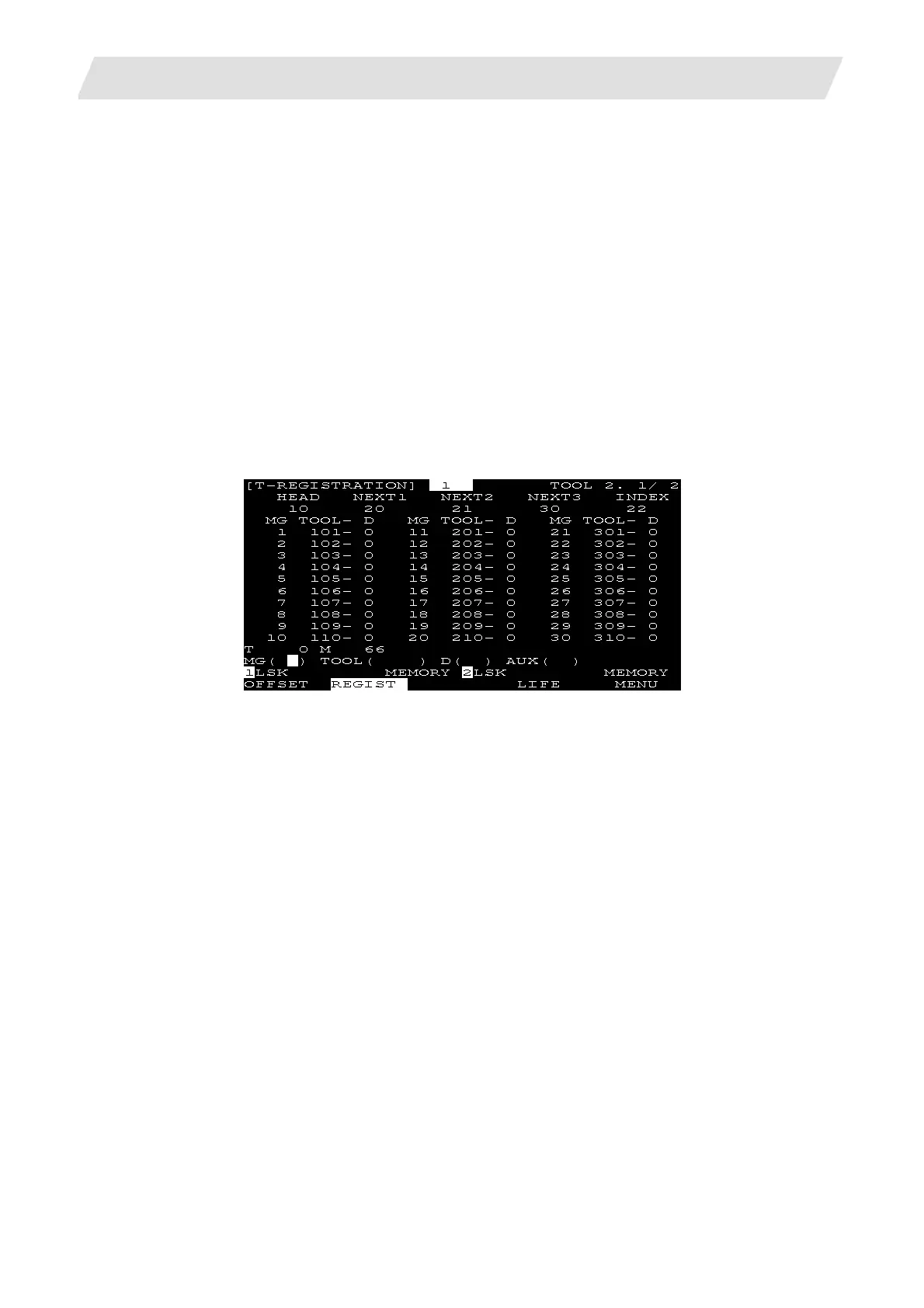

When the menu [REGIST] is pressed, the TOOL REGISTRATION screen is displayed. The use of this
screen varies depending on the user PLC. For details, refer to the appropriate manual issued by the
machine manufacturer.
2.3.2.1 Function Outline
(1)
The used tools can be registered in magazine pots.
(2) When magazine pots and tool numbers are changed by the tool selection or tool replacement
command, new tool numbers are displayed.
(3) Any data can be set in setting area AUX ( ) and sequence processing can be performed by using
user PLC.
(4) Tools can be registered under HEAD, NEXT 1 to NEXT 3, and INDEX displayed on the screen top. The
display names and the number of display pieces can also be changed.
(5) Although the number of registered tools varies depending on the specifications, a maximum of 80 tools
can be registered (the maximum number of digits of a tool number is four.)
(6) Tool selection and head replacement can be made by using manual numeric commands.
To Next Page
