2. CNC Monitor Screen
2.7 Diagnosis
I - 178
2.7.4.4 PLC Interface Signal Forcible Definition (Modal Type)
This is PLC in
terface signal forcible definition of modal type. Once it is set, it is held until canceled.
(1) Mode setting
Set the device number to be forcibly defined in DEVICE ( ), definition data in DATA ( ), and 2 in
MODE ( ), then press the [INPUT] key. The data is processed and forcibly defined.

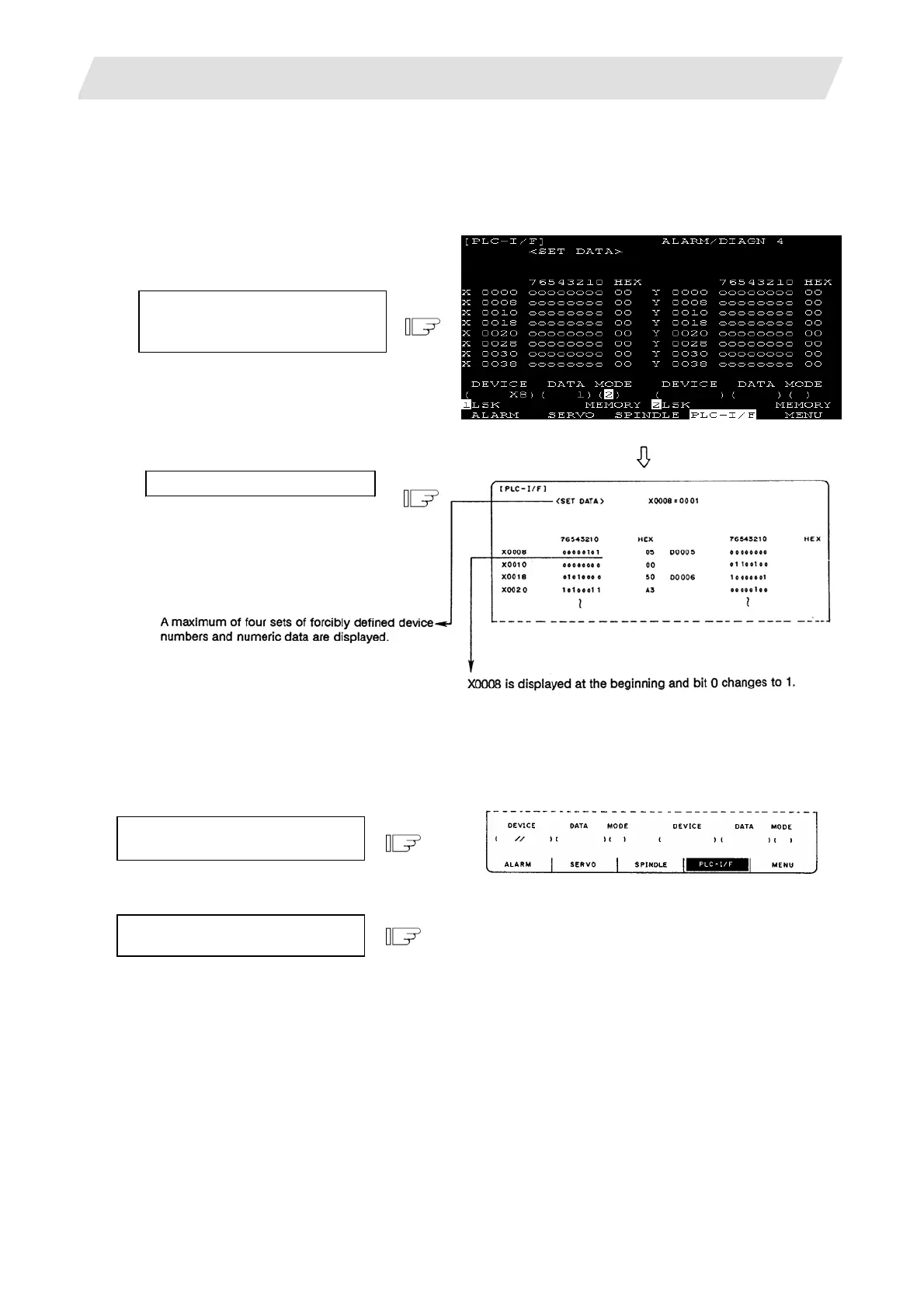

(Example 3)
Set X8 in DEVICE ( ),
1 in DATA ( ), and
2 in MODE ( ).
Press the [INPUT] key.
A maximum of four sets can be forcibly defined in modal type. If four sets have been defined and additional
setting is made, forward feed is made and the latest four sets become effective.
(2) Cancel of forcibly defined data
Set two slashes // in DEVICE
( ).
Press the [INPUT] key.
Forcibly defined data is also canceled by turning on/off power.
The SET DATA field display becomes all blank
and forcibly defined data is canceled.
(Setting of data 0 is not a cancel.
Data of 0 is forcibly defined.)
To Next Page
