2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 80

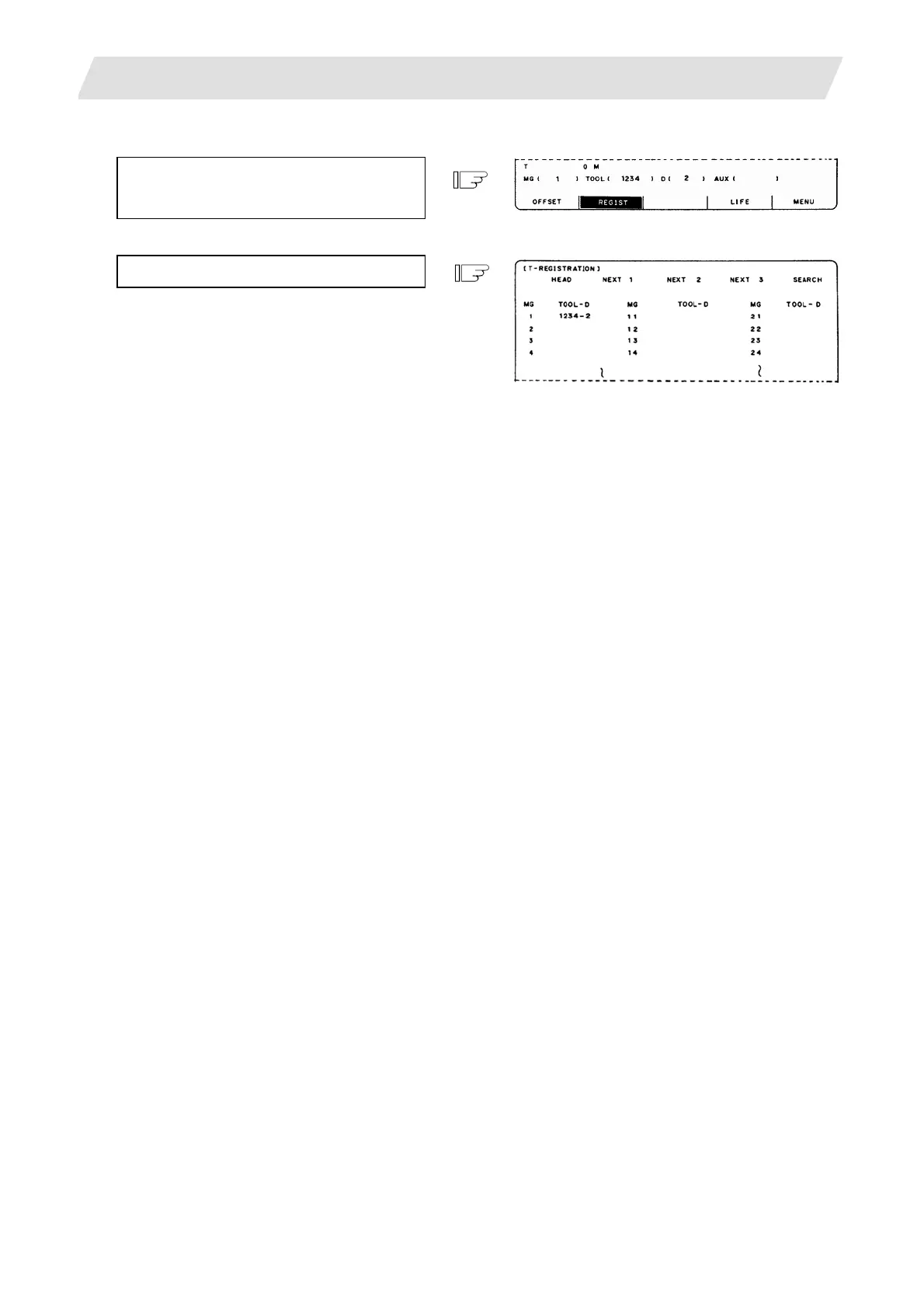

2.3.2.2 Tool Registration in Magazine Pot
Set “1” in MG (
),
“1234” in TOOL ( ), and
“2” in D ( ).
Press the [INPUT] key.
The tool number and data in D are displayed in the specified
magazine number area. The magazine number in setting area MG
( ) is incremented by one and the data in other parenthesis pairs
disappears.
If a number other than magazine numbers listed in the data display
area is set, the screen is
changed to the screen corresponding to
the setup magazine number when the [INPUT] key is first pressed.
When the [INPUT] key is pressed again, the data set in the area is
displayed.
(Note) For the functions and purpose of data in D, refer to the
appropriate manual issued by the machine manufacturer.
