2. CNC Monitor Screen
2.2 Monitor
I - 33
2.2.4.1 Memory Search
An
y work program is called from the machining programs registered in memory before work.

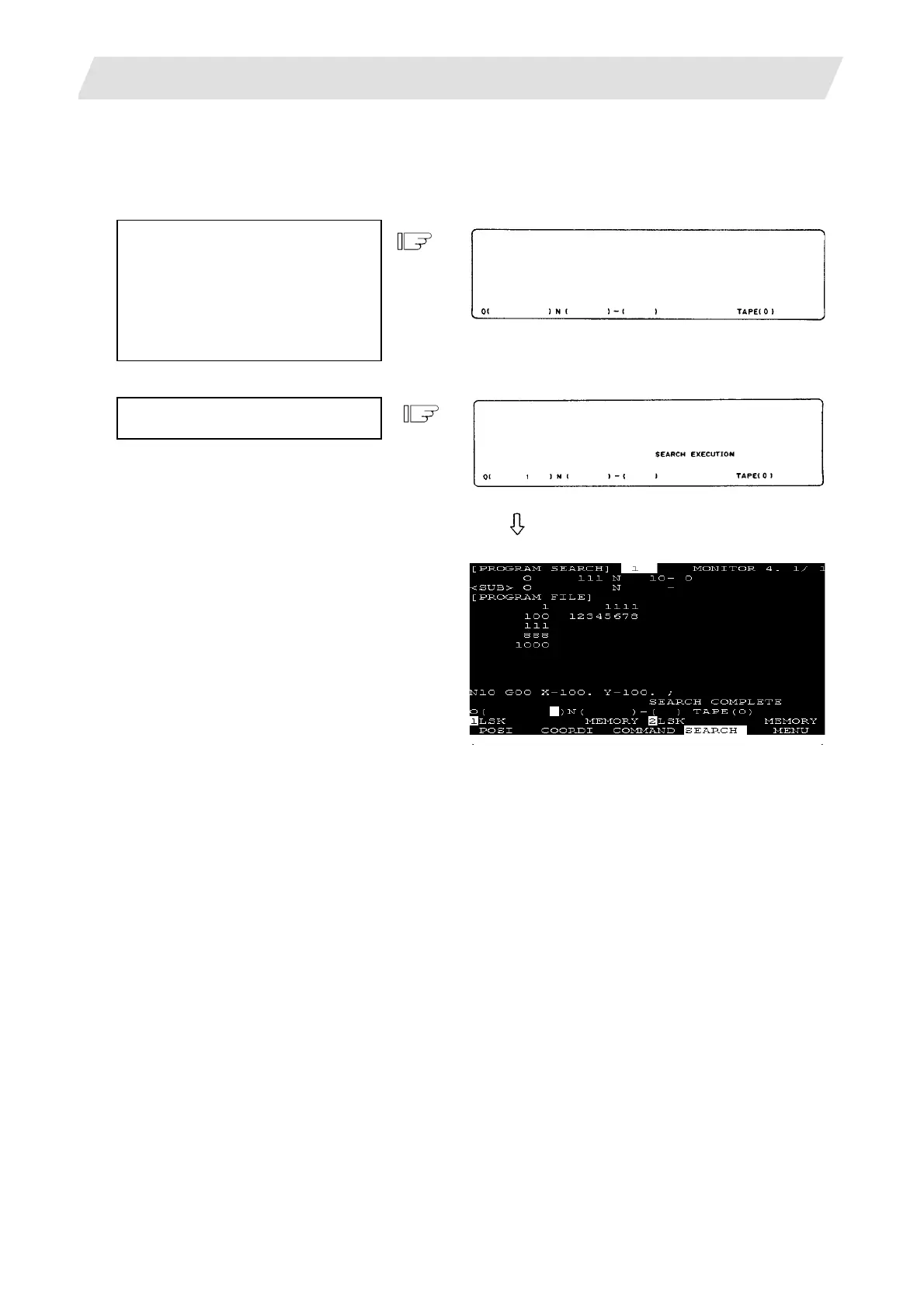

Set the program number to be called, the sequence number, and block number. Set the tape search setting
area to 0. The initial state when power is turned on is memory search.
Set the program number to be called.
Set the sequence number and block
number as required.
(Example)
To call O111 N10 block,
O ( 111) N ( 10) - ( )
TAPE (0)
Press the [INPUT] key.
1) A search is started.
2) When the specified program number,
sequence number, and block number are
found, SEARCH COMPLETE message is
displayed.
The found numbers are displayed in O
and N. Data in the found block is
displayed in the work program display
area.
(Note 1) If one of the following operations is executed in the EDIT screen after memory search, the
system enters a status in which nothing is being searched. Operation is disabled at this time. In
this case, execute the search again.
• Deleting the program being searched.
• Deleting the sequence number for which the search was being executed.
• Deleting the block corresponding to the block number for which the search was being
executed.
(Note 2) One block which the control unit executes in one automatic start cycle can be searched in this
case. The block with ; (EOB) or sequence number only is not regarded as a one cycle execution
block. Axis movement command or control command such as M, S, or T is contained in it.
