6. CNC Data Input/Output
6.2 Setting Communication
III - 26
6.2 Setting Communication

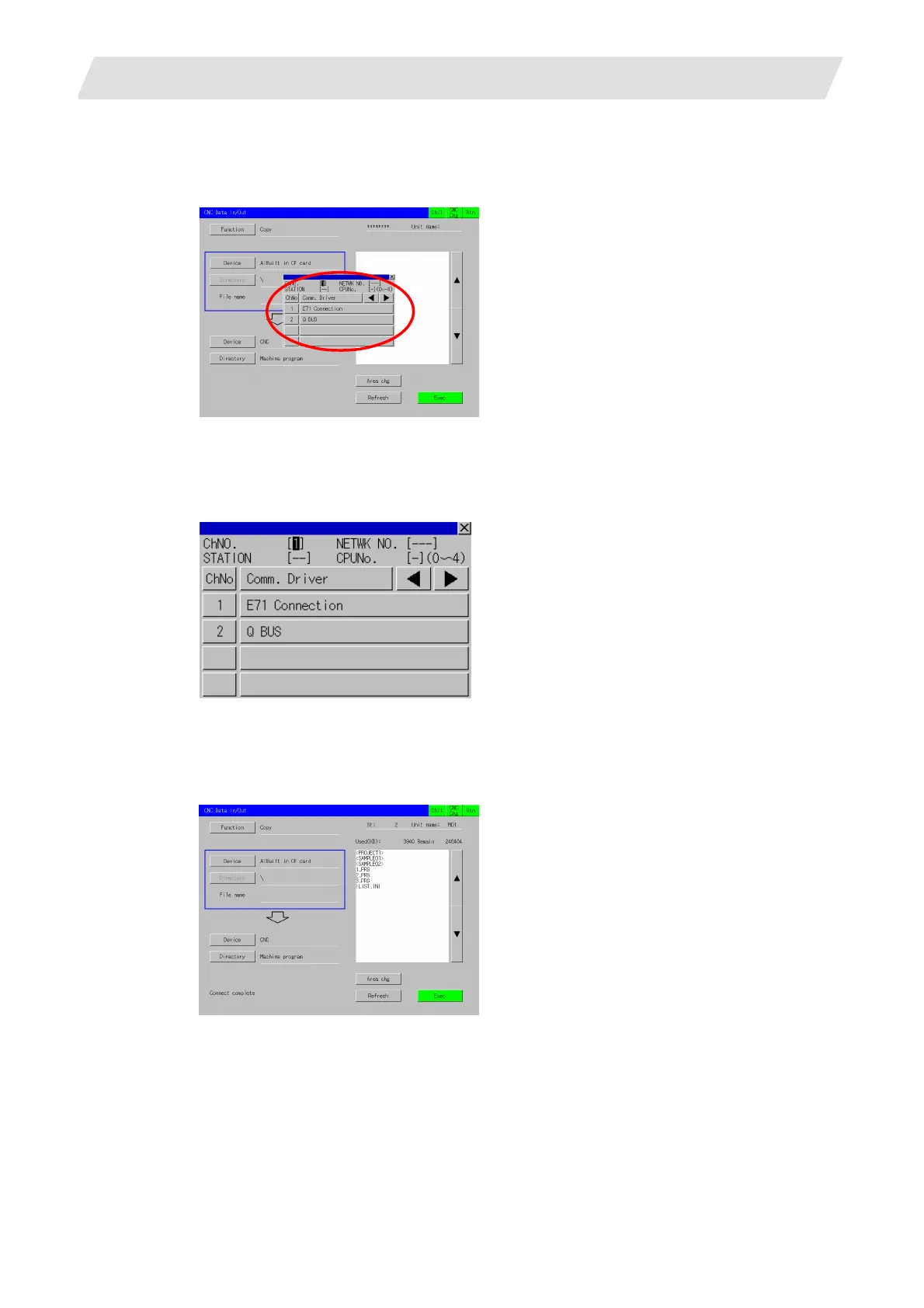

(1) When the screen is switched to the "CNC Data In/Out" screen at the first time since the power has been
turned ON, the screen appears with the communication setting window opened.
[Initial display of "CNC Data In/Out" screen]
(2) Select the channel to connect in the communication setting window. If any of the channel Nos. or the
network driver names is pressed, the channel is set and the window is closed.
(Example) When connecting to a display I/F, touch "1" or "E71"
[Display of the communication setting window]
(3) The initial "CNC Data In/Out" screen appears.
If the display I/F connection is applied, the screen initially shows the CNC that has been set in the first
drawing data.
If the bus connection (Q) is applied, the screen initially shows the CNC with the smallest No.
[Initial display of "CNC Data In/Out" screen]
