2. CNC Monitor Screen
2.7 Diagnosis
I - 181

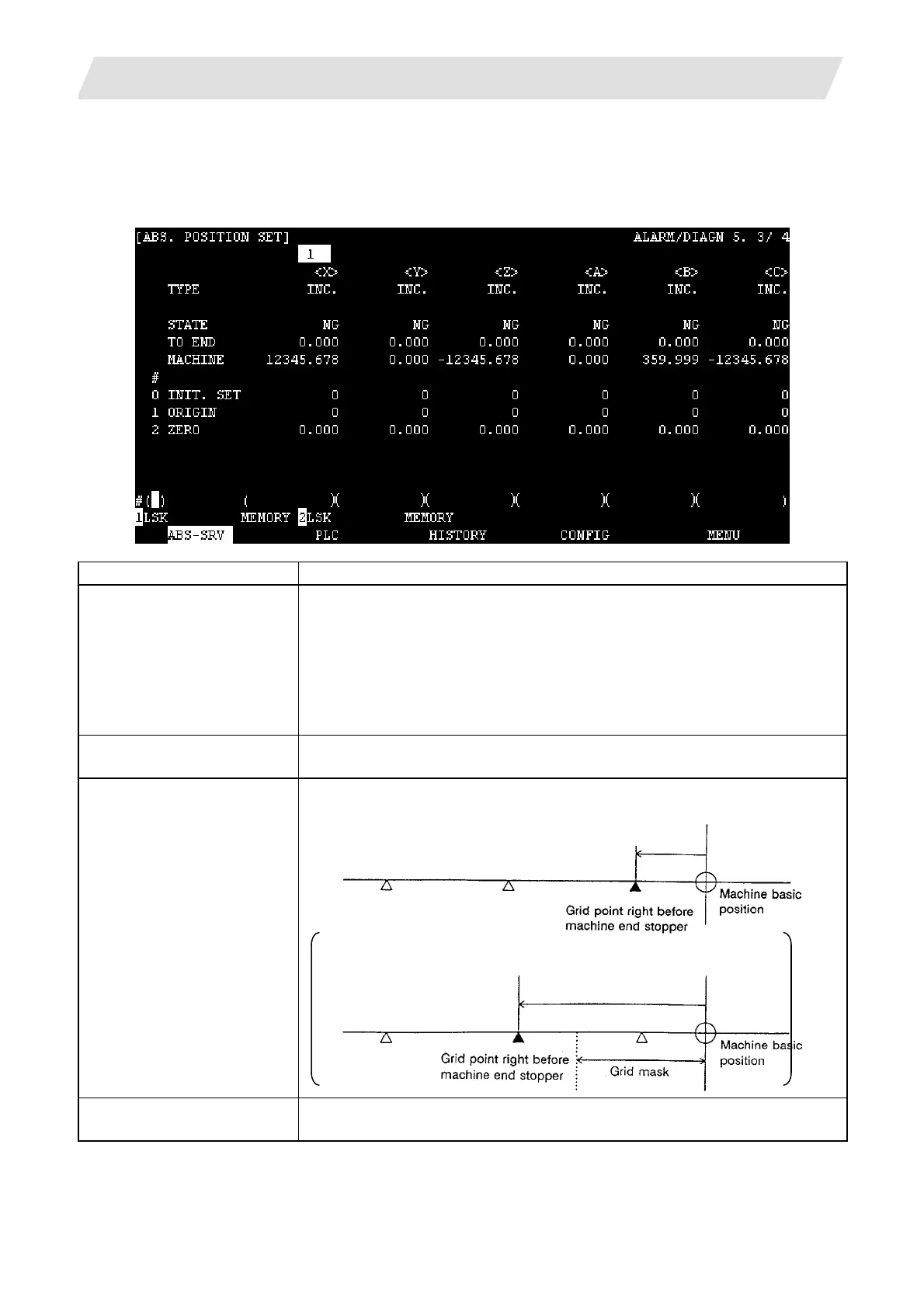

2.7.5.2 Absolute Position Initialization
Pressing the
menu [ABS-SRV] displays the ABS SERVO MONITOR screen. When the [NEXT] key is
pressed on that screen, the ABS POSITION SET screen will display. This screen is used to set the parameter
data used to establish the zero point and to display the initialization.
Display item Explanation
TYPE
The position detection system selected by the absolute position parameter is
displayed.
INC. : Incremental system
DOG : Dog type absolute position detection
STOPPER : Dogless absolute position detection machine end
stopper method
NO STOPPER : Dogless absolute position detection origin point
alignment method
STATE
The progress of initialization is displayed, such as "OK" if the absolute position
has been established or "NG" if the absolute position is lost.
TO END
The distance between the machine basic position and the first grid point is
displayed.
"
TO END
"
If the first grid point is covered by the grid mask, the distance to
the next grid point is displayed.
"
TO END
"
MACHINE
"NOT PASS" is displayed until the machine passes a grid point after power on.
After the machine passes the grid, the current machine position is displayed.
To Next Page
