6. Operation Panel Switch Functions
6.15 Handle Interruption
II - 24
6.15 Handle Interruption
6.15.1 Outline

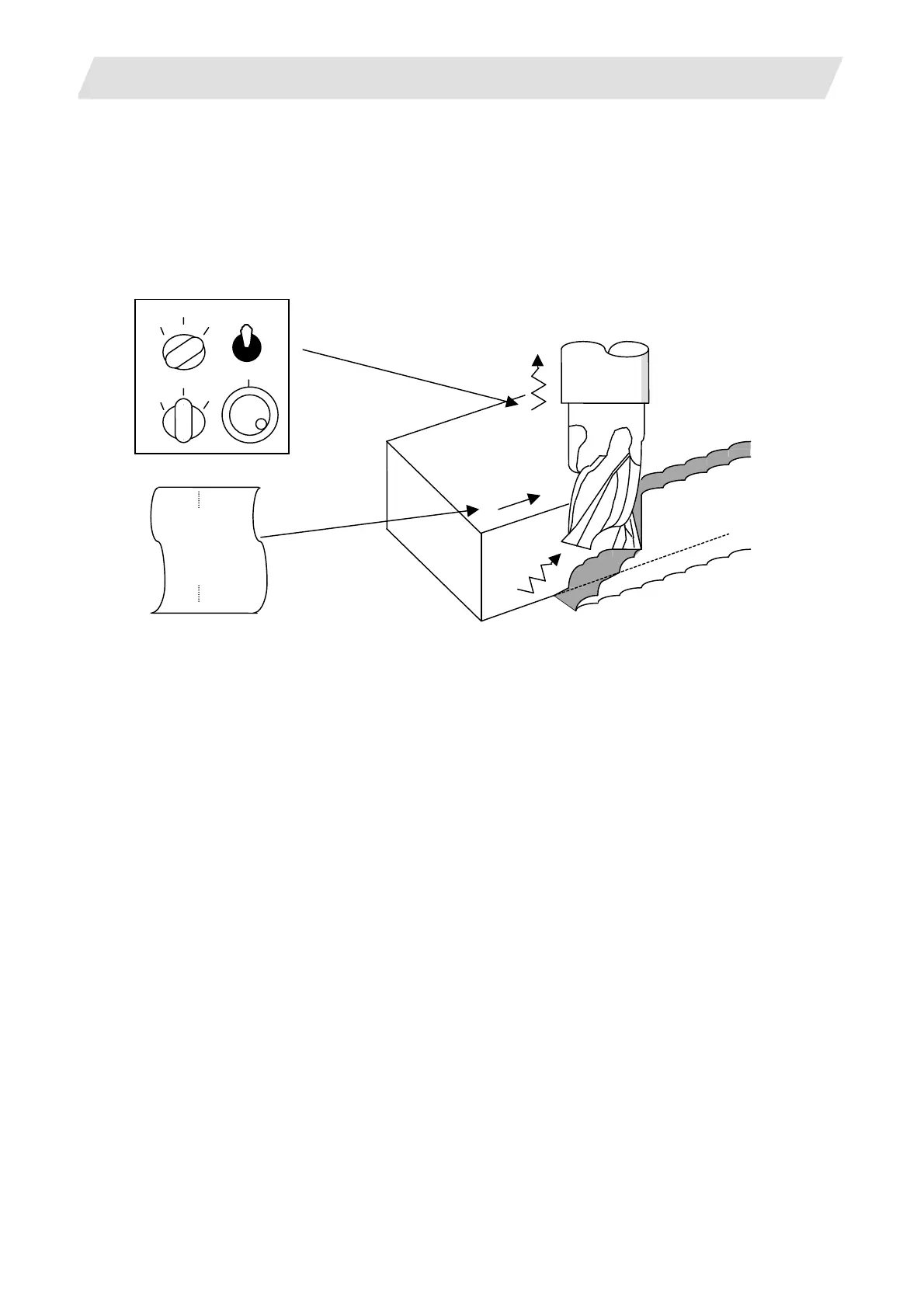

Section 6.14 explains automatic handle interruption, which enables the operator to interrupt movement
using the manual handle in automatic modes (memory, MDI).
(This is an optional function.)
A
utomatic feed
(X axis)
Handle feed
(Z axis)
G01 Z_F;
X_Y_;
X_Y_;
X_Y_;
Interrupt
100
10
1
Z
Y
X
Tool
Workpiece
6.15.2 Interruptible Conditions
(1) The automatic handle interrupt function allows you to interrupt the program manually by selecting the
manual handle mode in automatic mode selection (tape, memory, MDI, etc.). However the interrupt
cannot be generated from the manual handle when an automatic reference point return command
(G28, G29, G30), the thread cutting (G33), or the skip command (G31) has been executed or when
tapping in the tapping cycle.
(2) If automatic operation mode such as tape, memory, or MDI is being selected even when an automatic
operation pause (including a block stop) is established, automatic handle interruption is enabled.
(3) If the axis is moved during dwell (G04) command processing by using automatic handle interruption,
the dwell count operation will stop. A check is made for that the axis movement has been completed,
then the dwell count operation continues.
(4) Automatic handle interruption is enabled even if automatic machine lock has been set. If manual
machine lock has been set, the machine does not move; it only updates the POSITION display. If
manual machine lock has not been set, the machine moves by the interruption distance by the manual
handle and the POSITION display is updated.
(5) This function is disabled for an axis to which the interlock signal has been input or an axis, the
interruption direction of which is the soft limit.
