2. CNC Monitor Screen
2.3(II) Tool Offset (M system)
(Refer to "2.3 (I). Tool Offset (L system)" for Lathe system)
I - 90
2.3.4 Workpiece Coordinate

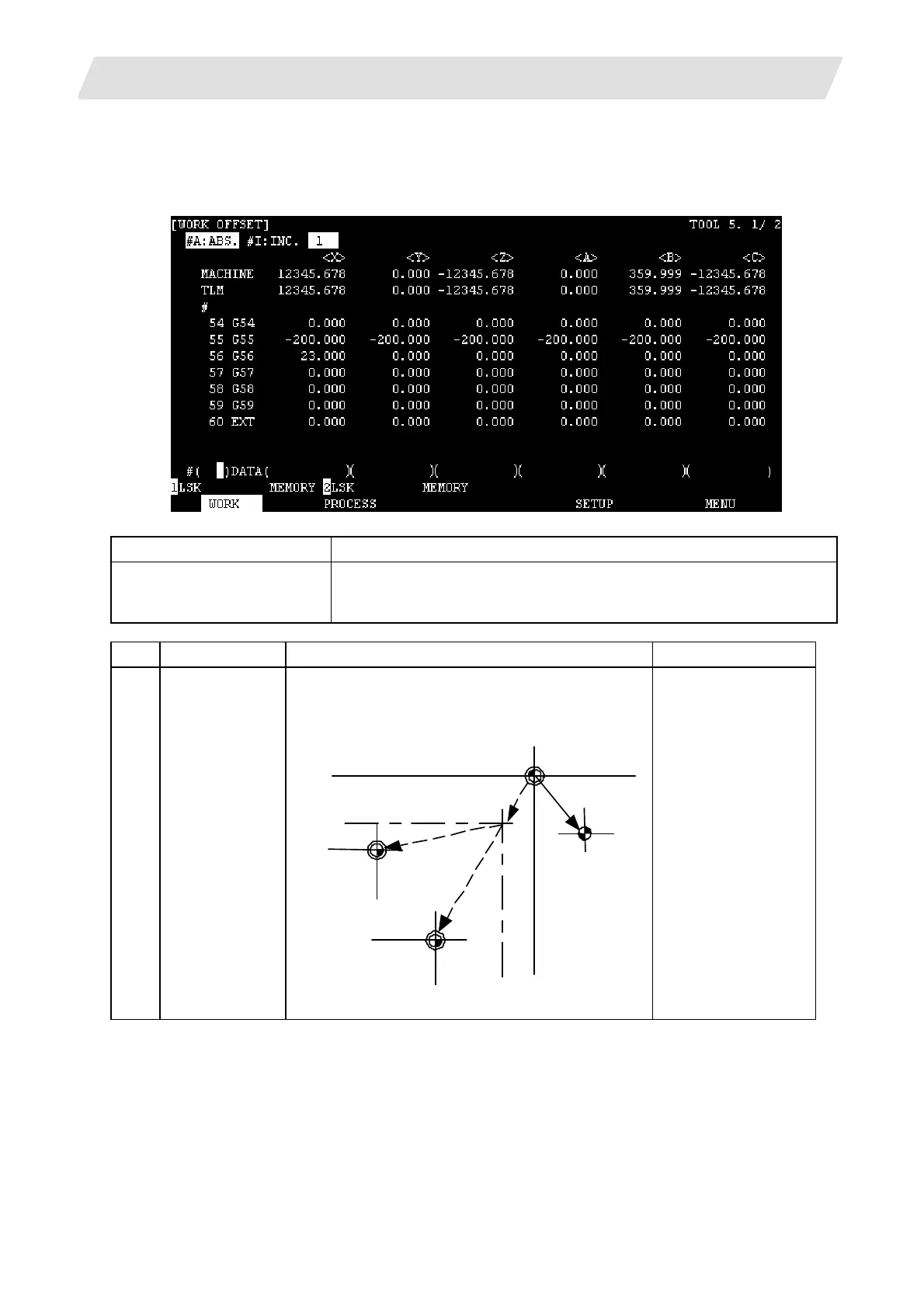

Pressing the menu [WORK] displays the WORK OFFSET screen.
The workpiece coordinate system offset data can be set or displayed for the number of axes.
Display item Explanation
#A: ABS.
#I : INC.
The currently effective one of the setting modes (absolute and
incremental) is displayed in reverse video.
Before setting data, check the mode.
# Parameter Explanation Setting range (unit)
54
55
56
57
58
59
60
G54 offset
G55 offset
G56 offset
G57 offset
G58 offset
G59 offset
EXT offset
Specify the workpiece coordinate system from G54
to G59 and external workpiece coordinate offset.
Workpiece coordinate system offset data can be
specified in absolute or incremental values.
M
R
W2
Basic machine
coordinate system
G55 work
coordinate
system
Reference
position
W1
G54 work
coordinate
system
External (EXT)
offset
±99999.999 (mm)
