III - 65
7. Data Backup and Restoration
7.2 PLC/CNC CPU Data Backup and Restoration
7.2 PLC/CNC CPU Data Backup and Restoration

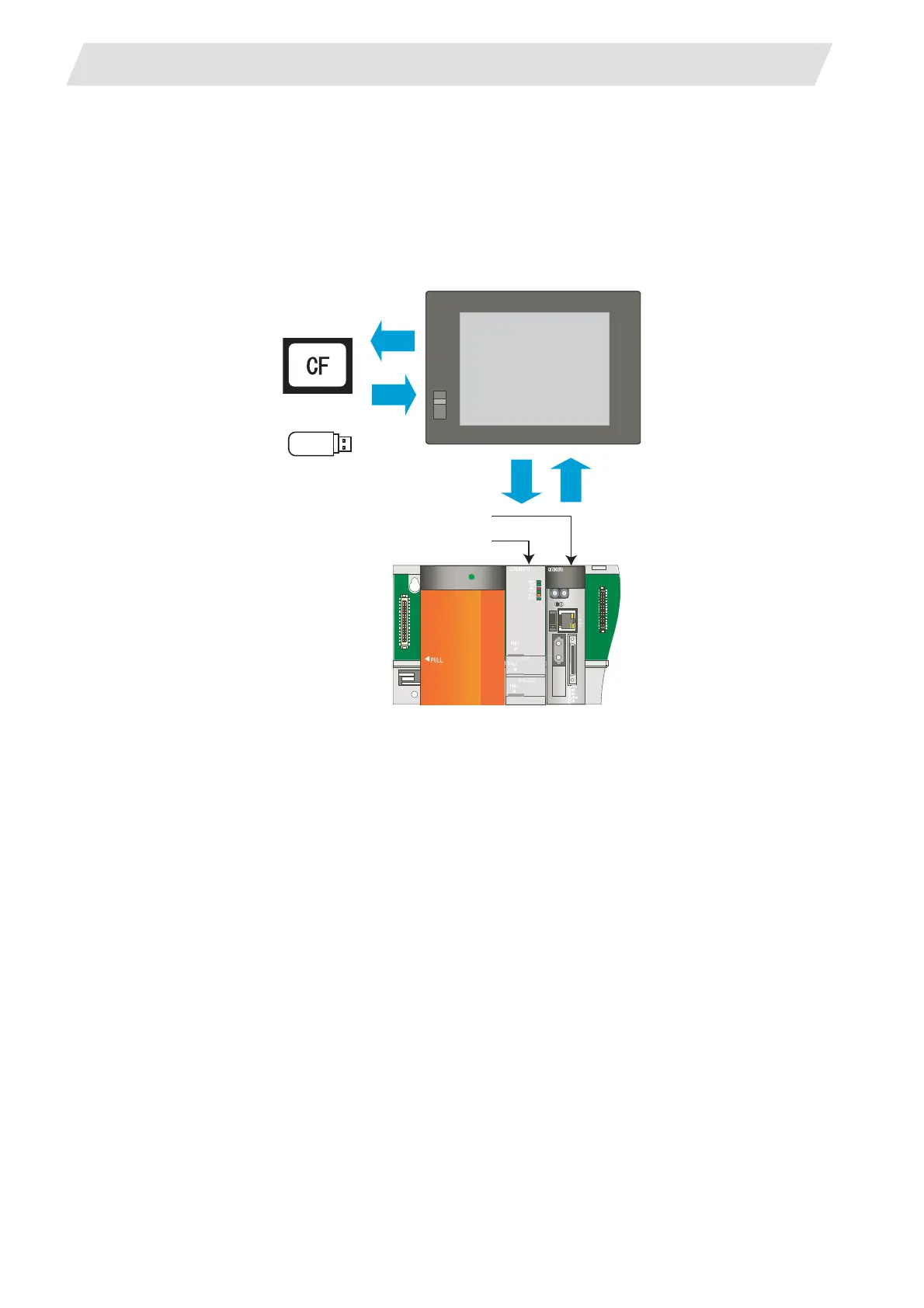

Backup / Restoration function is installed on GOT1000 series.
All of PLC/CNC CPU data that needs to backup is saved into the CF card on GOT1000 in an easy operation.
All backup data can be restored to each CPU module one by one.
USB memory(Max.2GB) can be used on GOT1000 series GT16.
(Note 1) Backup/restoration is not executed on latch device of PLC CPU. If the data requires to be restored
when CPU is replaced, assign the data to file registers.
(Note 2) Editing CNC data
The backed up CNC data includes machining programs, parameters, and others. Those data are
related one another.
Therefore, when any of the data is changed with a text editor and others, the GOT cannot restore
the backed-up CNC data to the CNC.
When editing the setting data, use the CNC data I/O function.
(For the CNC data I/O function, refer to "6. CNC Data Input/Output". )
(Note 4) Refer to "Setting the saving destination drive for backup data" for destination drive for backup data.
MITSUBISHI
MELSEC
POWER
MITSUBISHI
MELSEC
POWER
GOT1000 Series
(SVGA / XGA)
()
CNC CPU Q173NCCPU
QnUD(E)CPU
QnUD(E)HCPU
CF card
USB memory
PLC CPU
To Next Page
