2. CNC Monitor Screen
2.3(I) Tool Offset (L system)
(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)
I - 57
2.3.4 Tool Life Management I ("#1096 T_L type" is 1)

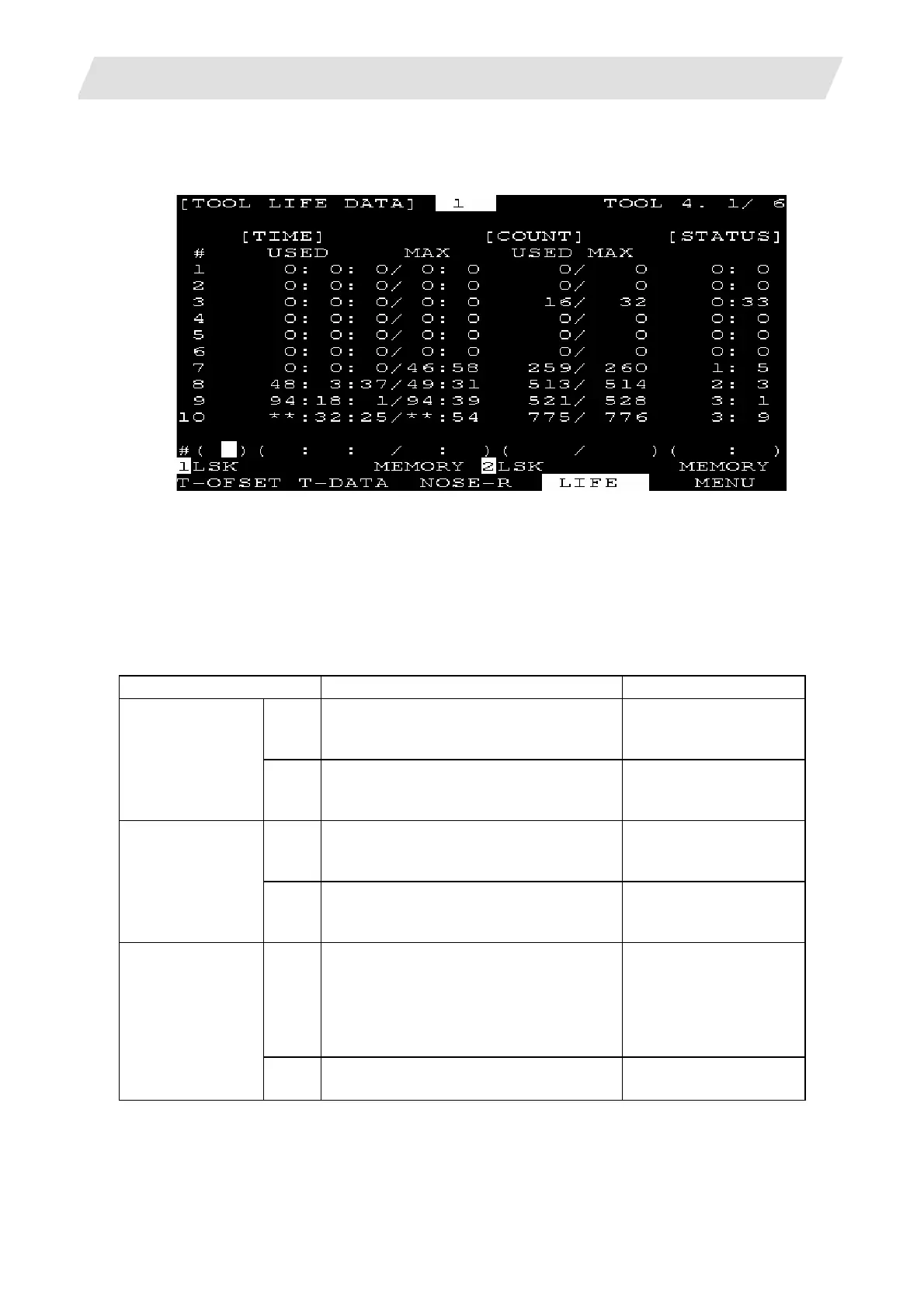

The TOOL LIFE DATA screen will appear when the menu [LIFE] is pressed.
Tool life management is valid when parameter "#1103 T_Life" is set to 1. Tool life management is then
carried out according to the tool usage time or the No. of times the tool is used (also called count). When
the tool usage time reaches the service life time, or when the tool count exceeds the service life count, a
tool life expiration signal (X62E) is output to the user PLC and the tool No. (#) is highlighted on the TOOL
LIFE DATA screen.
Tool life management is possible for up to 80 tools (tool Nos. 1 to 80).
This function is useful for setting tool abrasion and wear data, and for knowing when to replace tools with
new ones, etc.
Item Details Setting range
USED
The cumulative time the tool is used.
This timer value is incremented during
cutting.
0 : 0 to 99 : 59
(h: min)
TIME
MAX
The tool service lifetime setting.
Set the max. time the tool can be used.
Seconds are discarded.
0 : 0 to 99 : 59
(h: min)
(0 : 0 = no warning given)
USED
The cumulative count the tool is used.
The counter value is incremented each
time the tool is used.
0 to 9999 (times)
COUNT
MAX
The tool service life count.
Set the max. count the tool can be
used.
0 to 9999 (times)
(0 : 0 = no warning given)
Left
side
The tool life management status is
indicated.
0: Not used
1: Current tool (tool being used)
2: Service lifetime (service life count) is
exceeded.
0 to 2
STATUS
Right
side
(Machine maker free area)
0 to 99
