2. CNC Monitor Screen
2.3(I) Tool Offset (L system)
(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)
I - 66

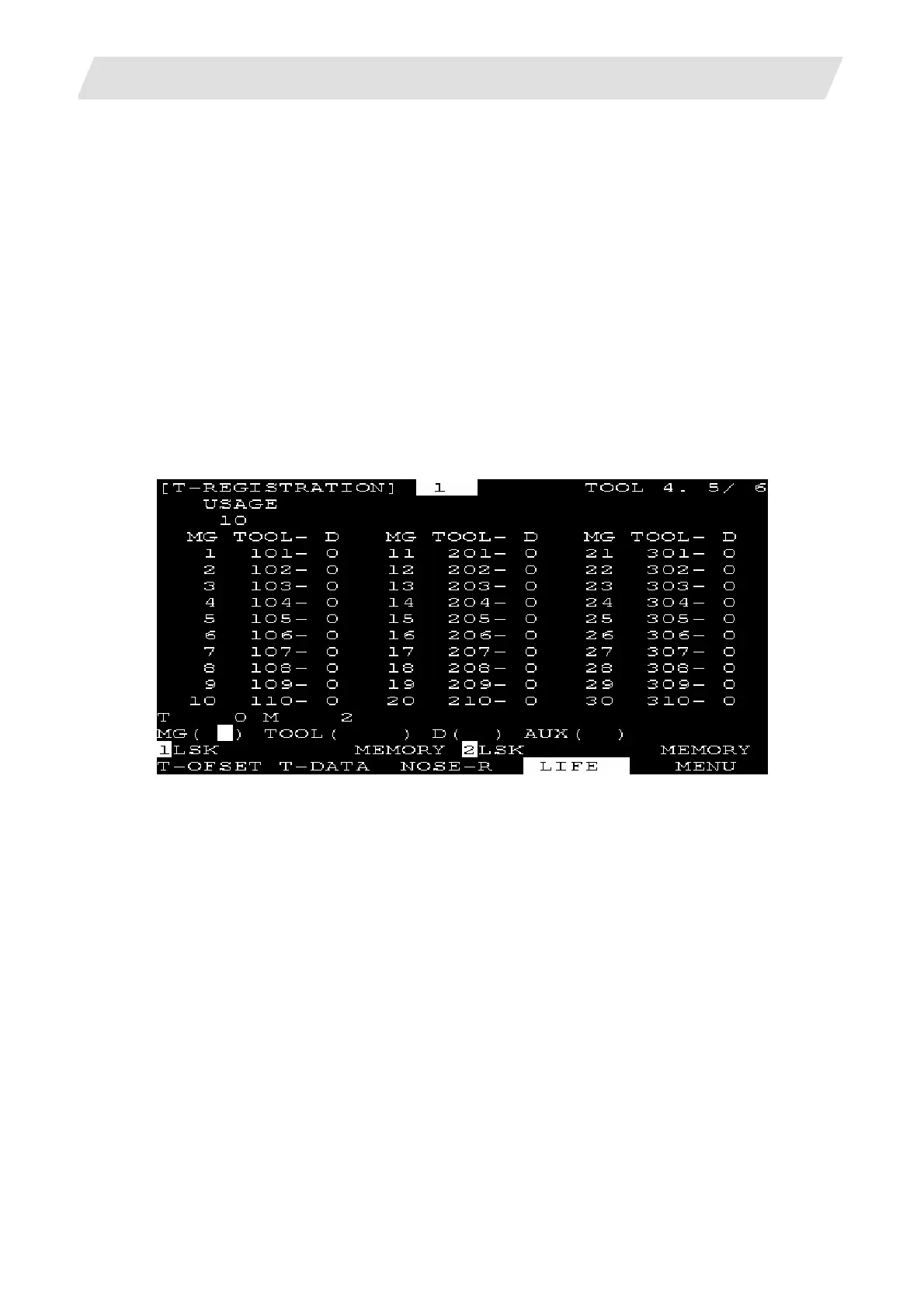

2.3.6 Tool Registration
The T-REGISTRATION screen will appear when the menu [LIFE] is pressed, and the screen is changed
using the [NEXT] key. The use of this screen differs according to the user PLC, so refer to the instruction
manual issued by the maker for details.
2.3.6.1 Outline of Functions
(1)
T
ools used can be registered in the magazine pot.
(2) When the magazine pot and the tool No. are changed by a tool selection command or a tool
replacement command, the new tool No. is displayed.
(3) Random data can be set in AUX ( ) in the setting area and processed as a sequence with the user
PLC.
(4) Tools can be registered in USAGE on the upper portion of the screen. The displayed name and
displayed No. can be changed.
(5) The No. of tool registrations differs according to the specifications, but a max. of 80 tools can be
registered, with a max. of 4 digits in the tool Nos.
(6) Tools can be selected by a manual numerical command.
To Next Page
