2. CNC Monitor Screen
2.3(I) Tool Offset (L system)
(Refer to "2.3 (II). Tool Offset (M system)" for Machining center system)
I - 42

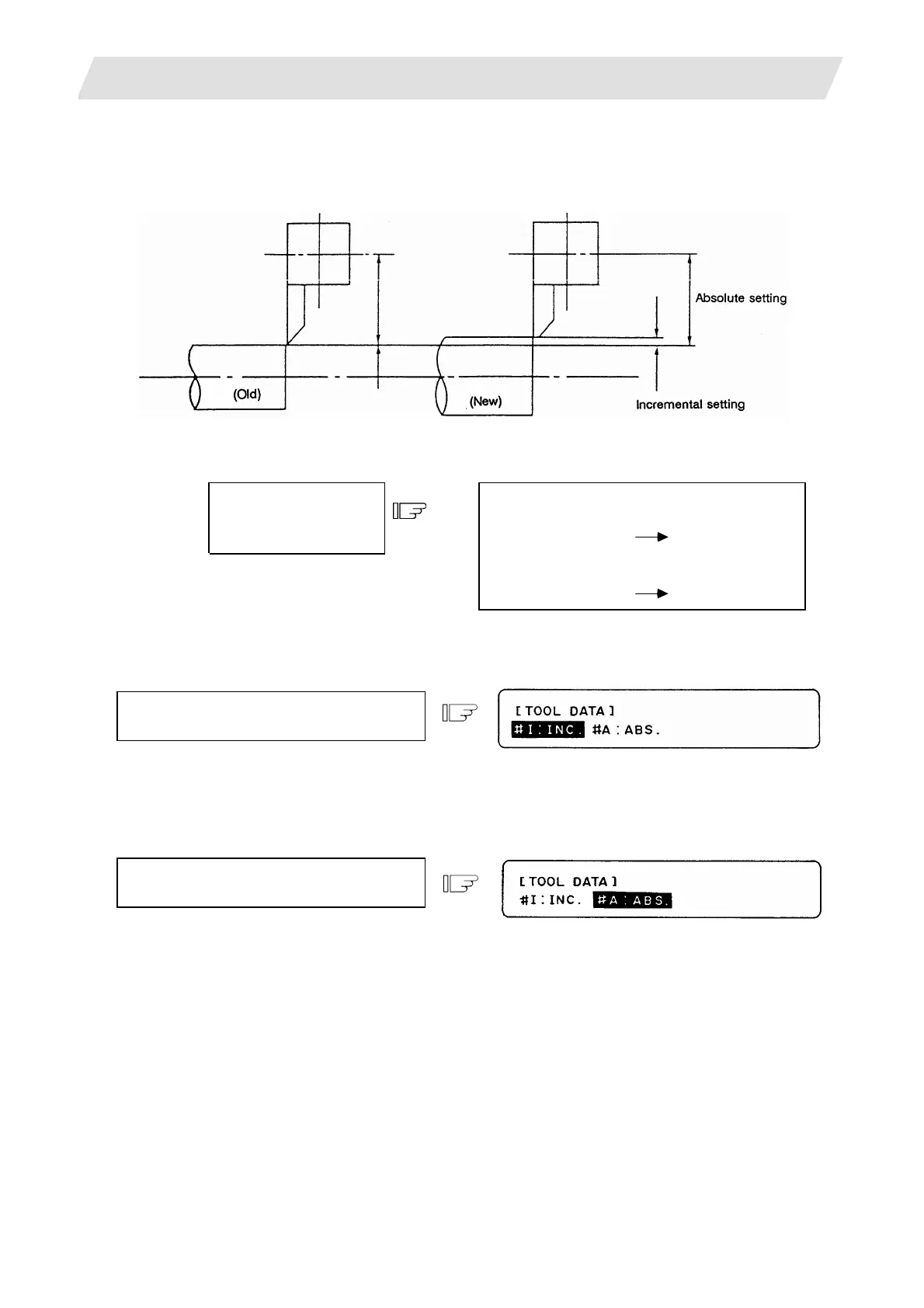

2.3.1.3 Tool Wear and Tool Length Data Setting Mode (incremental/absolute)
Whether tool of
fset data is set as an absolute value or as an incremental value is designated on the TOOL
TIP OFFSET or TOOL DATA screen.
(Example) Incremental/absolute value setting
Display
#2 X -100.000
Setting Display
• Incremental value setting
# (2) ( - 0.1)
#2 X-100.100
• Absolute value setting
# (2) ( - 100.1)
#2 X-100.100
(1) Change over to the incremental setting mode
Set I in # ( ), then press the INPUT key.
# ( I) X ( ) Z ( )
"INC." is highlighted, and the mode becomes the incremental
value setting mode.
(2) Change over to the absolute value setting mode
Set A in # ( ), then press the INPUT key.
# ( A) X ( ) Z ( )
"ABS." is highlighted, and the mode becomes the absolute
value setting mode.
(Note) The mode is held even if the screen is changed or the power is turned OFF.
