6. Operation Panel Switch Functions
6.15 Handle Interruption
II - 27

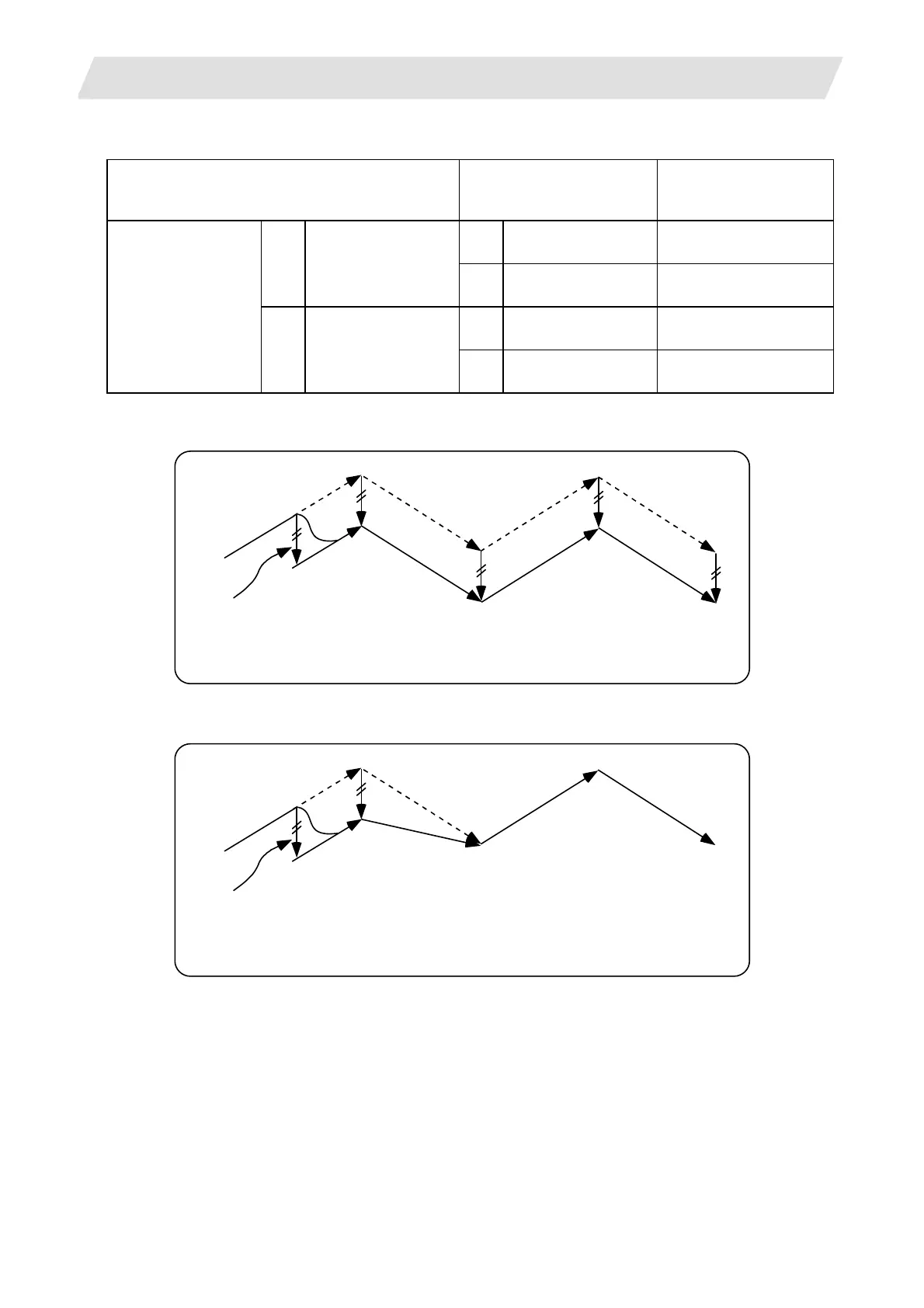

Absolute value update conditions for automatic handle interruption
Absolute data update
MONITOR 2 screen
manual interruption
distance display
ON
"1"
Absolute value is
updated.
Not updated.
Parameter
"1145 I_abs"
ON
"1"
Parameter
"#1061 intabs"
(Every axis)
OFF
"0"
Absolute value is not
updated.
Updated.
ON
Absolute value is
updated.
Not updated.
OFF
"0"
PLC interface
manual absolute
switching
OFF
Absolute value is not
updated.
Updated.
Path after interruption
Program path
(G90 X_ Y_ ;)
（Absolute value mode, program absolute
value update invalid)
Path after interruption
Distance of interruption by manual handle
Program path
(G90 X_ Y_ ;)
Path after interruption
Distance of interruption by manual handle
（Absolute value mode, program absolute
value update valid, single block operation)
Path after interruption
