6. Operation Panel Switch Functions
6.15 Handle Interruption
II - 29

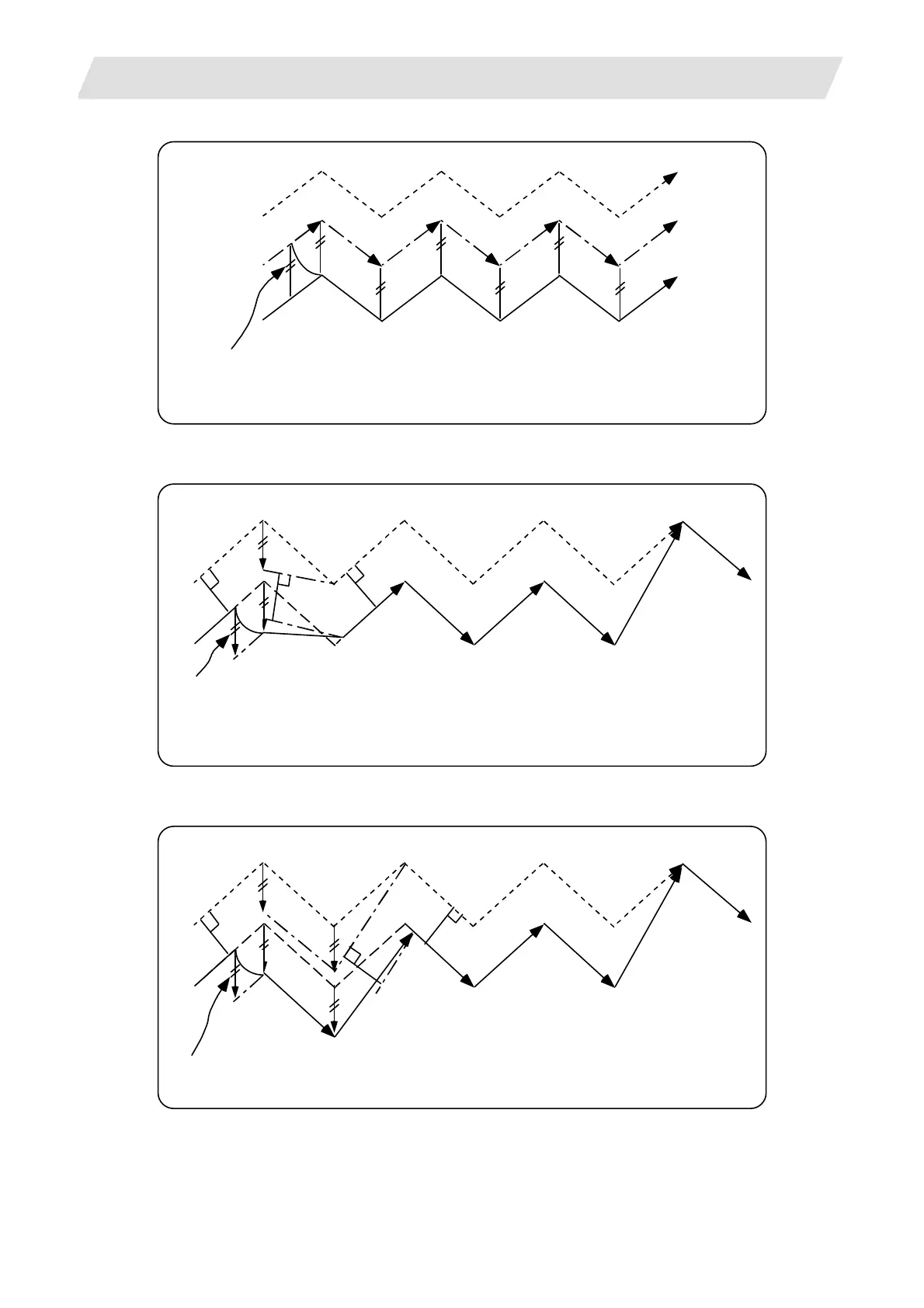

Locus after interruption
Path after interruption
(Incremental value mode, continuous operation)
G42
Tool path
Distance of interruption by
manual handle
Program path
Path after interruption
G42
Tool path
G40
R
R
Tool
radius
Program path
Distance of interruption by
manual handle
Path after interruption
(Absolute value mode, program absolute
value update valid, single block operation)
R
G40
R
R
R
Program path
Tool
radius
G42
Path after interruption
(Absolute value mode, program absolute
value update valid, continuous operation)
Tool path
Path after interruption
Distance of interruption by
manual handle
