Mitsubishi GOT1000 GT15 User Manual

19 - 9
19.6 Backlight Replacement
19.6.2 Replacement procedure of backlight

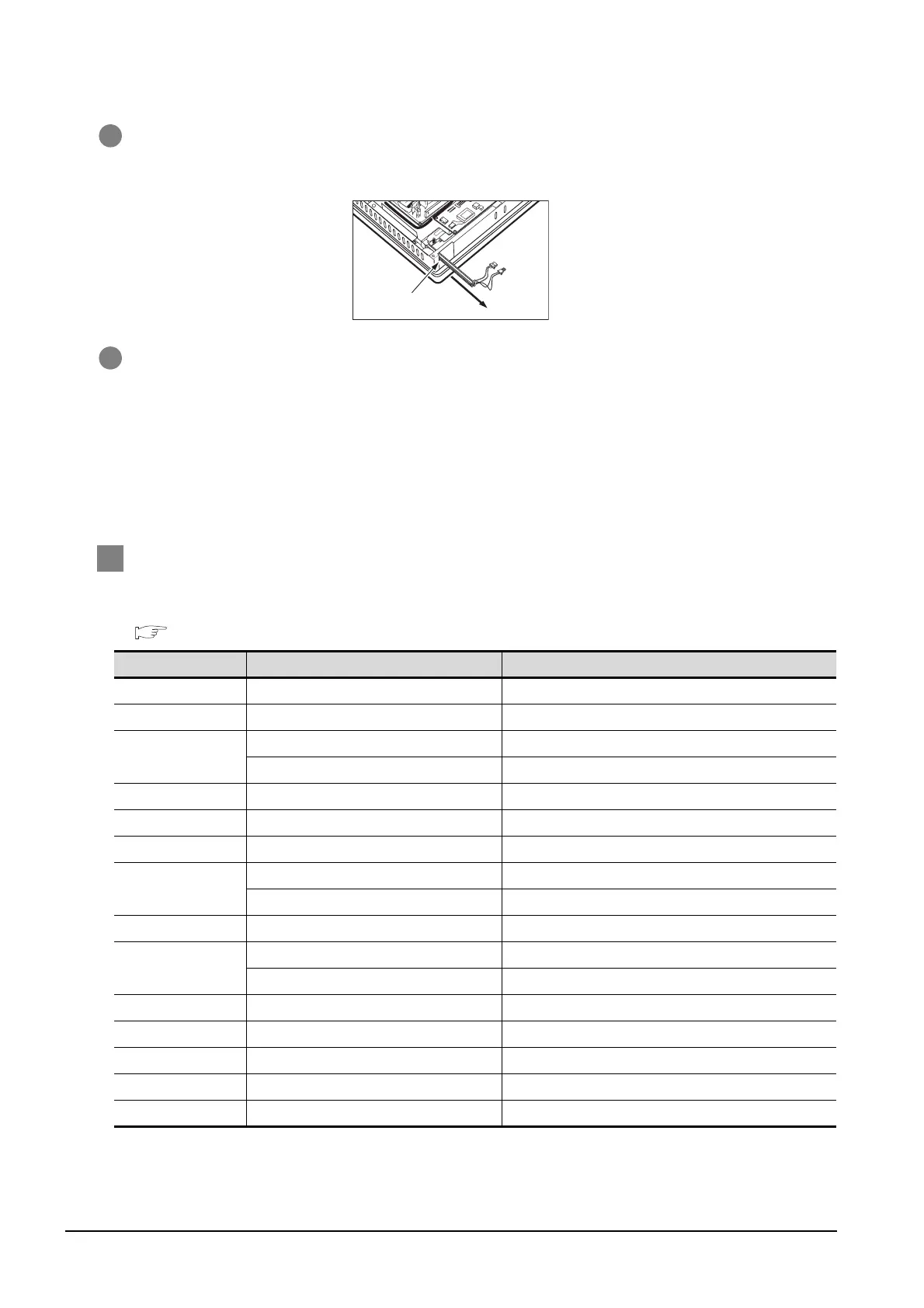

8 Pull the upper backlight out through the hole for backlight replacement on the upper part of the GOT.
In the same way, pull the lower backlight out through the hole for backlight replacement on the lower
part of the GOT.
9 Mount a new backlight in the reverse procedure of removal.
When inserting a new backlight through the hole for backlight replacement of the GOT main unit, take
care not to damage the sheath of the cable.
And push the backlight in securely until the projection part of the rubber holder is fixed.
Also assemble the case in the reverse procedure of disassembly. (Tighten the GOT rear fixing screws
within the torque range of 0.36 to 0.48N·m).
When mounting the case, take care of not biting the cables between the case and the GOT.
2 For GT15-80SLTT, GT15-70SLTT, GT15-70VLTT, GT15-70VLTN
Backlight replacement varies with the hardware version of the applicable GOT.
Before replacement, please confirm the hardware version.
( Appendix 2 Confirming of Versions and Conformed Standards)
Type Hardware version Reference
GT1585V-STBA A (March, 2006) or later (1) Replacement procedure 1
GT1585V-STBD A (May, 2006) or later (1) Replacement procedure 1
GT1585-STBA
B (April, 2005) or earlier (2) Replacement procedure 2
C (March, 2005) or later (1) Replacement procedure 1
GT1585-STBD A (Jul, 2005) or later (1) Replacement procedure 1
GT1575V-STBA A (March, 2006) or later (1) Replacement procedure 1
GT1575V-STBD A (May, 2005) or later (1) Replacement procedure 1
GT1575-STBA
B (April, 2005) or earlier (2) Replacement procedure 2
C (March, 2005) or later (1) Replacement procedure 1
GT1575-STBD A (Jul, 2005) or later (1) Replacement procedure 1
GT1575-VTBA
D (April, 2005) or earlier (2) Replacement procedure 2
E (March, 2005) or later (1) Replacement procedure 1
GT1575-VTBD A (Jul, 2005) or later (1) Replacement procedure 1
GT1575-VNBA A (Sep, 2005) or later (1) Replacement procedure 1
GT1575-VNBD A (Sep, 2005) or later (1) Replacement procedure 1
GT1572-VNBA A (Sep, 2005) or later (1) Replacement procedure 1
GT1572-VNBD A (Sep, 2005) or later (1) Replacement procedure 1
Hole for backlight
replacement

Mitsubishi GOT1000 GT15 Specifications

General

Display Size	10.4 inches
Display Type	TFT Color LCD
Resolution	640 x 480 pixels
Touch Panel Type	Analog resistive film
Power Supply	24V DC
Backlight	LED
Protection Rating	IP65 (front panel)
Interface	RS-232, RS-422/485, USB
Operating Temperature	0°C to 50°C
Memory	9 MB
Storage Temperature	-20 to 60°C
Display Colors	256 colors
