19.6 Backlight Replacement
19.6.2 Replacement procedure of backlight

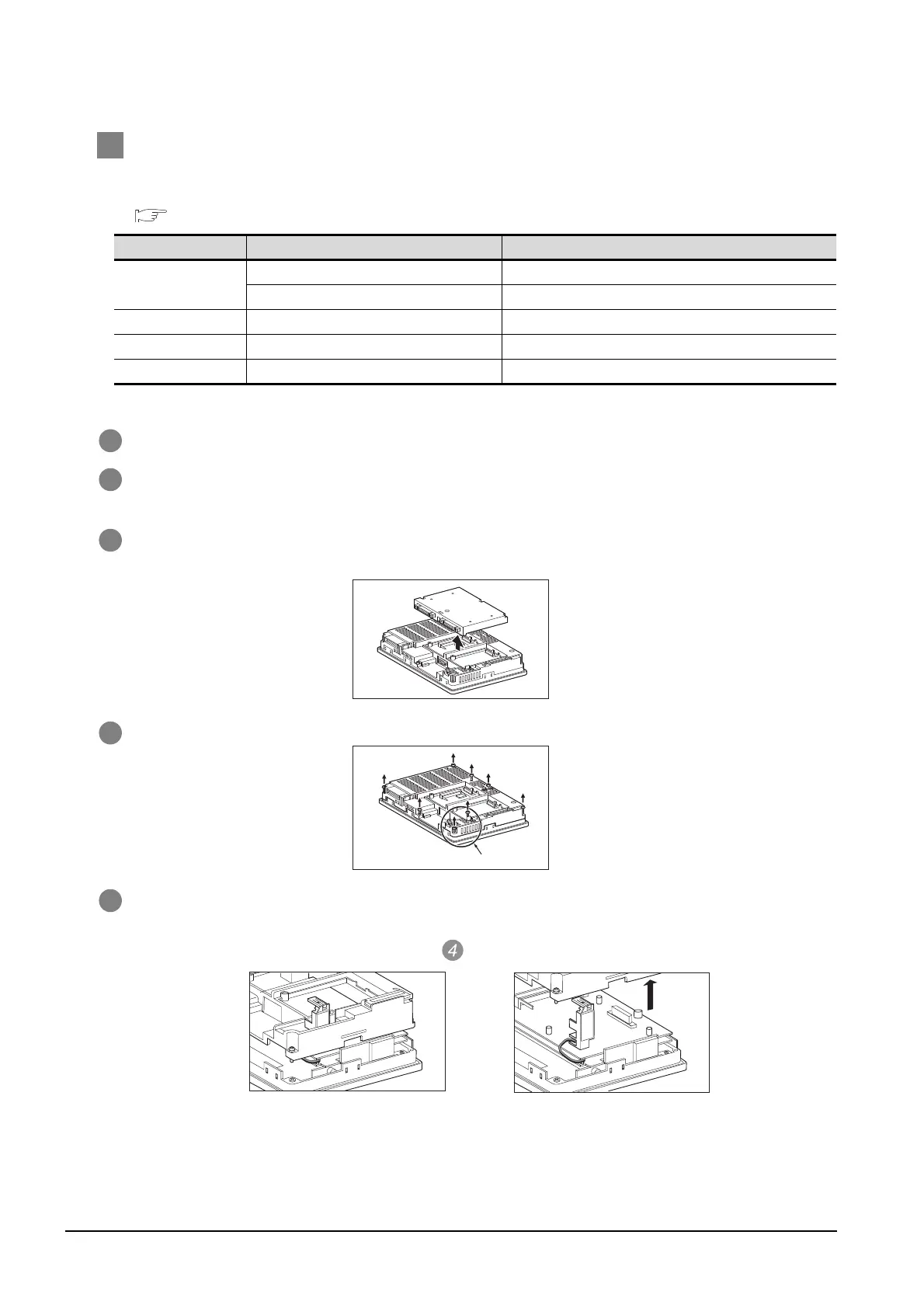

3 For GT15-60VLTT or GT15-60VLTN
Backlight replacement varies with the hardware version of the applicable GOT.
Before replacement, please confirm the hardware version.
( Appendix 2 Confirming of Versions and Conformed Standards)
(1) Replacement 1
1 Power off the GOT.
2 Disconnect the power supply cable and communication cable.
Remove the GOT from the control panel.
3 Remove the extension unit cover on the right side of the GOT.
Remove the extension unit, e.g. bus connection unit, if it is mounted.
4 Remove the GOT rear fixing screws (8 pcs.) with a screwdriver.
5 Remove the case after passing the battery holder through the mounting hole.When removing, take care
of not cutting the cable of the battery holder.
Type Hardware version Reference
GT1565-VTBA
D (April, 2005) or earlier (2) Replacement procedure 2
E (March, 2005) or later (1) Replacement procedure 1
GT1565-VTBD A (Jul, 2005) or later (1) Replacement procedure 1
GT1562-VNBA A (Sep, 2005) or later (3) Replacement procedure 3
GT1562-VNBD A (Sep, 2005) or later (3) Replacement procedure 3
(Expanded figure of part A in )
A
To Next Page
