Chapter 6 INSPECTION AND REPAIR OF BASIC ENGINE
4.10.2 Connecting Rod Bushing - Remove
(1) Apply engine oil to inner surface of connecting rod
bushing.
(2) Attach the collar A to the mandrel and insert the assem-
bly into the connecting rod bushing while aligning the
match mark (red scribed line) on the collar A with that
on the adapter.
(3) With pressing machine, apply pressure slowly on man-
drel head to push-out the connecting rod bushing.

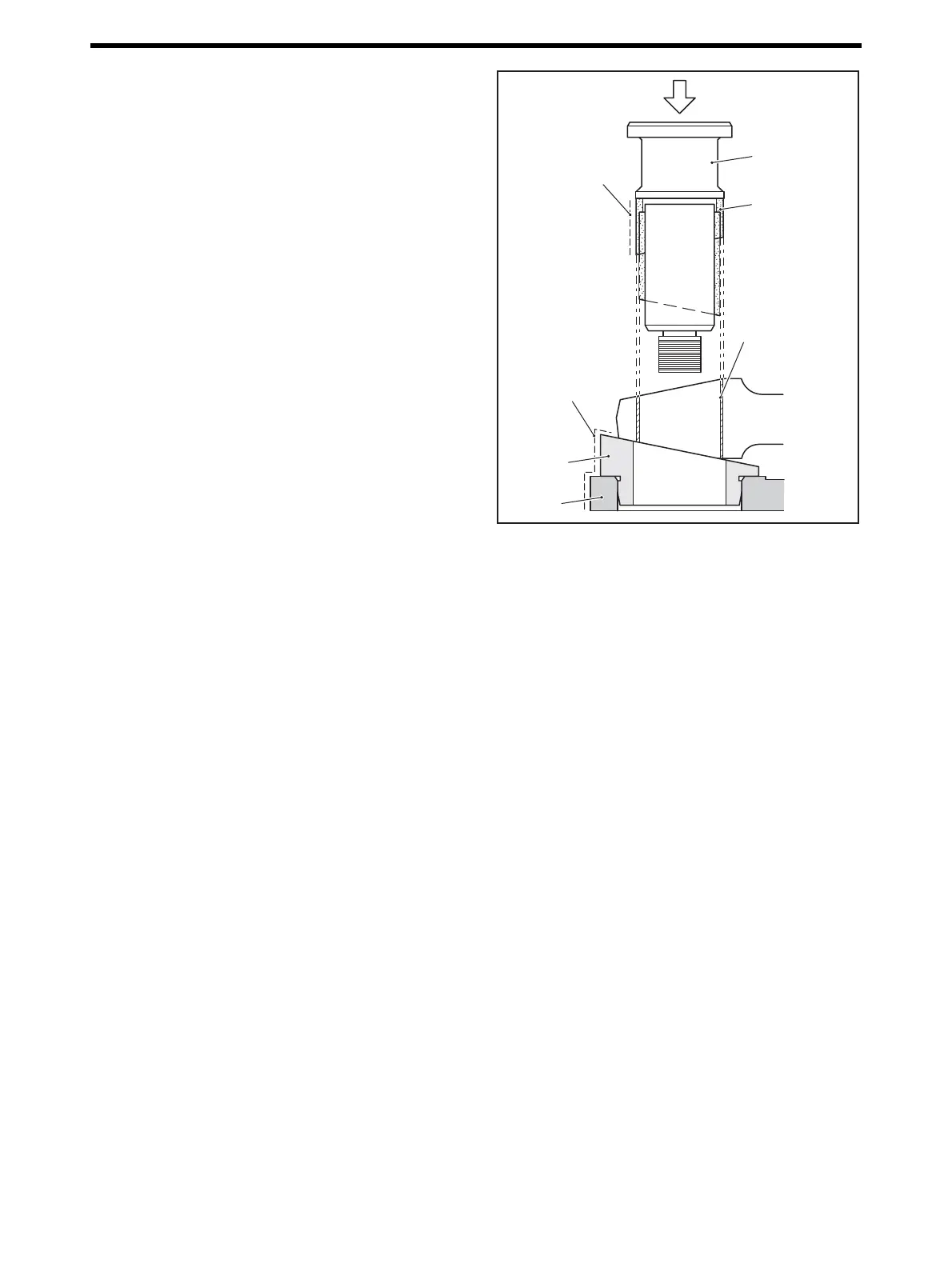

Connecting Rod Bushing Installer - Use (3)
Mark on collar A
(red stamp mark)
Mark on adapter
(red stamp mark)
Mandrel
Collar A
Adapter
Base
Connecting rod
bushing
