Mitsubishi S12A2 - Fuel System Disassembly, Inspection, and Assembly

8-14
Chapter 8 FUEL SYSTEM
2. Fuel System - Disassemble, Inspect and Assemble

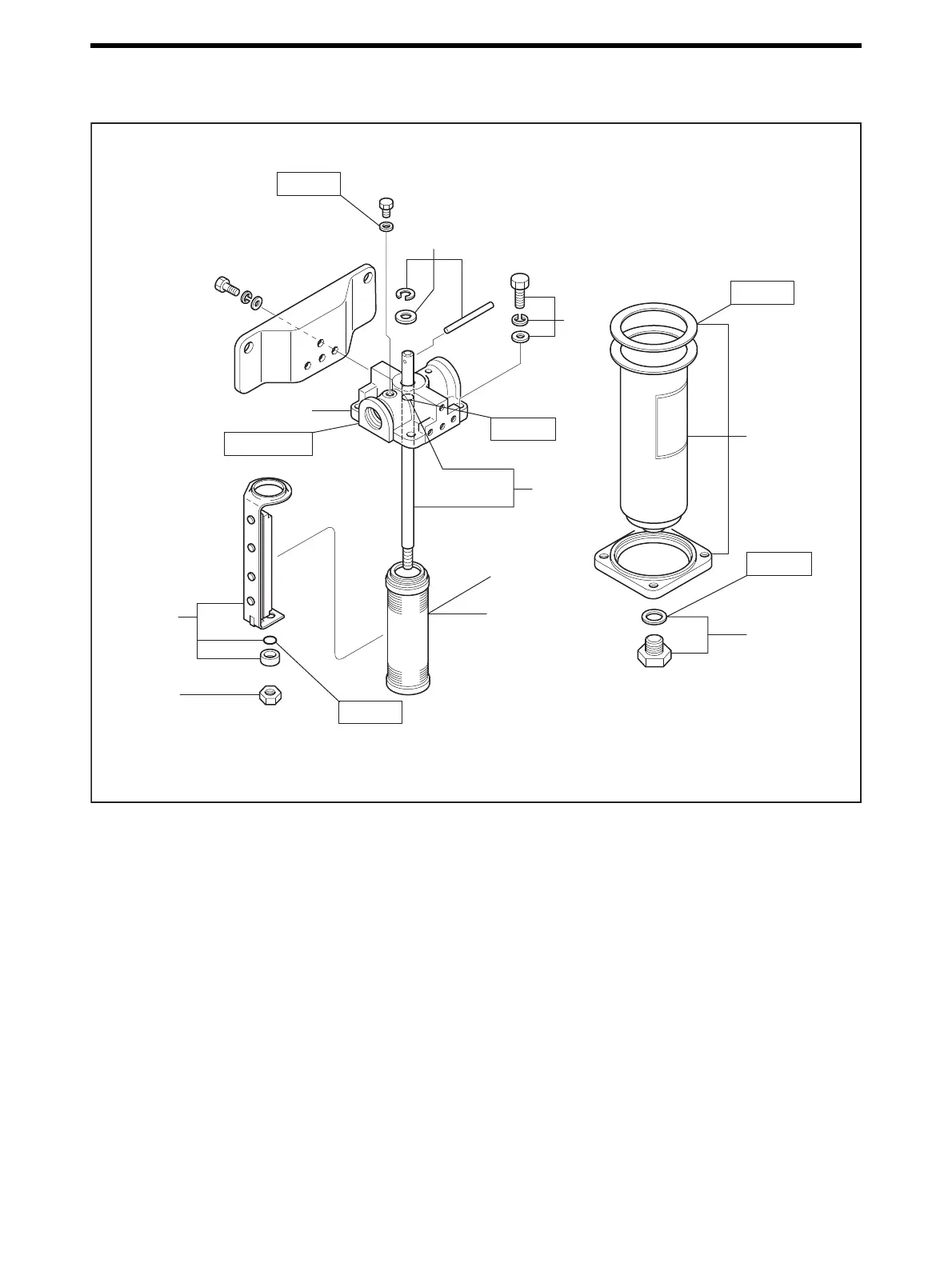

2.1 Fuel Filter (Wire Element) - Disassemble, Inspect and Assemble
Fuel Filter (Wire Element) - Disassemble, Inspect and Assemble
Cracks, flaw
Replace
Replace
Replace
Replace
Replace
20 N·m
{2.0 kgf·m}
[14.7 lbf·ft]
3
7
1
2
6
8
10
4
5
Disassembling Sequence
1 Plug, packing
2 Bolt, spring washer, plain washer
3 Flange, lower case, packing
4 Nut
5 Plate, scraper, collar, O-ring
6 Element
7 Rod, O-ring
8 Snap ring, washer, handle
9 Air vent plug
10 Cover
