10-11
Chapter 10 COOLING SYSTEM
1.5

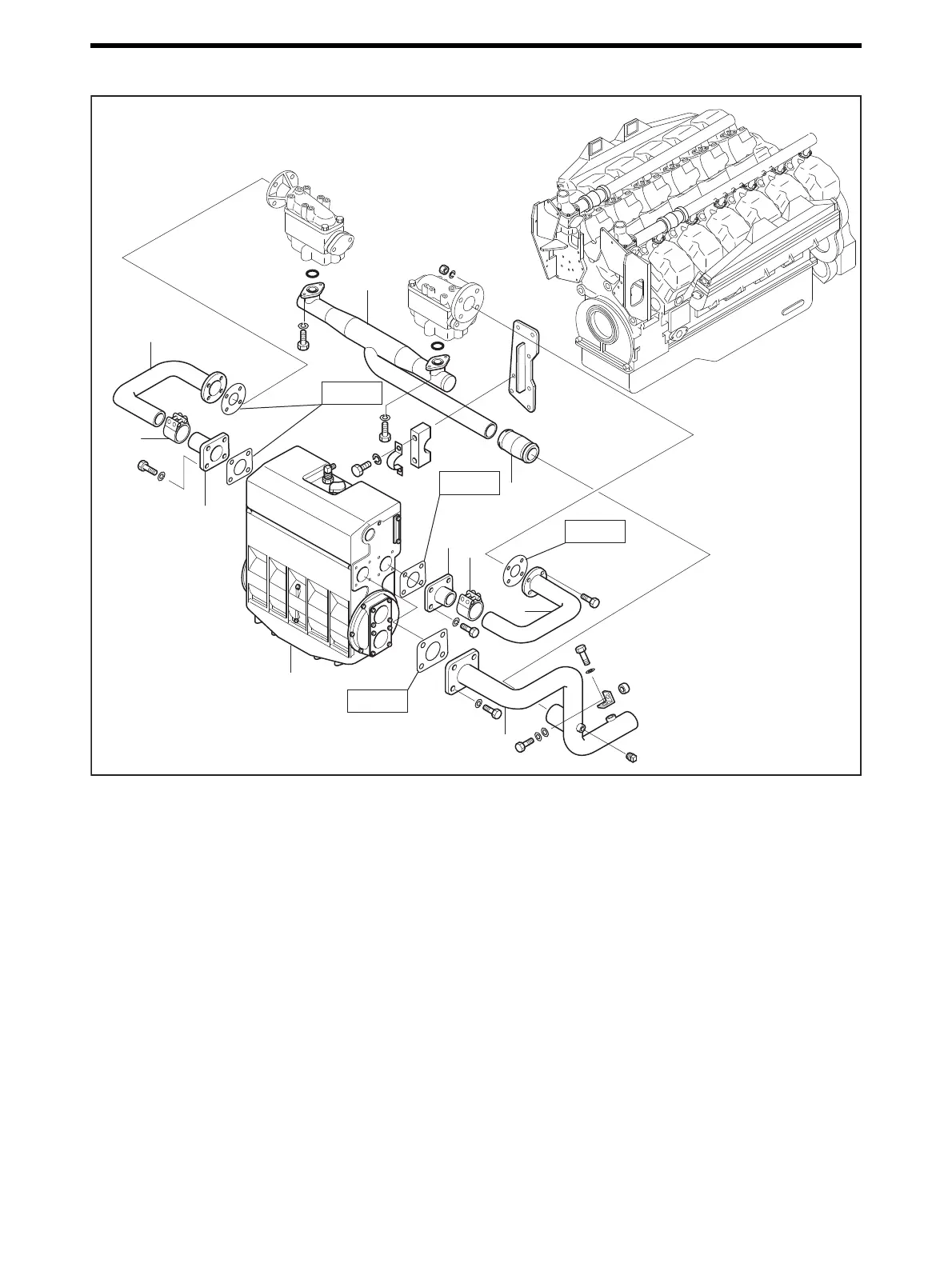

Heat Exchanger and W
ater Pipe - Remove and Inspect
Heat Exchanger and W
ater Pipe - Remove and Inspect
2
3
9
10
4
7
6
5
1
8
MPTK spec 2
W
ater pump
Replace
Replace
Replace
Replace
Removing Sequence
1
Strap coupling
2
Water pipe
3
Water pipe
4
Water pipe
5
Coupling
6
Strap coupling
7
Water pipe
8
Water pipe
9
Bypass pipe
10
Heat exchanger (approx. 71 kg
[157 lb])
252
254
