10-3
Chapter 10 COOLING SYSTEM
Chapter 10 COOLING SYSTEM
1.

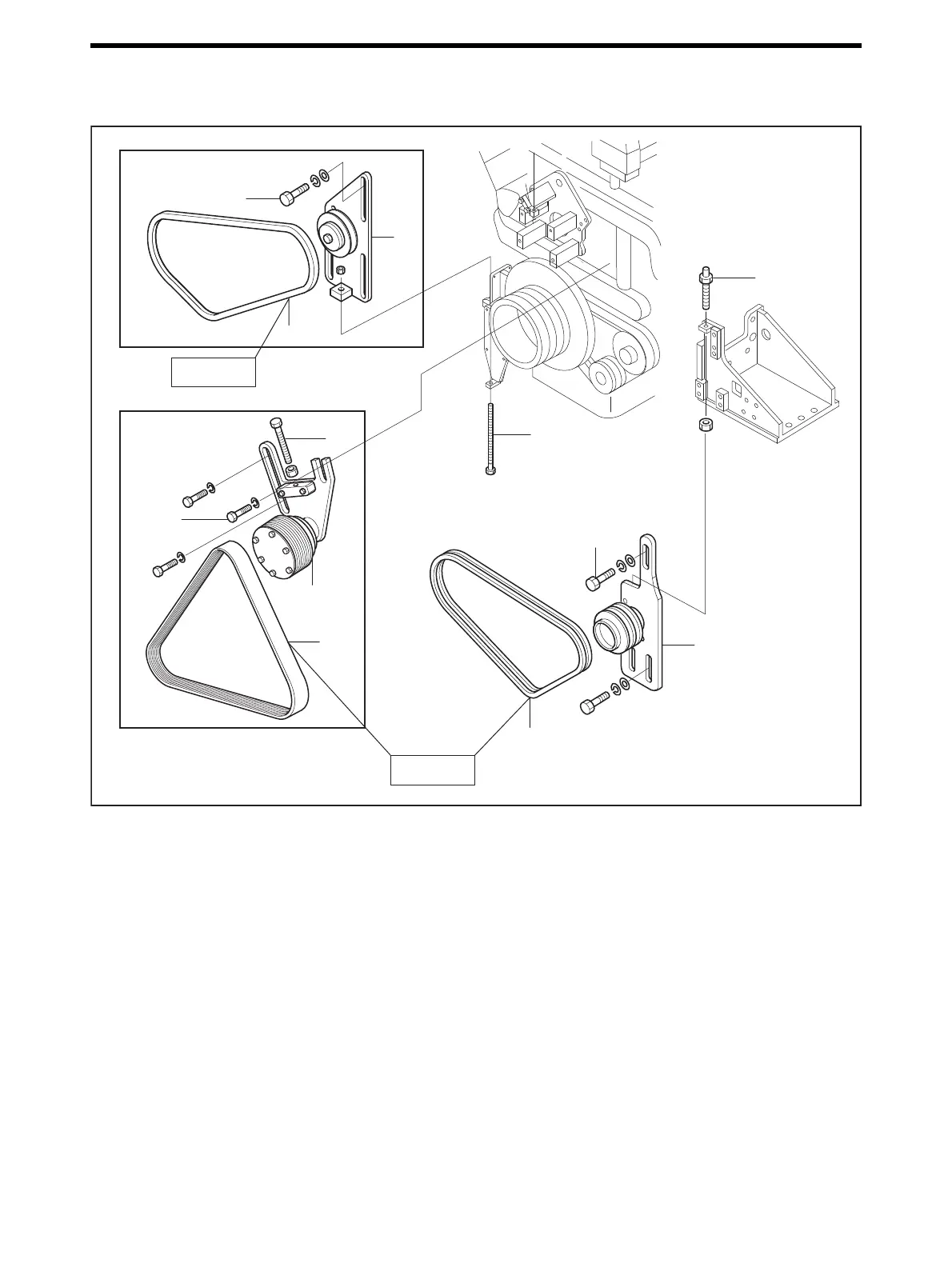

Cooling System - Remove and Inspect
1.1
T
ension Pulle
y - Remove and Inspect (W
ater pump side)
T
ension Pulley - Remove and Inspect (W
ater pump side)
PT
A
W spec
PT
A2 spec
1
2
3
9
10
11
12
4
5
6
7
8
Crack, wear
Crack, wear
Removing Sequence
1
Tension bolt
2
Mounting bolt
3
Belt
4
Tension pulley assembly
5
Tension bolt
6
Mounting bolt
7
Belt
8
Tension pulley assembly
9
Tension bolt
10
Mounting bolt
11
Belt
12
Tension pulley assembly
244
246
