Chapter 1 GENERAL
3. Contents of Plate and Label

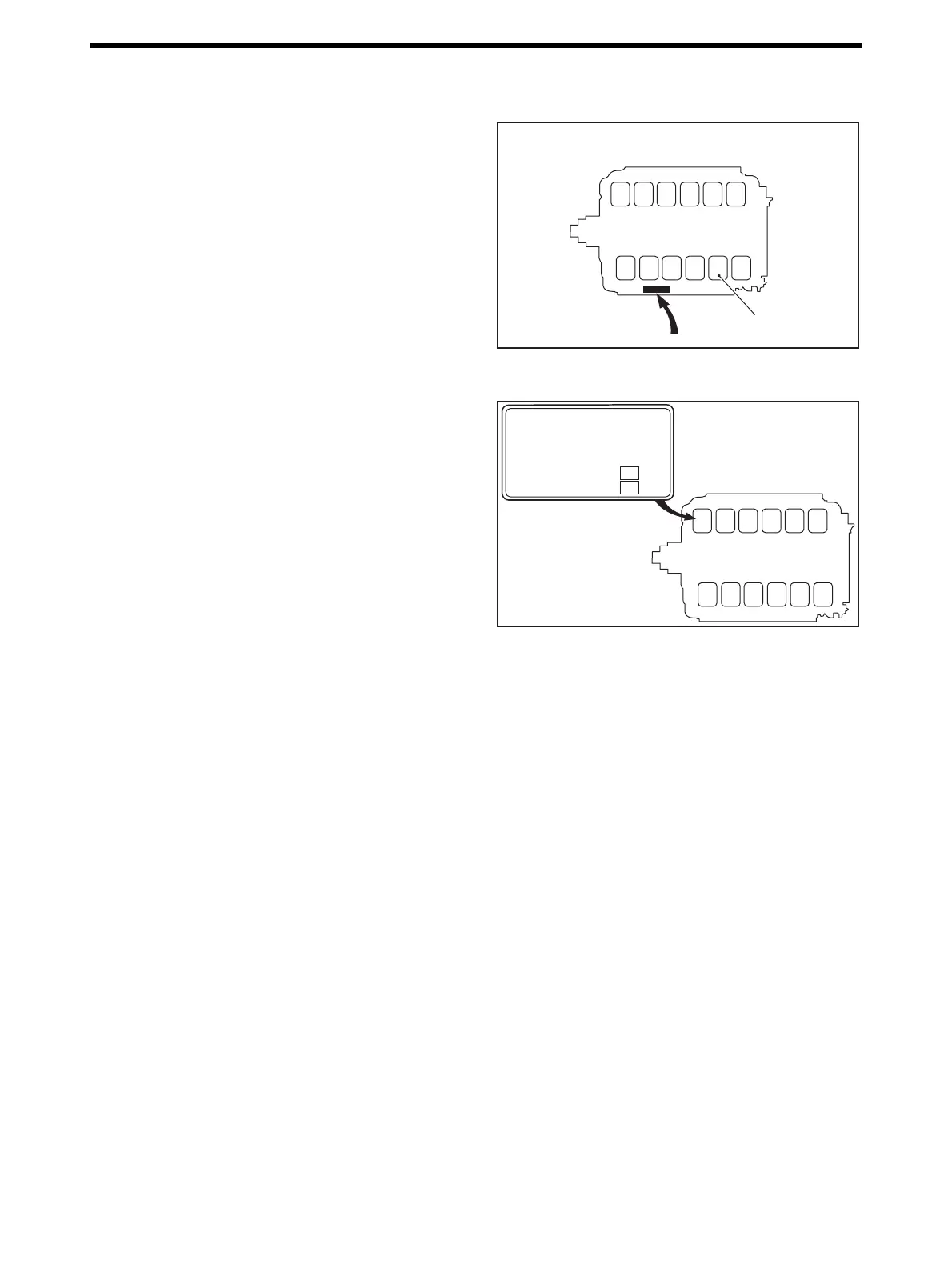

3.1 Name Plate
The name plate is attached on the lateral side of the engine,
and shows the following information:
Engine serial number
Manufactured date
Total displacement
Engine output
Rated speed
Name Plate
3.2 Caution Plate
The caution plate is attached to the top face of the rocker
cover of No. 1 cylinder and shows the following informa-
tion:
Valve clearance
Firing order
Fuel injection timing
Connecting rod weight rank
Caution Plate
3.3 Emissions Certification Label
The emission certification label that shows compliance with
emission requirements is attached to the engine.
12
78 9101112
345 6
Front Rear
Left
Right
Cylinder No.
12
789101112
3456
VALVE CLEARANCE(COLD)
INLET
FIRING ORDER
FUEL INJECTION TIMING
EXHAUST
0.5
0.4
mm
mm
1-12-5-8-3-10-6-7-2-11-4-9
BTDC
°
CON-ROD RANK
