Mitsubishi S12A2 - Air Cooler - Disassemble, Inspect and Assemble (PTA2 Spec)

11-12
Chapter 11 INLET AND EXHAUST SYSTEMS
Air cooler - Disassemble, Inspect and Assemble
3
2
Replace
1
The gap between the element
and plate must be sealed with
KE45-W (Shin-Etsu Chemical Co.)
or equivalent silicon sealant.
PTA2 spec
The gap between the element
and plate must be sealed with
KE45-W (Shin-Etsu Chemical Co.)
or equivalent silicon sealant.
Replace
Replace
Replace

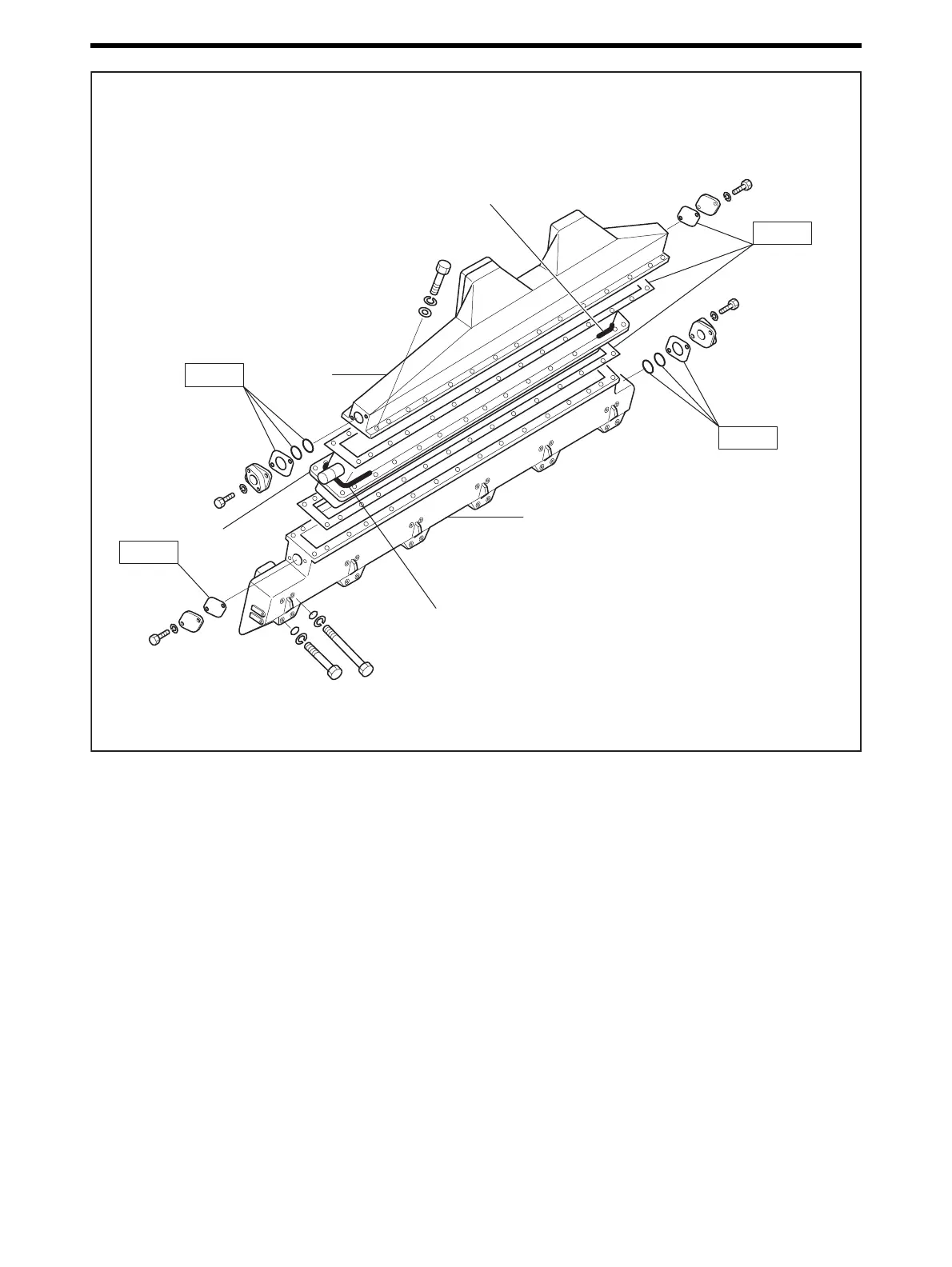

Disassembling Sequence
1 Air cooler cover 2 Air cooler element
(approx. 33 kg [73 lb])
3 Inlet manifold
(approx. 18 kg [40 lb])
