7-29
Chapter 7 ASSEMBLY OF BASIC ENGINE

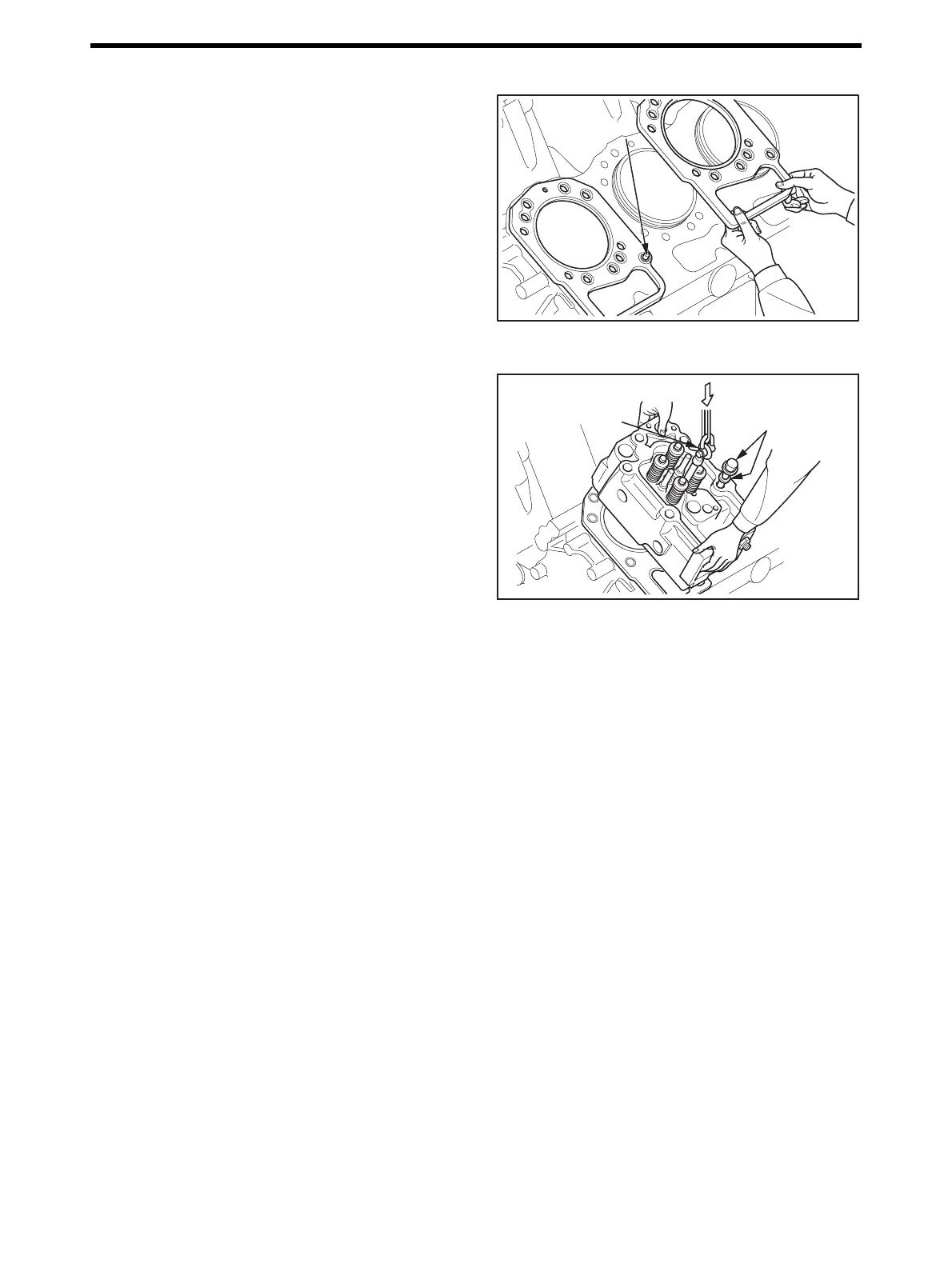

5.5 Cylinder Head Gasket - Install
(1) Wipe off oil, grease and other contamination from the
cylinder head bottom surface and crankcase top sur-
face.
(2) Install the cylinder head gasket coated with liquid gas-
ket onto crankcase with dowel pin and hole in align-
ment.
Cylinder Head Gasket - Install
5.6 Cylinder Head Assembly - Install
(1) Apply engine oil to the cylinder head bolt threads, bolt
seats and washer surfaces.
Note: Do not apply excessive amount of engine oil. Remove
the excess before assembling.
(2) Install the eye nut to stud bolt, and lift the cylinder head
assembly.
(3) Slowly lower the cylinder head, and place the cylinder
head properly by aligning the holes with the dowel
pins, and tentatively tighten the cylinder head bolts
except long ones.
Cylinder Head Assembly - Install
Dowel pin
Dowel pin
Application of
engine oil
Eye nut
P/N:08014-00003
(M12 × 1.25 mm)
To Next Page
