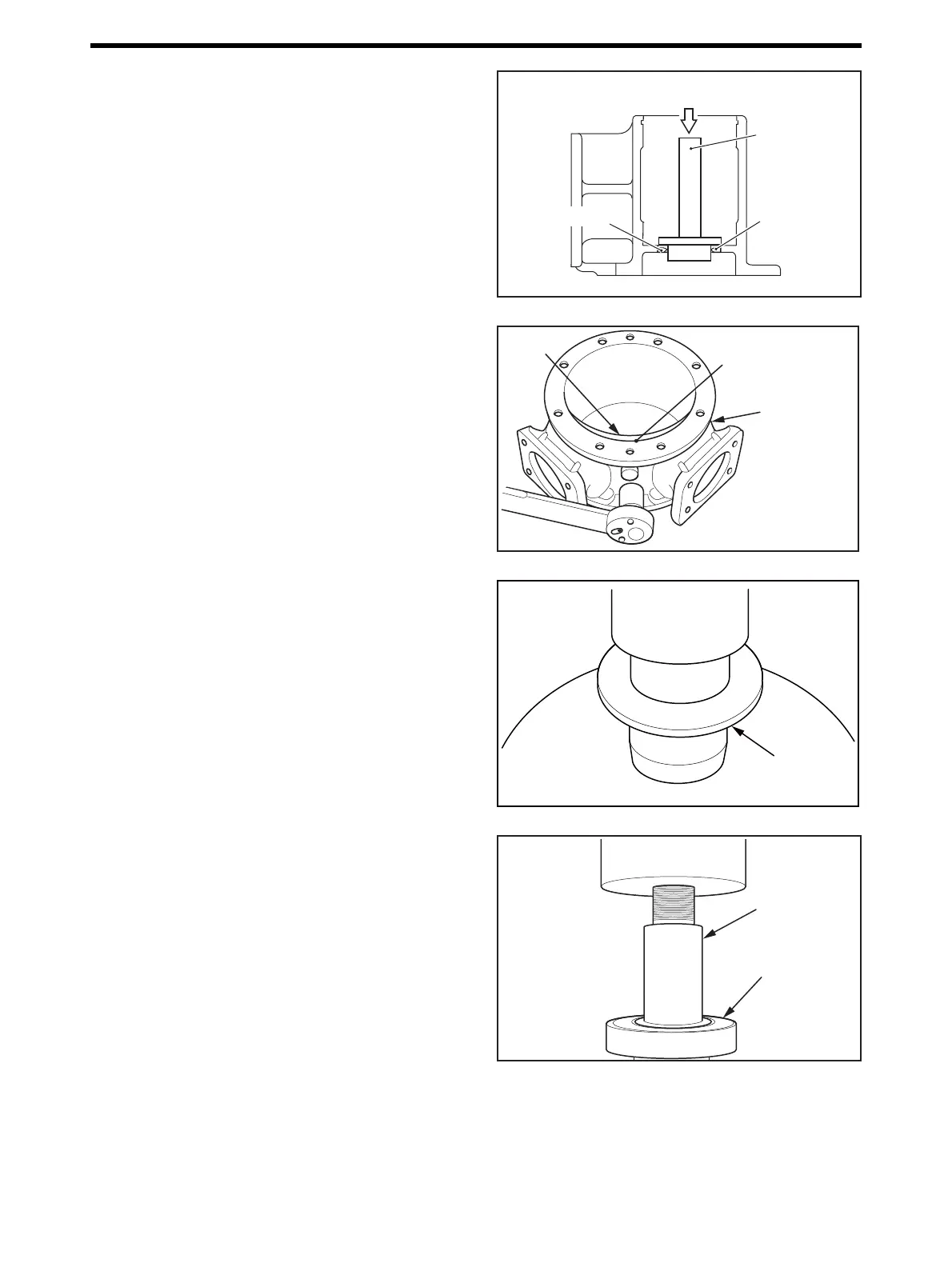

2.14.1 Oil Seal - Install
(1) Press-fit the oil seal to the holder with the installer.
Note: Always replace the oil seal with a new one.
(2) Apply grease to the oil seal groove and lips.
Oil Seal - Install
2.14.2 Cam - Install
(1) Apply sealant (ThreeBond 1102) to the mating surfaces
of cam and case.
(2) Install the cam to case, and tighten the bolt to the speci-
fied torque.
Cam - Install
2.14.3 Unit Seal (Stationary Side) - Install
(1) Apply sealant (ThreeBond 1102) to the outer circum-
ference of unit seal (stationary side.)
(2) Hand-press the unit seal slowly into the bushing with
the unit seal installer.
Note:(a) Do not use a hummer or mallet to install.
(b) Do not damage the sliding surface of the unit seal.
Unit Seal (Stationary Side) - Install
2.14.4 Bearing - Install
(1) Tap-in the bearing squarely along the shaft center line.
(2) Apply grease on bearing rolling faces.
Bearing - Install
Installer
Oil seal
Apply grease
Case
Cam
15 ± 1.0 N·m
{1.5 ± 0.1 kgf·m}
[11.1 ± 0.74 lbf·ft]
Apply ThreeBond
1102 to mating faces
Bushing
Bearing
Shaft
