8-25
Chapter 8 FUEL SYSTEM
2.6

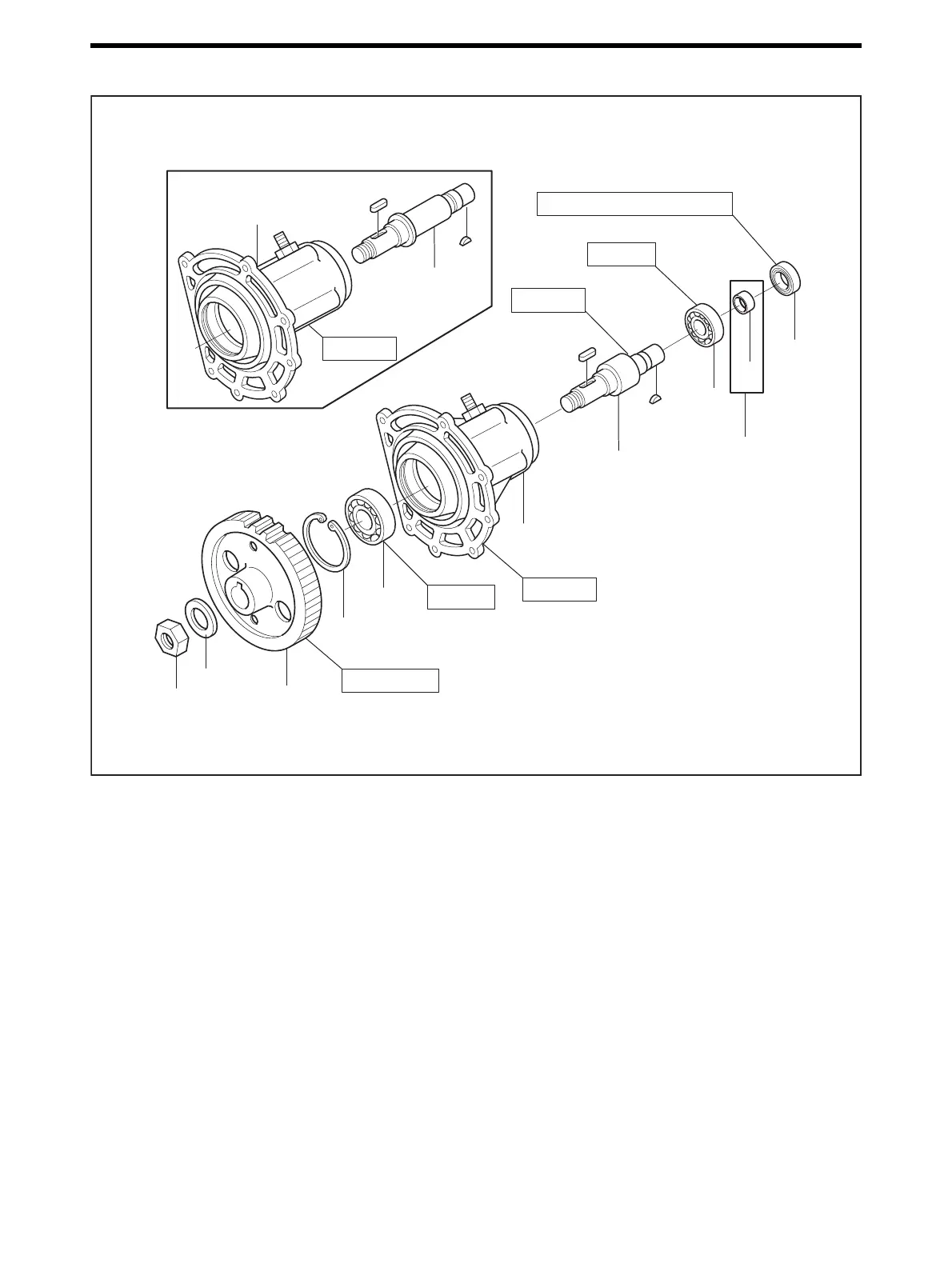

Fuel Injection Pump Accessory Drive - Disassemble and Inspect
Fuel Injection Pump Accessory Drive - Disassemble and Inspect
4
6
1
10
5
2
7
8
3
9
Rotation
Deformation, lip surface wear
Fuel injection pump
S7S spec
Fuel injection pump
S3S spec
Fuel injection pump S7S spec
Wear
, flaw
Peeling, wear
Rotation
5
10
Wear
, flaw
Wear
, flaw
Disassembling Sequence
1
Nut
2
Wa
sher
3
Fuel injection pump gear
4
Snap ring
5
Drive shaft
6
Ball bearing
7
Ball bearing
8
Oil seal
9
Sleeve
10
Drive case
196
198
