Chapter 8 FUEL SYSTEM
2.11 Governor Drive - Assemble

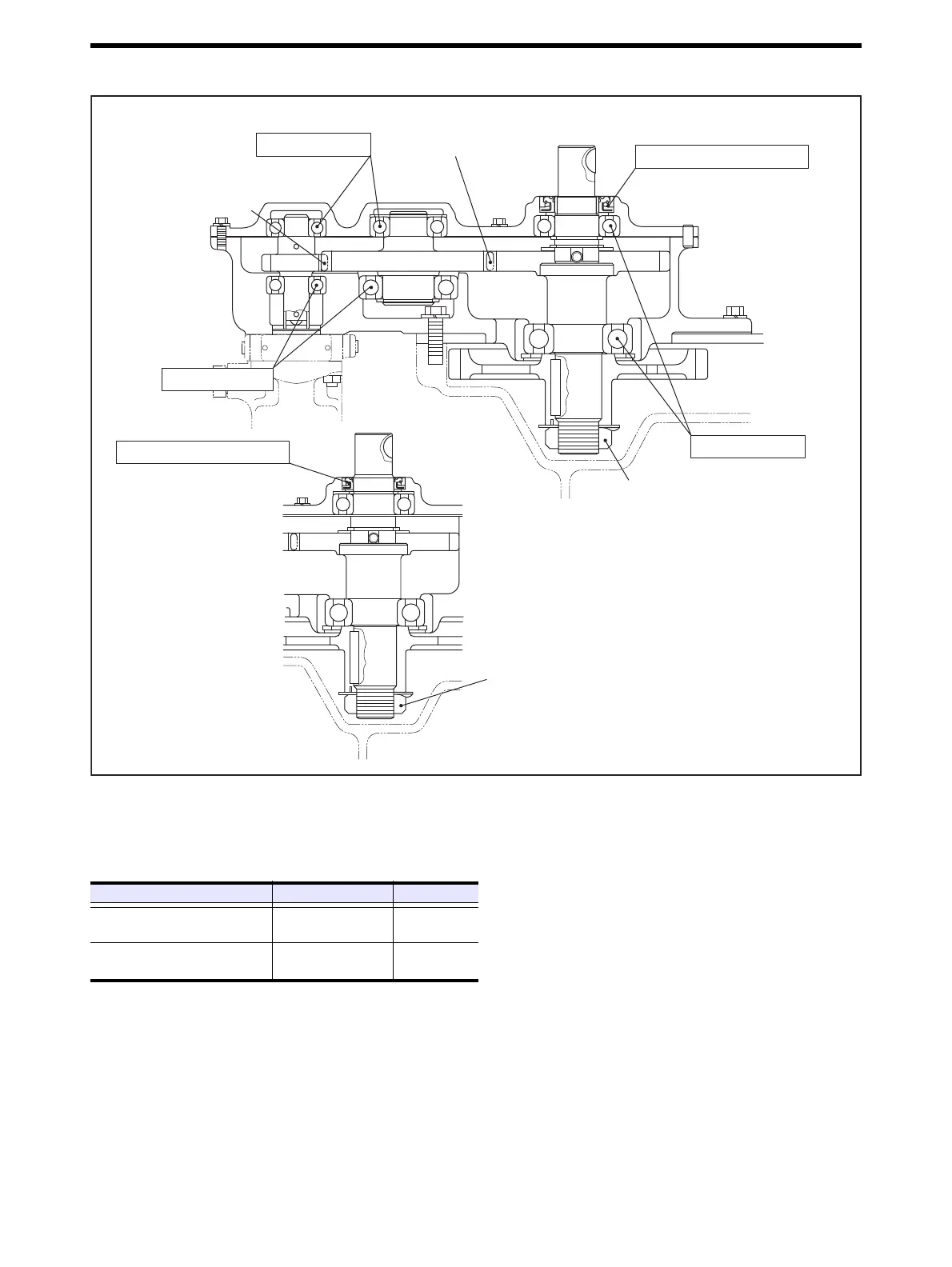

Governor Drive - Assemble
2.11.1 Backlash - Measure
Measure the backlash between each gear. If the value exceeds the limit, replace the gears with new ones.
Apply engine oil
Apply engine oil to the lip
Apply engine oil to the lip
Apply engine oil
Apply engine oil
294±15 N·m
{30±1.5 kgf·m}
[217±11 Ibf·ft]
Backlash
0.12 to 0.18 mm
[0.0047 to 0.0071 in.]
294±15 N·m
{30±1.5 kgf·m}
[217±11 Ibf·ft]
Backlash
0.12 to 0.18 mm
[0.0047 to 0.0071 in.]
Fuel injection pump
S7S spec
Fuel injection pump
S3S spec
Item Standard value Limit value
Backlash between drive gear and
idler gear
0.12 to 0.18 mm
[0.0047 to 0.0071 in.]
0.50 mm
[0.0197 in.]
Backlash between driven gear
and idler gear
0.12 to 0.18 mm
[0.0047 to 0.0071 in.]
0.50 mm
[0.0197 in.]
