Mitsubishi S12A2 - Inlet and Exhaust Systems Disassembly, Inspection, and Assembly

11-11
Chapter 11 INLET AND EXHAUST SYSTEMS
2. Inlet and Exhaust Systems - Disassemble, Inspect and Assemble
2.1 Air cooler - Disassemble, Inspect and Assemble

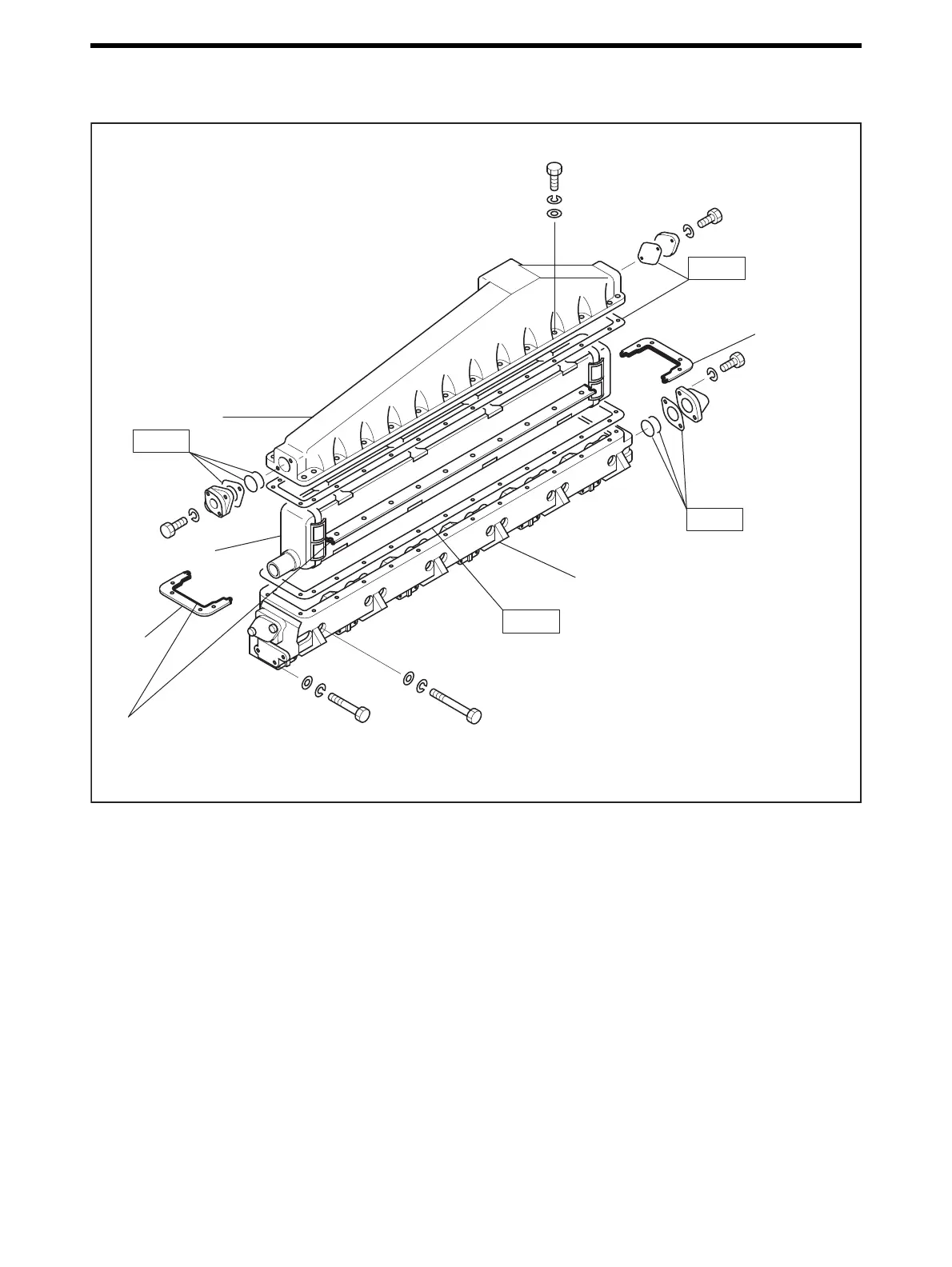

Air cooler - Disassemble, Inspect and Assemble
2
Replace
3
3
1
4
PTA,PTK,PTAW,MPTA spec
The gap between the element
and plate must be sealed with
KE45-W (Shin-Etsu Chemical Co.)
or equivalent silicon sealant. (2 places)
Replace
Replace
Replace
Disassembling Sequence
1 Air cooler cover
2 Air cooler element (approx. 30 kg [66 lb.])
3 Plate
4 Inlet manifold (approx. 15 kg [33 lb])
