8-44
Chapter 8 FUEL SYSTEM
3.3 Stop Solenoid - Install
3.3.1 Stop solenoid
RUN-ON type:
Turned ON during operation, when turned OFF, the solenoid is deactivated to stop the engine.
RUN-OFF type:
Turned OFF during operation, when turned ON, the solenoid is activated to stop the engine.
3.3.2 Stop solenoid (RUN ON type) - Adjust

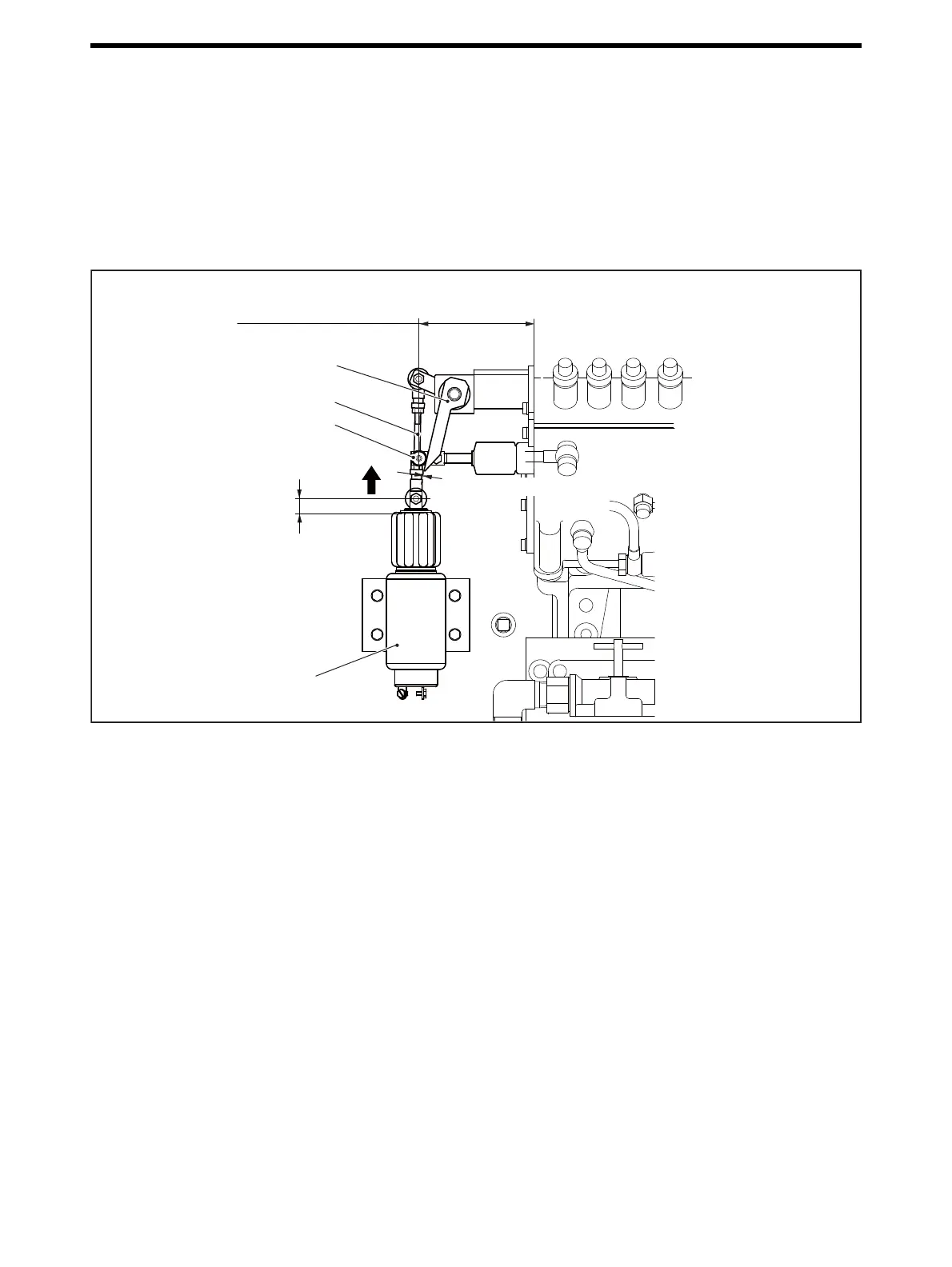

Stop solenoid (RUN ON type) - Adjust
(1) Turn off the stop solenoid (engine stop).
(2) Adjust the variable-length control link so that the distance between the follower and stop lever is 0 mm (contact).
Note: When the power of governor actuator is OFF, the fuel injection pump rack is at the no injection (engine stop) position. In
this state, the distance between the fuel injection pump case end face and the follower center is 118.5±0.5 mm
[4.665±0.019 in.].
Follower
Stop solenoid
Clearance: 0 mm (contact)
Stop solenoid OFF:
118.5 ± 0.5 mm [2.697 ± 0.020 in.]
Engine stop
condition
Engine
running condition
OFF
Adjustable length control link
RUN ON stop system spec
Play: approx. 3 mm [0.12 in.]
Stop lever
