Mitsubishi S12A2 - Air Duct and Air Cooler - Remove and Inspect (PTA2 Spec)

11-4
Chapter 11 INLET AND EXHAUST SYSTEMS
Air Duct and Air cooler - Remove and Inspect
PTA2 spec
Crack, flaw, deformation
4
4
1
3
3
2
Crack, flaw, deformation
2
1
Replace
Turbocharger
Turbocharger
Replace
Replace
Replace
Replace
Replace
Replace
Turbocharger
Turbocharger
Turbocharger
Turbocharger

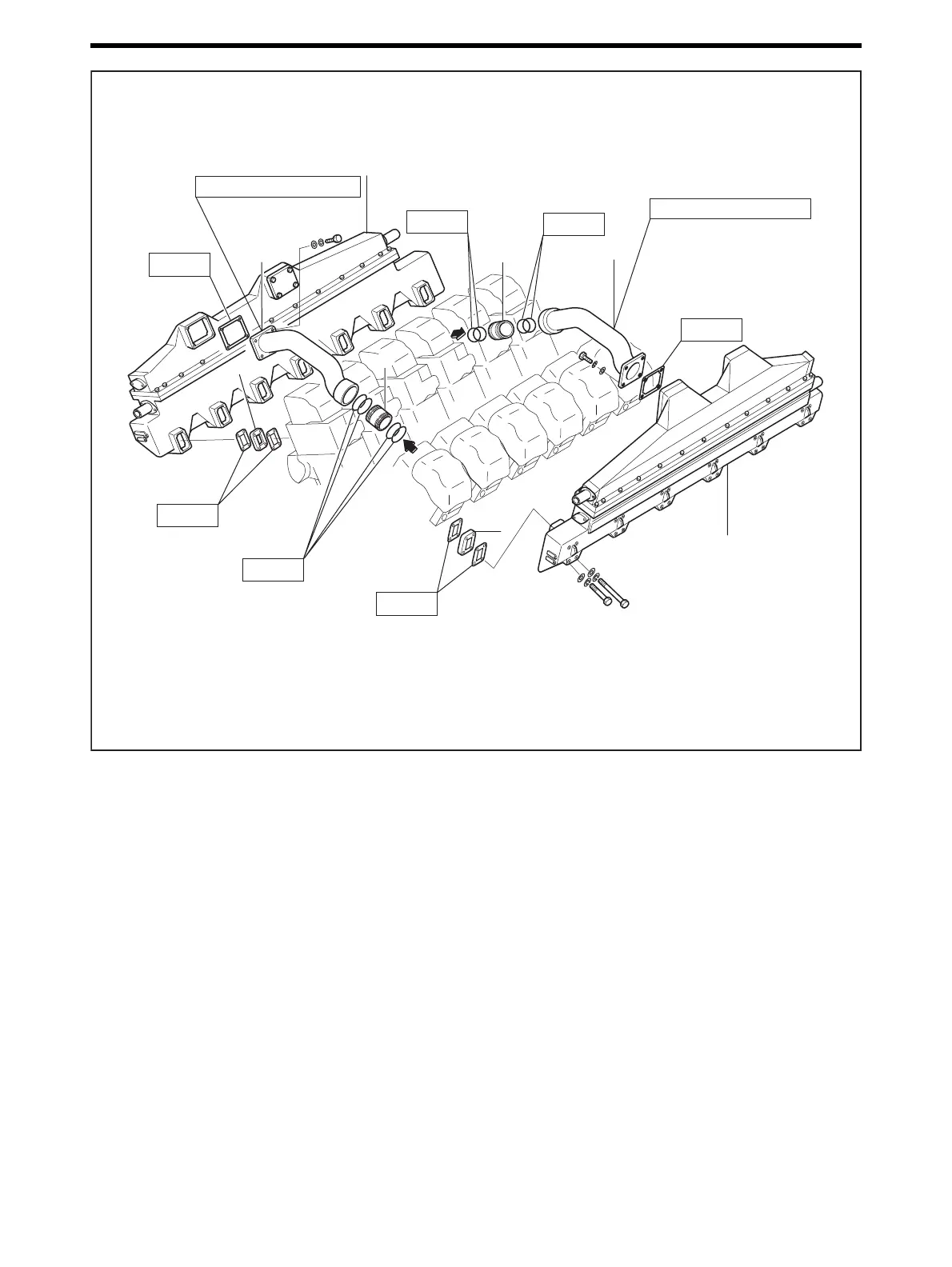

Removing Sequence
1 Connector
2 Air duct
3 Air cooler (approx. 64 kg [141 lb.])
4 Spacer
