10-33
Chapter 10 COOLING SYSTEM
2.1
1
W

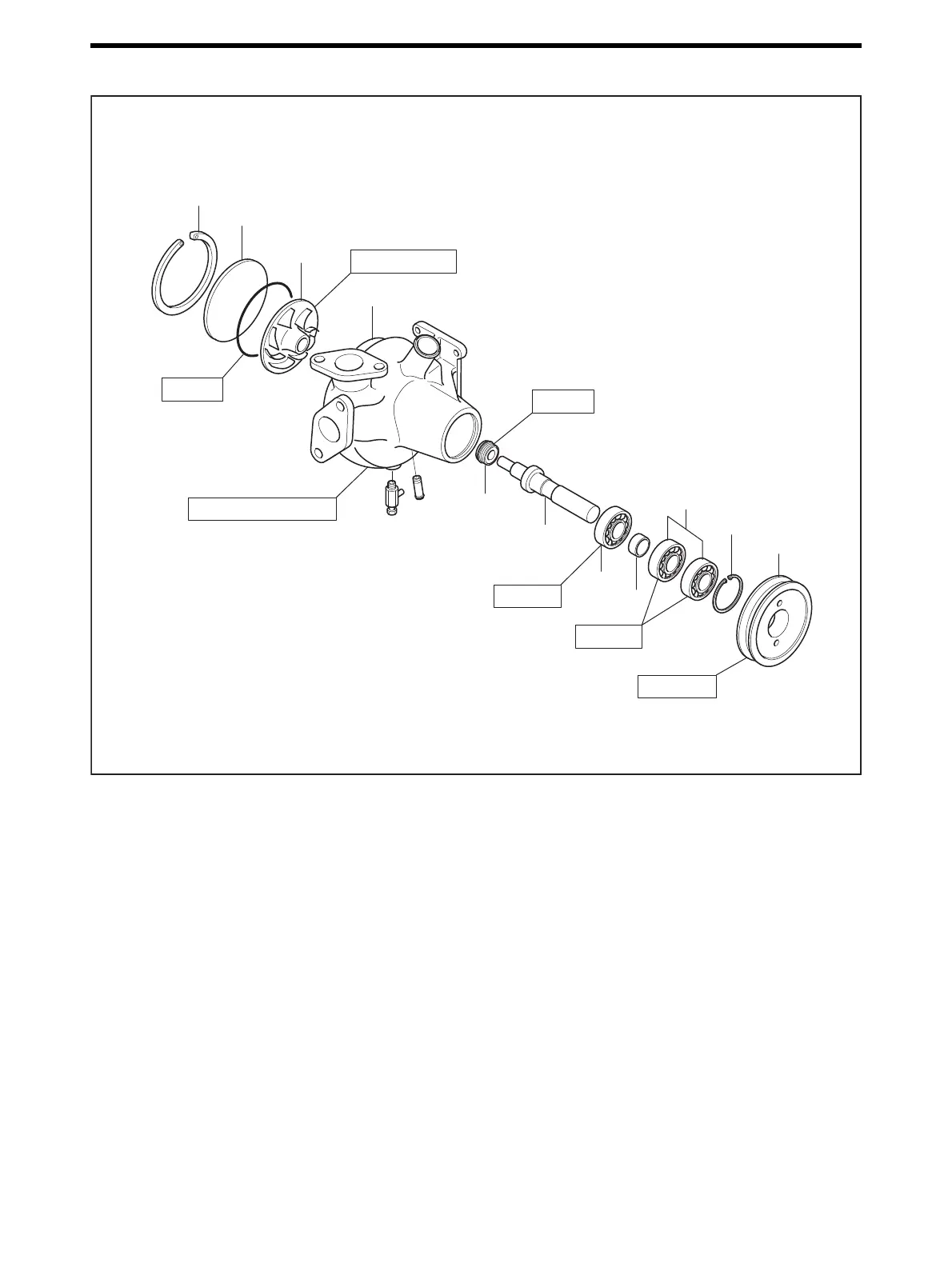

ater pump for Air cooler Cooling - Disassem
ble and Inspect
W
ater pump for Air cooler Cooling - Disassemble and Inspect
5
6
7
9
8
10
11
4
3
2
1
PT
A
W spec
Corrosion, crack, flaw
Replace
Replace
Wear
, flaw
Corrosion, flaw
Rotation
Rotation
Disassembling Sequence
1
Water pump pulley
2
Snap ring
3
Cover
4
Impeller
5
Snap ring
6
Water pump shaft
7
Ball bearing
8
Spacer
9
Ball bearing
10
Unit seal
11
Water pump case (Approx 15 kg [33 lb])
