Mitsubishi S12A2 - Water Pump - Assemble

10-31
Chapter 10 COOLING SYSTEM
2.10 Water pump - Assemble

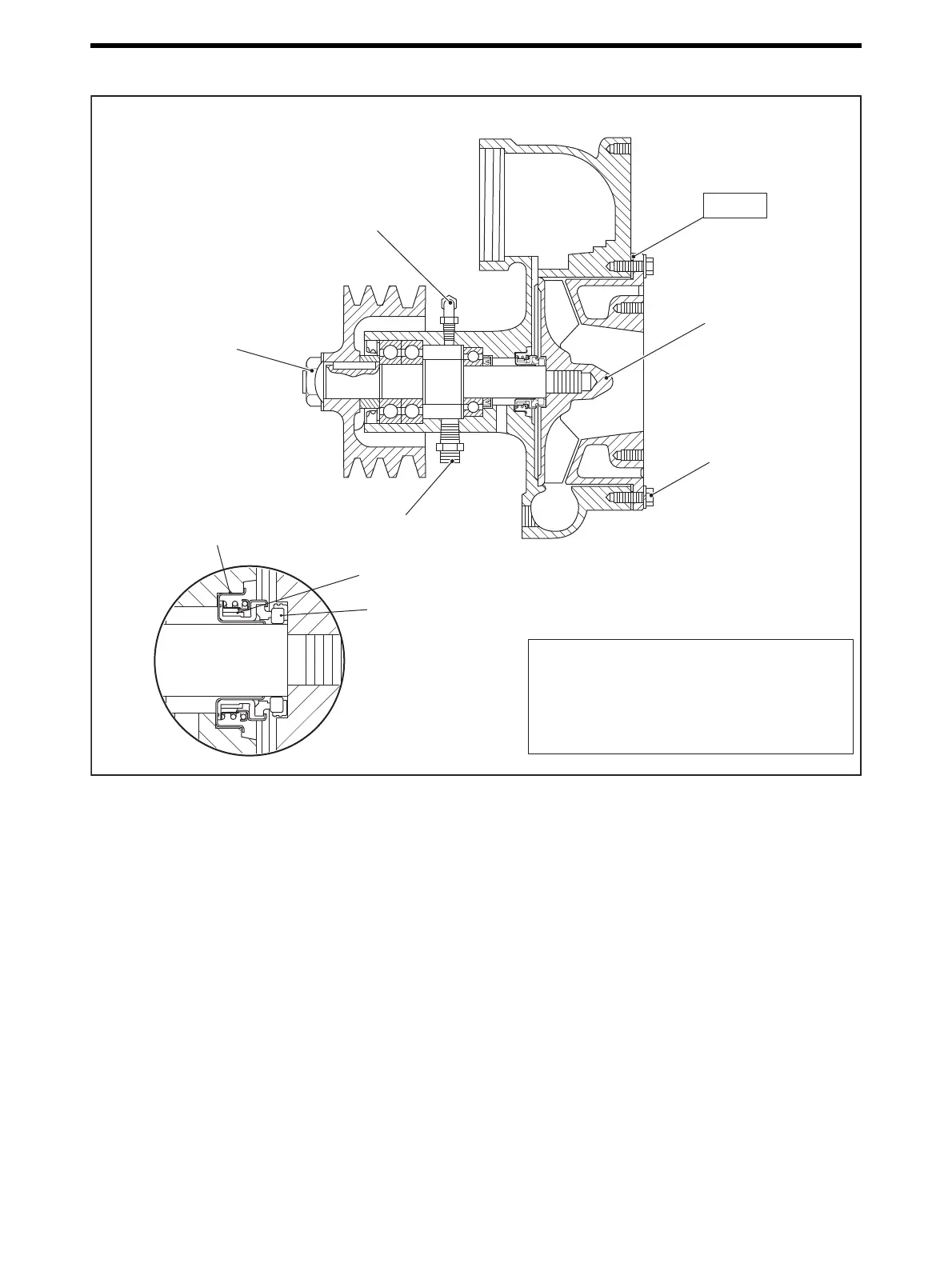

Water pump - Assemble
196 ± 29.6 N·m
{20 ± 3.0 kgf·m}
[144.6 ± 21.83 lbf·ft]
260 ± 12 N·m
{26 ± 1.2 kgf·m}
[191.8 ± 8.9 lbf·ft]
31.9 ± 2.5 N·m
{3.3 ± 0.3 kgf·m}
[23.53 ± 1.84 lbf·ft]
Replace
12.3 ± 2.5 N·m
{1.3 ± 0.3 kgf·m}
[9.07 ± 1.84 lbf·ft]
44 ± 4.9 N·m
{4.5 ± 0.5 kgf·m}
[32.5 ± 3.61 lbf·ft]
Unit seal (rotating side)
Unit seal (stationary side)
Apply sealant.
Apply LLC to the floating portion when
installing the unit seal (rotating side) into the ring.
Apply sealant (ThreeBond 1102) to
outer periphery of unit seal (stationary side).
Apply engine oil to the oil seal lip and
the balls of ball bearing.
