8-6
Chapter 8 FUEL SYSTEM
1.3

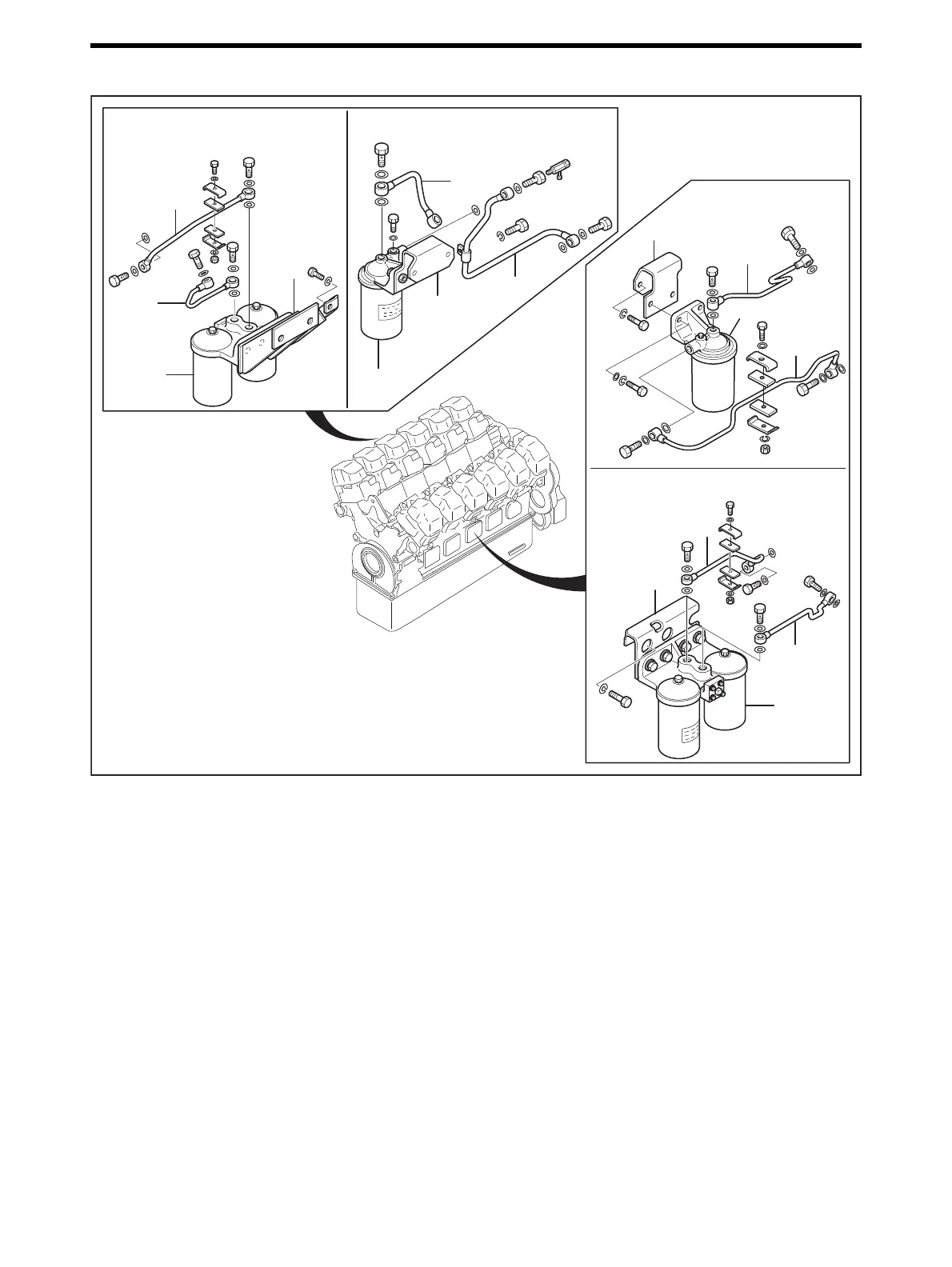

Fuel Filter and Fuel Pipe - Remove and Inspect
Fuel Filter and Fuel Pipe - Remove and Inspect
Change over type fuel filter spec
Standard fuel filter spec
Standard fuel filter
spec
1
2
5
6
1
2
5
6
3
4
6
5
3
4
6
5
Change over type fuel filter spec
Removing Sequence
1
Left fuel pipe
2
Left fuel pipe
3
Right fuel pipe
4
Right fuel pipe
5
Fuel filter assembly
6
Fuel filter bracket
177
179
