Chapter 10 COOLING SYSTEM
(7)

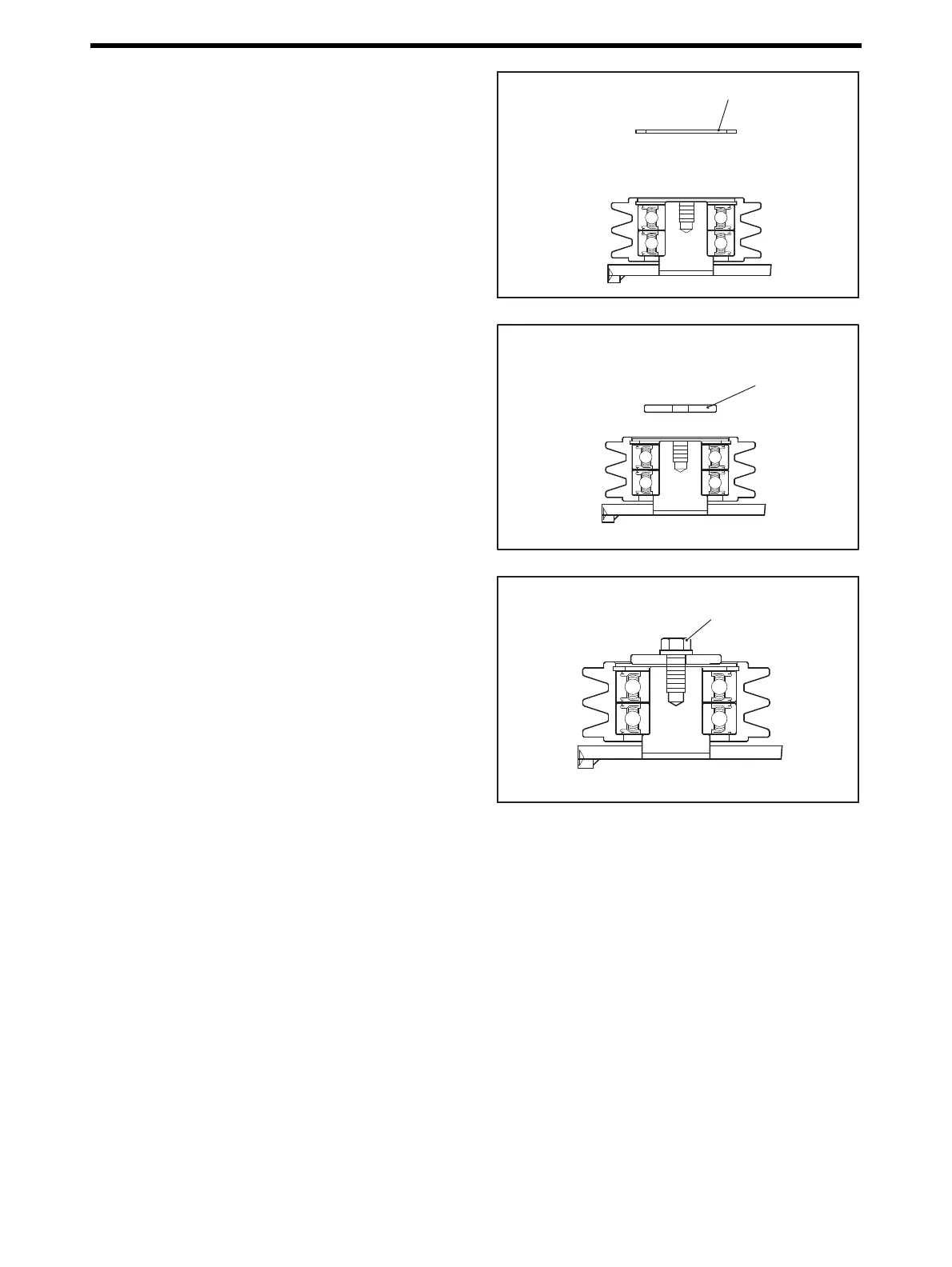

Fit the snap ring in the groove on the inner periphery of
the tension pulley
.
Snap Ring - Install
(8)
Install the thrust plate with bolt.
Thrust plate - Install
(9)
T
ighten the
bolt.
Note:
After assembly, confirm that the tension pulley rotates
smoothly.
Bolt - T
ighten
Snap ring
Thrust plate
Bolt
258
260
