Mitsubishi S12A2 User Manual

10-42
Chapter 10 COOLING SYSTEM

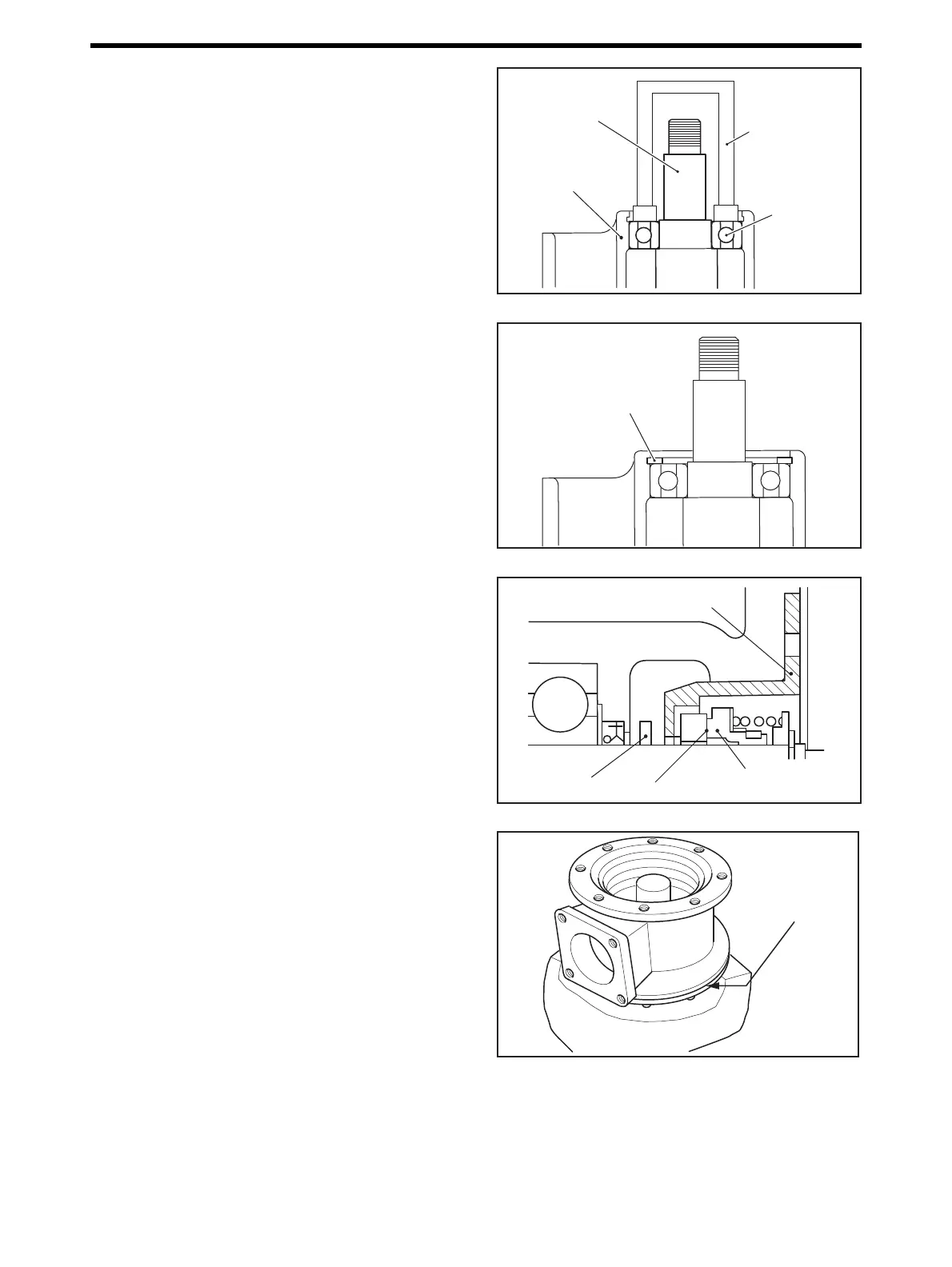

2.14.5 Shaft and Bearing - Install
(1) Press-fit the ball bearing to the water pump shaft with
the installer.
(2) Press-fit the ball bearing and water pump shaft to the
holder with the installer.
Shaft and Bearing - Install
2.14.6 Snap Ring - Install
Install the snap ring to the holder.
Snap Ring - Install
2.14.7 Bushing - Install
Install the slinger to the shaft.
Install the bushing and unit seal assembly to the holder.
Clean the seat side sliding face of the unit seal with ethyl
alcohol, and apply turbine oil.
Insert the shaft to the seat side, and fix it with the snap ring.
Bushing - Install
2.14.8 Case - Install
(1) Apply sealant (ThreeBond 1102) to the mating surfaces
of holder and case.
(2) Install the holder to the case, and tighten the bolts to the
specified torque.
Case - Install
Installer
Holder
Bearing
Shaft
Snap ring
Bush
Sliding part
Slinger
Unit seal
seat side
Application of
ThreeBond 1102
