7-26
Chapter 7 ASSEMBLY OF BASIC ENGINE
4.15 Pickup - Install
(Electronic governor spec)
(1) Turn the crankshaft to move the ring gear teeth top to
the center line of pickup installing hole.
(2) Insert the pickup into the hole slowly and carefully by
hand.
(3) When the tip of pickup contacts with the ring gear tooth
top, loosen the pickup to adjust the clearance to stan-
dard value.
(4) Fix the pickup with lock nut.

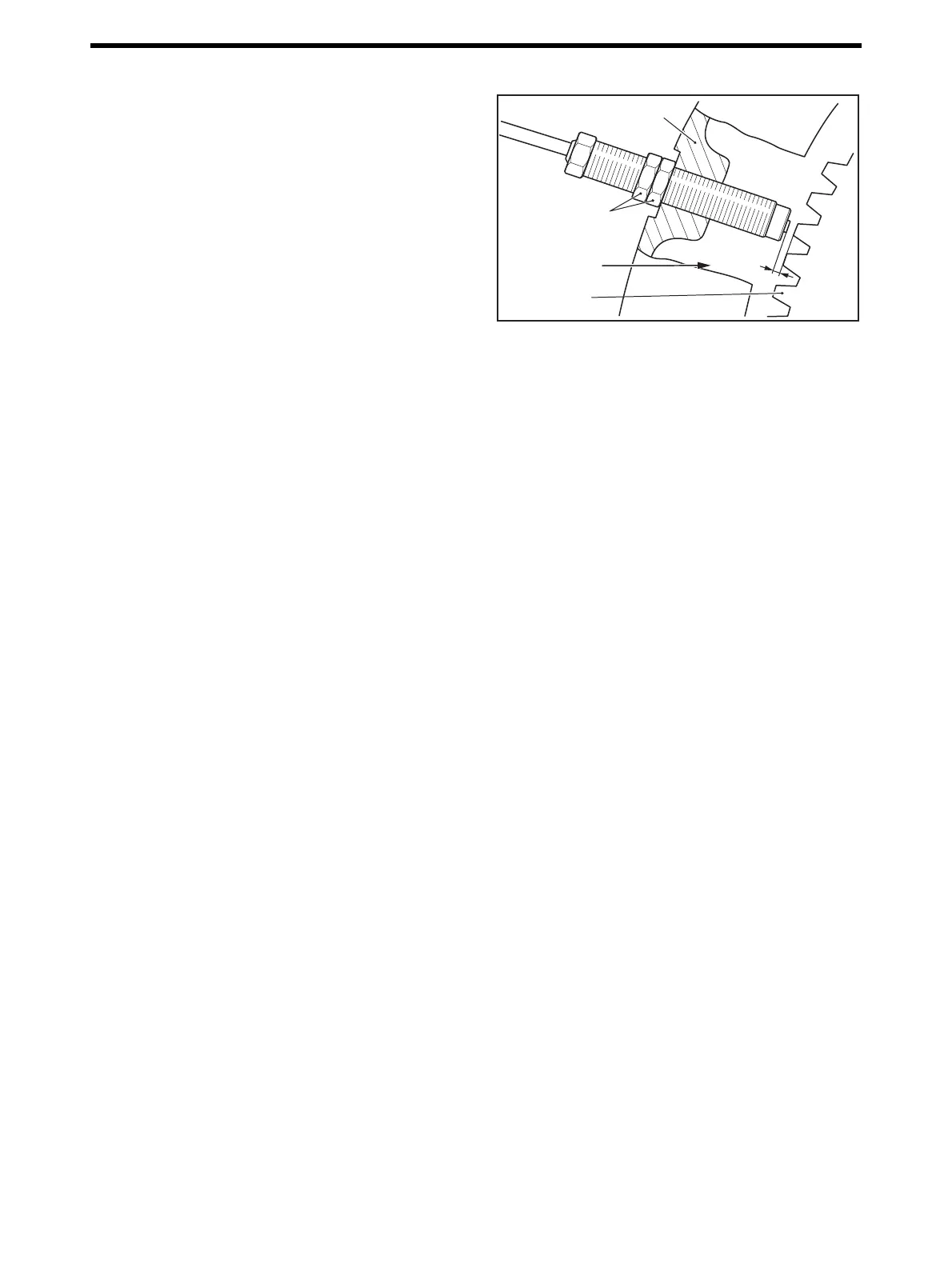

Pickup - Install
Approx 1.4 mm [0.06 in.]
Lock nut
Timing gear case
Ring gear
One back-turn after
bottoming end
Approx 1.4 mm [0.06 in.]
