9-6
Chapter 9 LUBR
ICATION SYSTEM

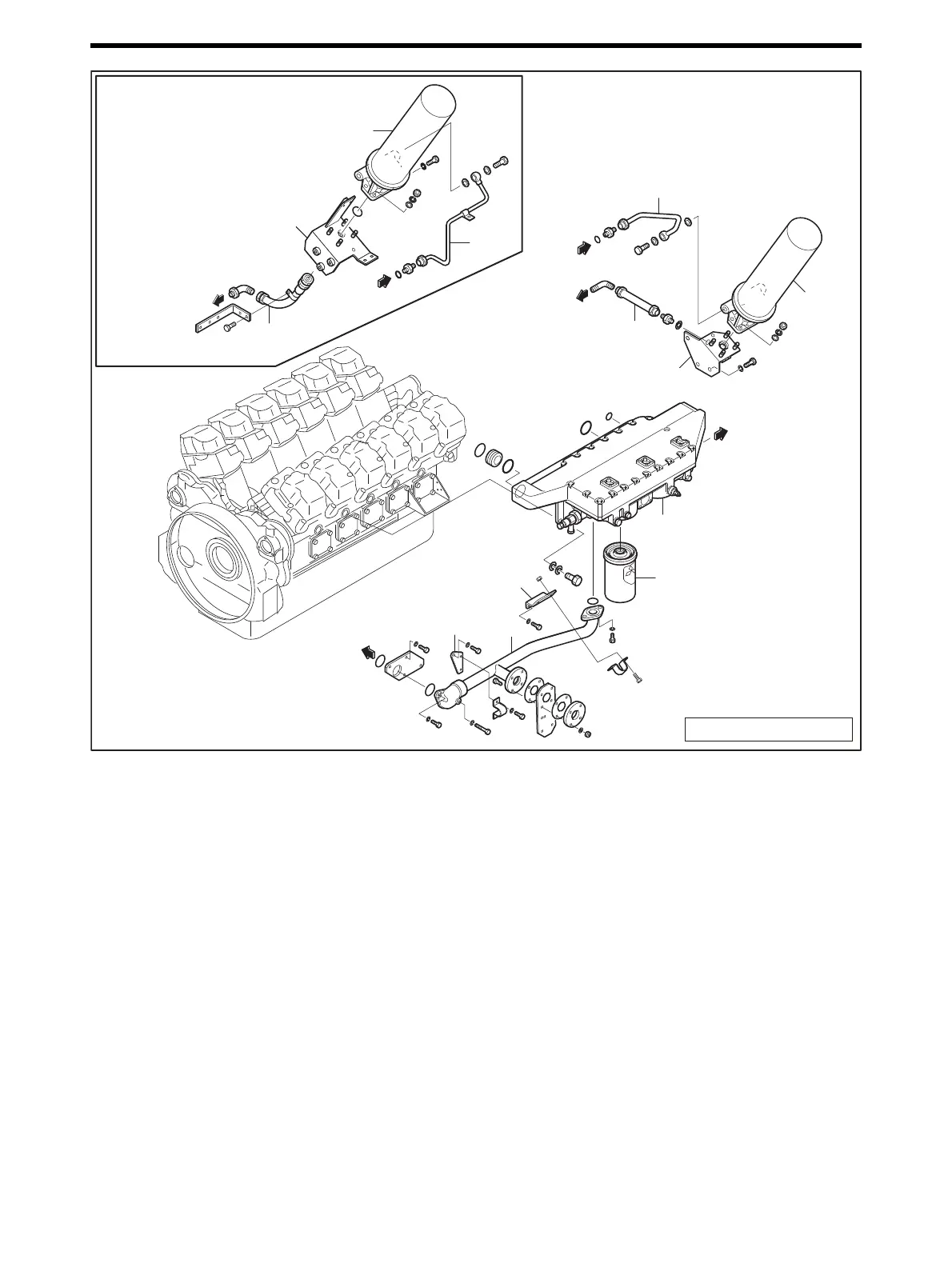

Oil Cooler and Oil Filter - Remove and Inspect
MPTA, MPTK spec
Crankcase
Front cover
A
A
2
5
6
9
7
4
1
3
8
Replace: Gasket, O-ring
MTK spec
A
3
8
7
9
Front cover
Removing Sequence
1
Oil fil
ter
2
Oil pipe
3
Oil pipe
4
Oil cooler
5
Stay
6
Stay
7
Oil pipe
8
Bypass oil filter assembly
9
Oil filter bracket
223
225
