• Charges the MC9190-G’s battery.
• Charges a spare battery.
Setup

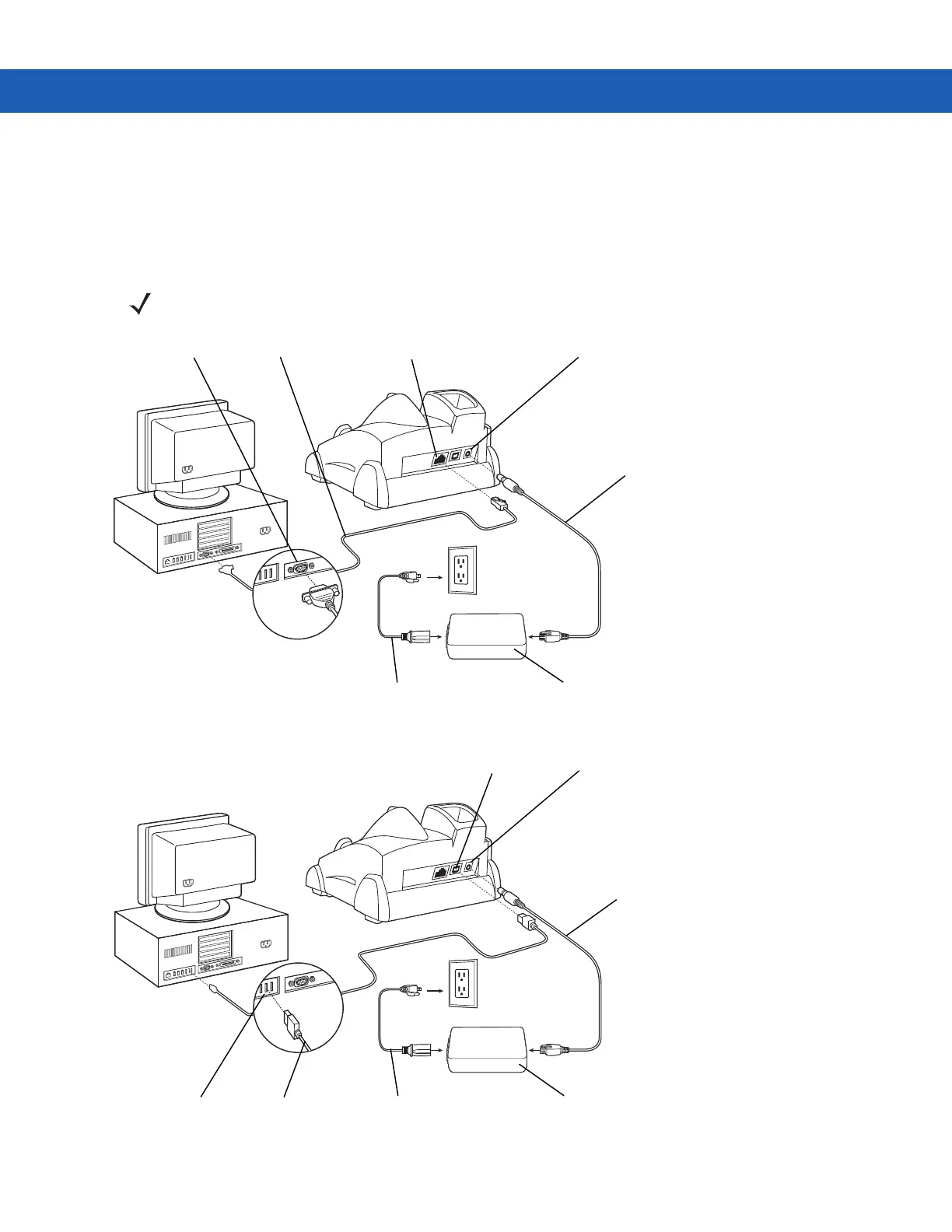

Figure 2-5 Single Slot Cradle Power/Serial Connections
Figure 2-6 Single Slot Cradle Power/USB Connections
NOTE The cradle requires a dedicated port on the host. Select either serial or USB for communications. Do not
connect the cradle to both serial and USB ports.
Serial Port
Serial Port
DC Cable
AC Line Cord
Power Supply
Power Port
Serial Cable
USB Cable
USB Port
USB Port
DC Cable
AC Line Cord
Power Supply
Power Port
